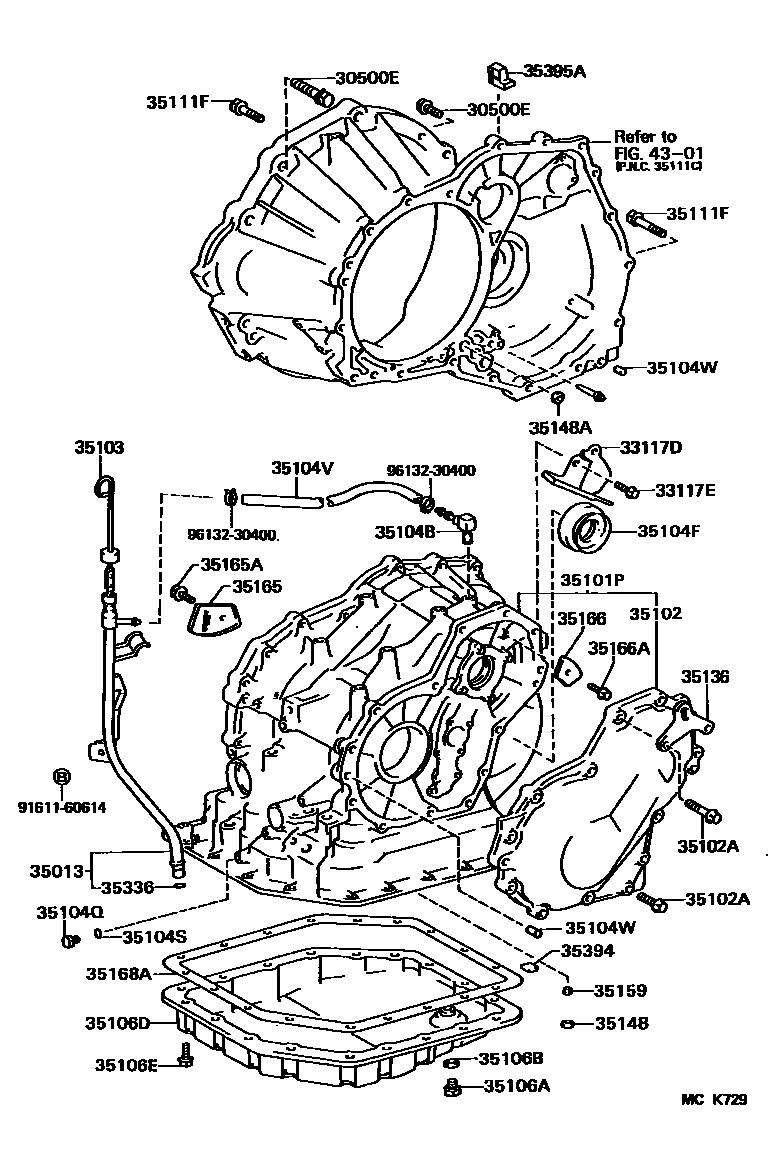

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10097iEXY10..ATM199003-199512

main90119-12168iEXY10..ATM199003-199512

main91612-41025iEXY10..ATM199507-199512

sub90119-10223

main91619-61245×2iEXY10..ATM199003-199512

main91621-60614×3iEXY10..ATM199003-199507

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iEXY10..ATM199003-199512

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iEXY10..ATM199003-199512

sub91641-H0820

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-18010iEXY10..ATM199003-199206

main35013-18020iEXY10..ATM199206-199512

35101PCASE & COVER SUB-ASSY, TRANSAXLE

main35101-10010iEXY10..ATM199003-199206

main35101-16020iEXY10..ATM199206-199302

main35101-16021iEXY10..ATM199302-199411

main35101-16022iEXY10..ATM199411-199512

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10030iEXY10..ATM199003-199206

main35102-16031iEXY10..ATM199206-199512

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08065×20iEXY10..ATM199003-199512

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-16220iEXY10..ATM199208-199512

main35103-18010iEXY10..ATM199003-199206

main35103-18020iEXY10..ATM199206-199208

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03101iEXY10..ATM199003-199512

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-34013iEXY10..ATM199003-199512

sub90311-34026

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iEXY10..ATM199003-199512

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iEXY10..ATM199003-199512

35104VHOSE (FOR BREATHER PLUG)

main90447-11016iEXY10..ATM199003-199512

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10007×2iEXY10..ATM199003-199307

HOUSING SIDE

main90250-10021×2iEXY10..ATM199307-199512

HOUSING SIDE

main90250-11001×2iEXY10..ATM199003-199512

RR COVER SIDE

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iEXY10..ATM199003-199512

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iEXY10..ATM199003-199512

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12070iEXY10..ATM199003-199512

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iEXY10..ATM199003-199512

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08066iEXY10..ATM199003-199512

main90105-08068×8iEXY10..ATM199003-199512

sub90105-08333

main90105-08071×2iEXY10..ATM199003-199512

35136HANGER, TRANSMISSION,NO.1

main35136-10030iEXY10..ATM199003-199206

sub35136-16020

main35136-16010iEXY10..ATM199206-199512

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iEXY10..ATM199003-199512

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010×3iEXY10..ATM199003-199512

35159GASKET, BRAKE DRUM

main35159-20010iEXY10..ATM199003-199512

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12010iEXY10..ATM199003-199512

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iEXY10..ATM199003-199512

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12010iEXY10..ATM199003-199512

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iEXY10..ATM199003-199512

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iEXY10..ATM199003-199512

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iEXY10..ATM199003-199512

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iEXY10..ATM199003-199212

35395ASTRAINER, GOVERNOR OIL

main35395-12020iEXY10..ATM199003-199512

4301

9161160614

main91611-60614

9613230400

main96132-30400

34 parts on this diagram · 1 diagram in section
