CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iEXY10..MTM199003-199205

sub04311-12080

main04311-12080iEXY10..MTM199205-199403

main04311-12110iEXY10..MTM199403-199512

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-10030iEXY10..MTM199003-199512

sub31402-16020

31410CYLINDER ASSY, CLUTCH MASTER

main31410-10030iEXY10..MTM199401-199512

sub31410-10050

main31410-18010iEXY10..MTM199003-199401

sub31410-10030

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iEXY10..MTM199003-199512

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iEXY10..MTM199003-199512

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iEXY10..MTM199003-199512

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-36010iEXY10..MTM199003-199512

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20090iEXY10..MTM199401-199512

main31451-35080iEXY10..MTM199003-199401

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-12020iEXY10..MTM199003-199401

main31453-10040iEXY10..MTM199401-199512

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iEXY10..MTM199202-199512

main31454-24010iEXY10..MTM199003-199202

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

9615102200

main96151-02200

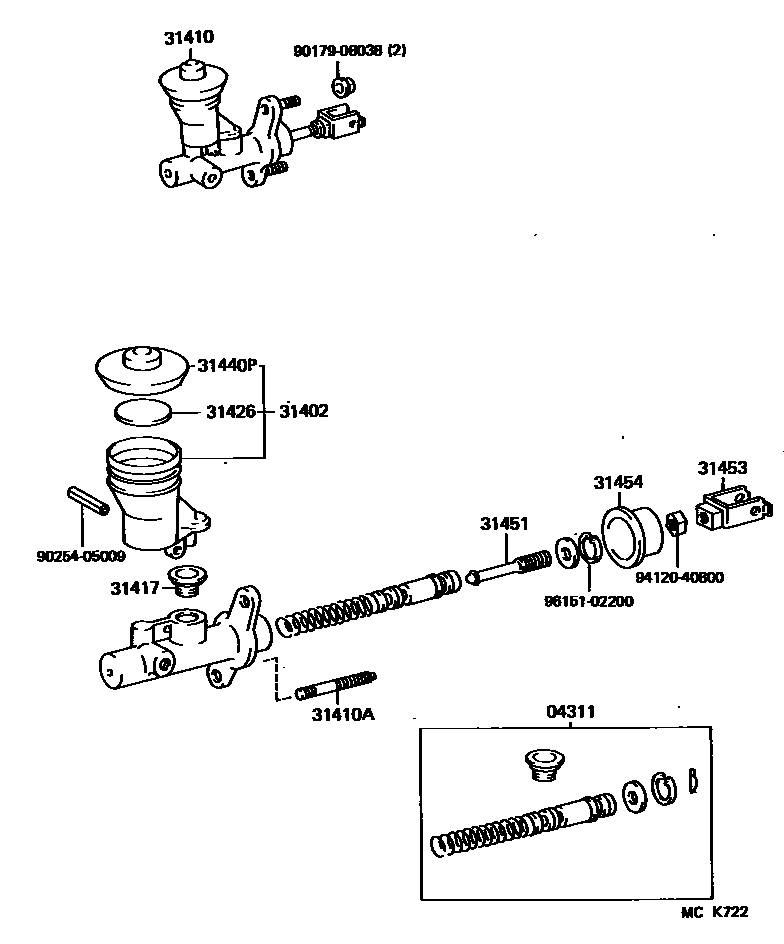

14 parts on this diagram · 1 diagram in section
