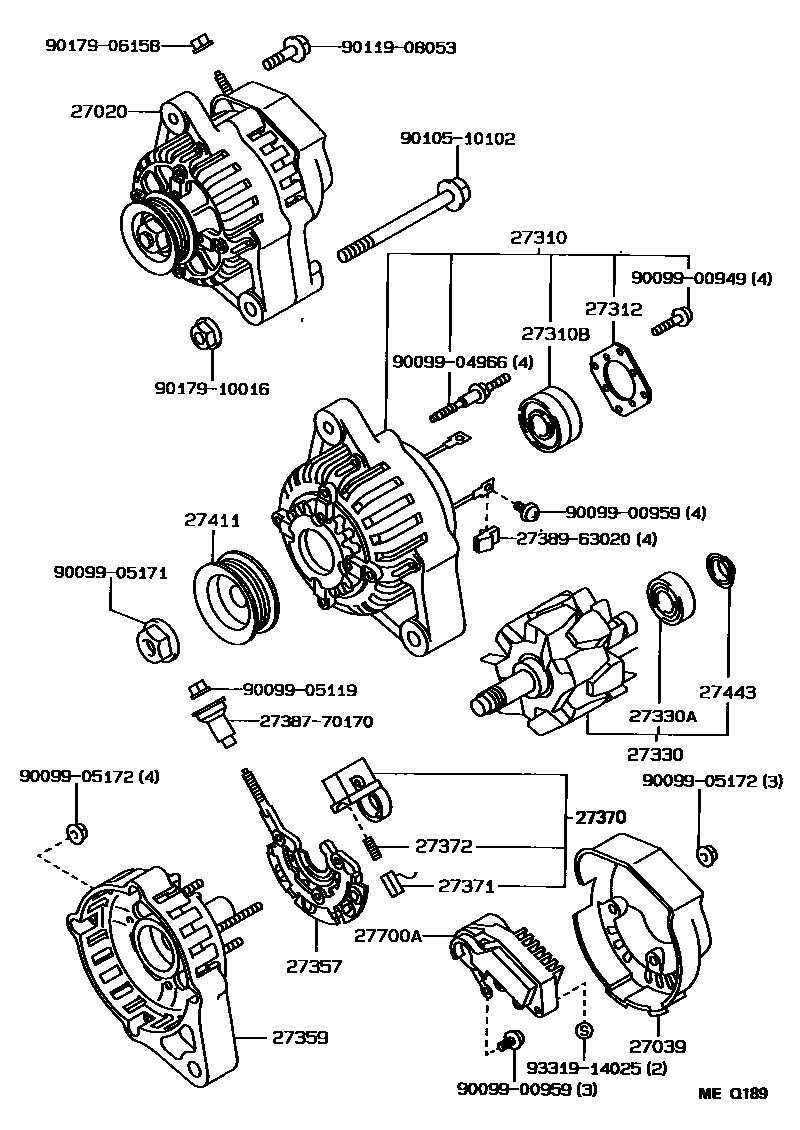

ALTERNATOR

0001 112V 70A 0002 112V 70A

27020ALTERNATOR ASSY

main27060-11030i5EFHE..EXY10..MTM199003-199106

sub27060-11120

main27060-11060i5EFHE..EXY10..ATM199003-199008

sub27060-11200

main27060-11120i5EFHE..EXY10..MTM199106-199206

sub27060-11200

main27060-11200i5EFHE..EXY10..ATM199008-199206

main27060-11270i5EFHE..EXY10..MTM199206-199512

main27060-11280i5EFHE..EXY10..ATM199206-199305

sub27060-11281

main27060-11281i5EFHE..EXY10..ATM199305-199512

27039COVER, ALTERNATOR REAR END

main27039-15170i5EFHE..EXY10..MTM199109-199512

sub27039-15171

main27039-42010i5EFHE..EXY10..ATM199003-199206

sub27039-16310

main27039-55080i5EFHE..EXY10..ATM199206-199512

sub27039-70470

main27039-72010i5EFHE..EXY10..MTM199003-199109

sub27039-15170

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16103i5EFHE..EXY10..MTM199003-199512

main27310-16270i5EFHE..EXY10..ATM199006-199512

main27310-42010i5EFHE..EXY10..ATM199003-199006

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10160i5EFHE..EXY10..ATM199003-199105

sub90099-10219

main90099-10178i5EFHE..EXY10..MTM199003-199512

main90099-10192i5EFHE..EXY10..ATM199105-199512

27312PLATE, RETAINER

main27312-42010i5EFHE..EXY10..ATM199003-199512

main27312-70200i5EFHE..EXY10..MTM199003-199512

27330ROTOR ASSY, ALTERNATOR

main27330-42010i5EFHE..EXY10..ATM199003-199008

sub27330-76030

main27330-72101i5EFHE..EXY10..MTM199003-199512

main27330-76030i5EFHE..EXY10..ATM199008-199512

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i5EFHE..EXY10199003-199512

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-62040i5EFHE..EXY10..ATM199008-199512

sub27357-74160

main27357-63020i5EFHE..EXY10..MTM199003-199512

main27357-74050i5EFHE..EXY10..ATM199003-199008

sub27357-74160

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16180i5EFHE..EXY10..MTM199003-199512

sub27359-16181

sub27384-16380

main27359-16270i5EFHE..EXY10..ATM199006-199512

main27359-42010i5EFHE..EXY10..ATM199003-199006

sub27359-74330

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i5EFHE..EXY10..MTM199003-199105

sub27370-54450

main27370-42010i5EFHE..EXY10..ATM199003-199105

sub27370-75060

main27370-54450i5EFHE..EXY10..MTM199105-199512

sub27370-58320

main27370-75060i5EFHE..EXY10..ATM199105-199512

27371BRUSH, ALTERNATOR

main27371-63020i5EFHE..EXY10..MTM199003-199105

sub27371-70300

main27371-70300i5EFHE..EXY10..MTM199105-199512

27372SPRING, ALTERNATOR BRUSH

main27372-63020i5EFHE..EXY10..MTM199003-199512

sub27372-87501

27411PULLEY, ALTERNATOR

main27411-11060i5EFHE..EXY10..ATM199003-199512

main27411-65010i5EFHE..EXY10..MTM199003-199512

27443COVER, ALTERNATOR BEARING

main27443-63020i5EFHE..EXY10199003-199512

27700AREGULATOR ASSY, GENERATOR

main27700-11030i5EFHE..EXY10..ATM199008-199206

sub27700-72090

main27700-11070i5EFHE..EXY10199206-199512

main27700-70030i5EFHE..EXY10..MTM199003-199106

main27700-74030i5EFHE..EXY10..ATM199305-199512

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510102

main90105-10102

9011908053

main90119-08053

9017906158

main90179-06158

9017910016

main90179-10016

9331914025

main93319-14025

28 parts on this diagram · 2 diagrams in section
