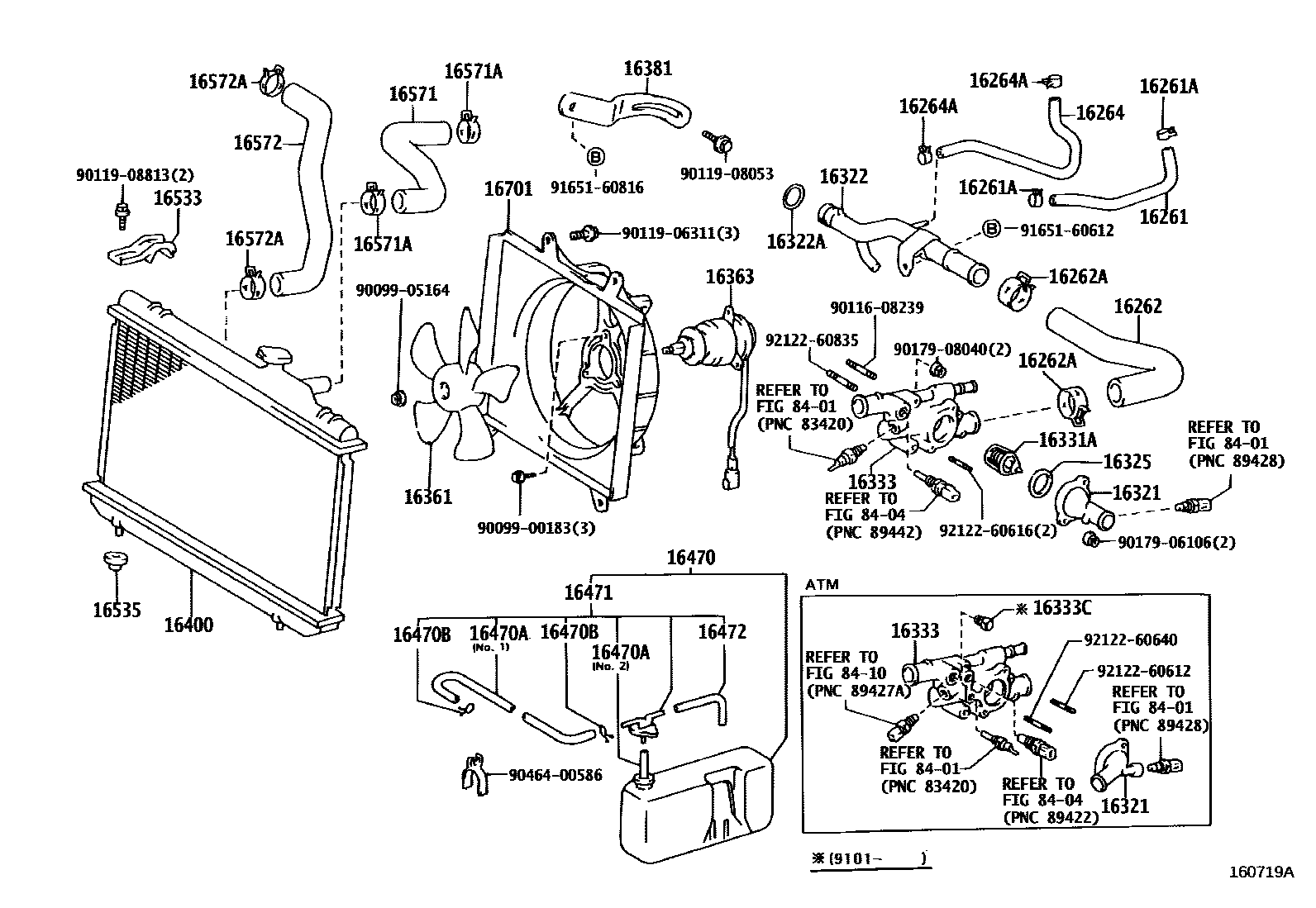

RADIATOR & WATER OUTLET

0001 1 0002 1

16261HOSE, WATER BY-PASS

main16261-11030i5EFHE..EXY10199003-199512

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-11009i5EFHE..EXY10199003-199512

sub96135-51100

16262HOSE, WATER INLET

main16262-10010i5EFHE..EXY10..MTM199003-199410

sub16262-10011

main16262-10020i5EFHE..EXY10..ATM199003-199410

sub16262-10022

main16262-10030i5EFHE..EXY10..MTM199410-199512

main16262-10040i5EFHE..EXY10..ATM199410-199512

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i5EFHE..EXY10199003-199512

sub90467-34004

16264HOSE, WATER BY-PASS, NO.2

main16264-11050i5EFHE..EXY10199003-199407

main16264-11051i5EFHE..EXY10199407-199512

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i5EFHE..EXY10199003-199512

sub96135-51100

16321INLET, WATER

main16321-10011i5EFHE..EXY10..MTM199003-199512

main16321-11011i5EFHE..EXY10..ATM199003-199512

16322PIPE, WATER INLET

main16322-11160i5EFHE..EXY10199003-199201

sub16322-11161

main16322-11161i5EFHE..EXY10199201-199407

main16322-11162i5EFHE..EXY10199407-199512

16322ARING, O(FOR WATER INLET)

main96711-35028i5EFHE..EXY10199003-199503

sub96761-35028

main96761-35028i5EFHE..EXY10199503-199512

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i5EFHE..EXY10199003-199301

sub16325-63011

main16325-63011i5EFHE..EXY10199301-199512

16331ATHERMOSTAT

main90916-03046i5EFHE..EXY10199003-199512

16333HOUSING, WATER OUTLET

main16303-11180i5EFHE..EXY10..MTM199003-199101

sub16333-11120

main16303-11190i5EFHE..EXY10..ATM199003-199101

sub16333-11130

main16333-11120i5EFHE..EXY10..MTM199101-199512

main16333-11180i5EFHE..EXY10..ATM199101-199512

16333CPLUG, W/HEAD TAPER SCREW

main90345-53007i5EFHE..EXY10..ATM199101-199512

16361FAN

main16361-64020i5EFHE..EXY10199003-199512

16363MOTOR, COOLING FAN

main16363-74030i5EFHE..EXY10199003-199512

16381BAR, FAN BELT ADJUSTING

main16381-11030i5EFHE..EXY10199003-199512

16400RADIATOR ASSY

main16400-11400i5EFHE..EXY10..ATM199003-199512

main16400-11410i5EFHE..EXY10..MTM199003-199512

sub16400-1B030

16470TANK ASSY, RADIATOR RESERVE

main16470-11040i5EFHE..EXY10199003-199512

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-11040i5EFHE..EXY10199003-199512

main90445-12078i5EFHE..EXY10199003-199512

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i5EFHE..EXY10199003-199512

16471CAP SUB-ASSY, RESERVE TANK

main16405-11040i5EFHE..EXY10199003-199512

16472HOSE, BREATHER

main85338-35060i5EFHE..EXY10199003-199512

16533SUPPORT, RADIATOR, UPPER

main16505-11110i5EFHE..EXY10..MTM199003-199512

main16505-11120i5EFHE..EXY10..ATM199003-199512

16535SUPPORT, RADIATOR, LOWER

main16535-11020i5EFHE..EXY10..MTM199003-199512

main16535-63021i5EFHE..EXY10..ATM199003-199512

16571HOSE, RADIATOR, INLET

main16571-11100i5EFHE..EXY10199003-199512

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003i5EFHE..EXY10199003-199512

16572HOSE, RADIATOR, OUTLET

main16572-11180i5EFHE..EXY10..MTM199003-199512

main16572-11190i5EFHE..EXY10..ATM199003-199512

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i5EFHE..EXY10199003-199512

16701SHROUD SUB-ASSY, FAN

main16711-11220i5EFHE..EXY10199003-199512

8401

8404

8410

9009900183

main90099-00183

9009905164

main90099-05164

9011608239

main90116-08239

9011906311

main90119-06311

9011908053

main90119-08053

9011908813

main90119-08813

9017906106

main90179-06106

9017908040

main90179-08040

9046400586

main90464-00586

9165160612

main91651-60612

9165160816

main91651-60816

9212260612

main92122-60612

9212260616

main92122-60616

9212260640

main92122-60640

9212260835

main92122-60835
