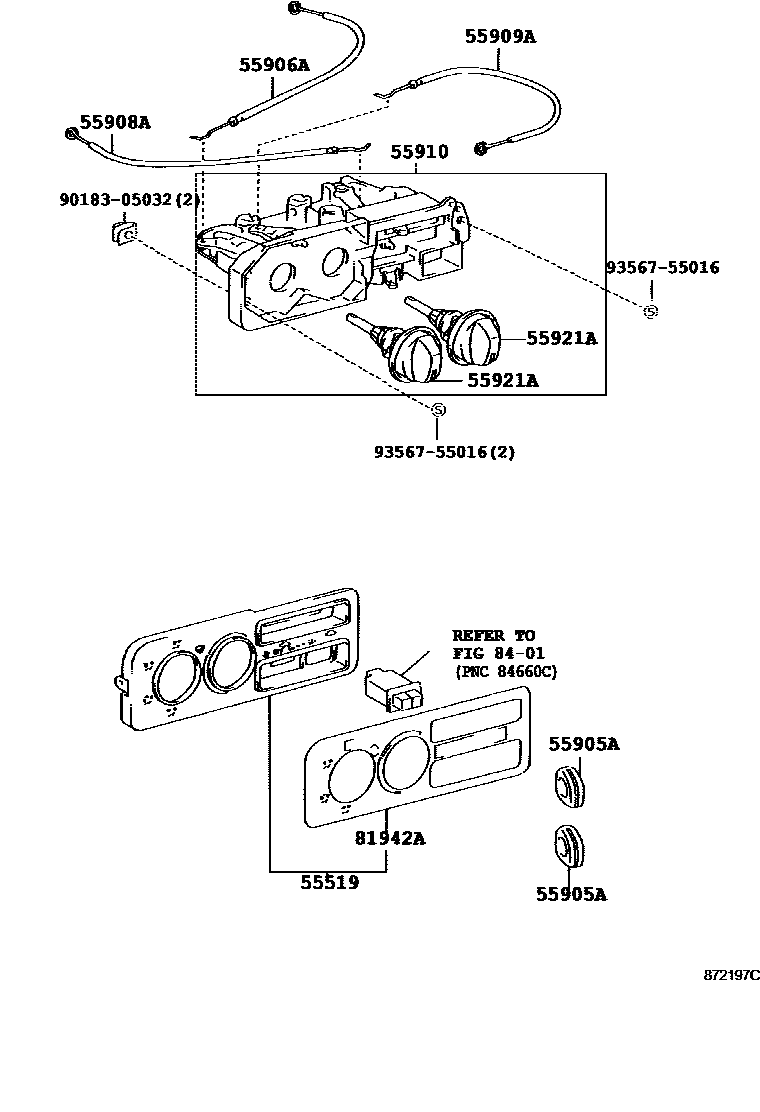

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1LEVER TYPE 0002 1PUSH TYPE 0003 1AIR DUCT

55519PLATE, HEATER CONTROL NAME

main55519-16090iEP9#,NP90199601-199712

main55519-16220iEP9#,NP90..GLZS,RFL,RFLF199712

main55519-16230iEP9#..GLZS,RFLF199712

55905AKNOB, HEATER CONTROL

main55905-20380×2iEP9#..GLZS,GLZV,RFLX199601-199704

main55905-89115×2iEP9#,NP90199601

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-16120iEP9#,NP90199601

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-16120iEP9#,NP90199601

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-16130iEP9#,NP90199601

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-10510-E0iEP9#..REMIX199810-199907

ORANGE,TRIM1#

main55910-16270iEP9#,NP90199601-199712

main55910-16310iEP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199712-199907

55921ARETAINER, HEATER CONTROL

main55921-10040×2iEP9#,NP90199601-199712

main55921-10060-E0×2iEP9#..REMIX199810-199907

ORANGE,TRIM1#

main55921-16010×2iEP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199712-199907

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-16260iEP9#,NP90199601-199708

main81942-16261iEP9#,NP90199708-199712

main81942-16310iEP9#..REMIX199810

8401

9018305032

main90183-05032

9356755016

main93567-55016

11 parts on this diagram · 3 diagrams in section
