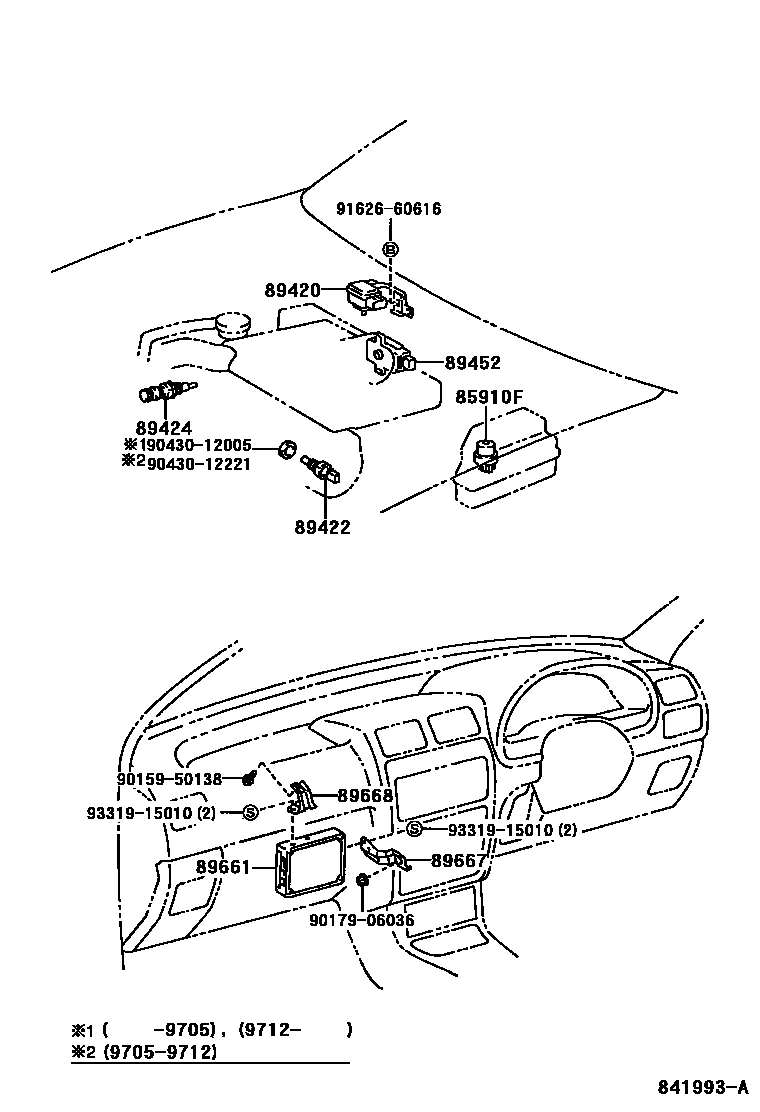

ELECTRONIC FUEL INJECTION SYSTEM

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012×2iEP9#199601

89420SENSOR ASSY, VACUUM

main89420-10110iEP91..GLZV199601

main89420-16050iEP9#..CARAT,GLZS,RFL,RFLF,RFLX199601-199712

main89420-16080iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199712

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iEP9#199705

main89422-22030iEP9#199705

main89422-35010iEP9#199601-199705

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

main89424-24010iEP91..GLZV199601

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10040iEP9#..CARAT,GLZS,RFL,RFLF,RFLX199702-199807

main89452-16020iEP91..5F..GLZV199601

main89452-20130iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199807

main89452-22090iEP91..4FC..GLZV199601

89661COMPUTER, ENGINE CONTROL

main89661-10160iEP9#..CARAT,GLZS,RFL,RFLF,RFLX199606-199712

main89661-10170iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199712

main89661-10190iEP95;EP91..(3FC,4F,5F)..(GLZS,RFL,RFLF,RFLX)199602-199606

main89661-10200iEP91..5F..GLZV199601

main89661-10210iEP91..4FC..GLZV199601

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-16050iEP9#199601

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-10060iEP9#..CARAT,GLZS,RFL,RFLF,RFLX199601-199712

main89668-16040iEP91..GLZV199601-199712

main89668-16110iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199712

main89668-16120iEP91..GLZV199712

9015950138

main90159-50138

9017906036

main90179-06036

9043012005

main90430-12005

9043012221

main90430-12221

9162660616

main91626-60616

9331915010

main93319-15010

14 parts on this diagram · 1 diagram in section
