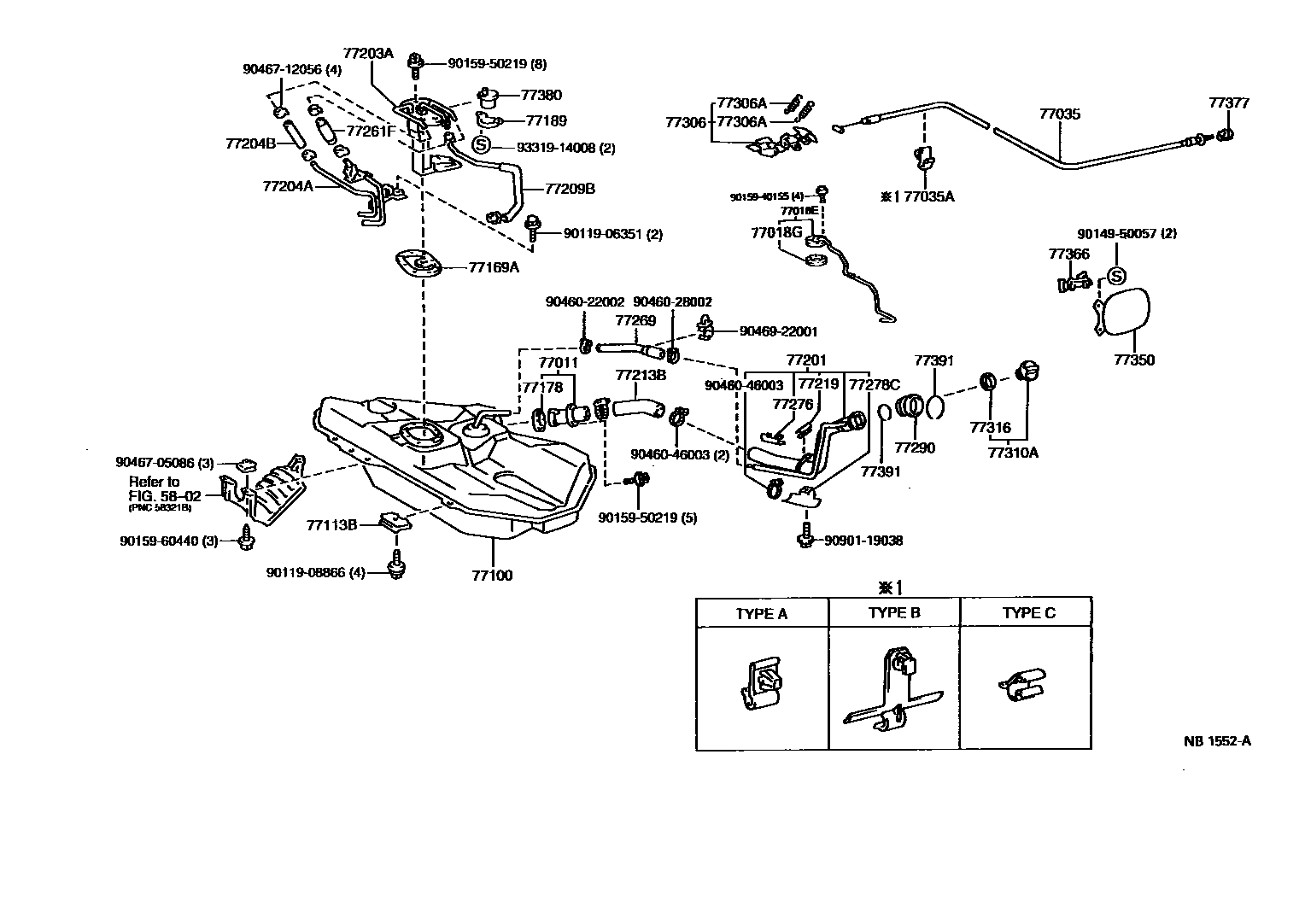

FUEL TANK & TUBE
5802
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018GGASKET, FUEL TANK EVAP/VENT TUBE
sub77179-26011
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)
77100TANK ASSY, FUEL
77113BPLATE, FUEL TANK SIDE
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77189RETAINER, FUEL CHECK VALVE
77204ATUBE, FUEL TANK RETURN
77209BTUBE SUB-ASSY, FUEL PUMP
77261FHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77269TUBE, FUEL CONNECTING
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
9011906351
main90119-06351
9011908866
main90119-08866
9014950057
main90149-50057
9015940155
main90159-40155
9015950219
main90159-50219
9015960440
main90159-60440
9046022002
main90460-22002
9046028002
main90460-28002
9046046003
main90460-46003
9046705086
main90467-05086
9046712056
main90467-12056
9046922001
main90469-22001
9090119038
main90901-19038
9331914008
main93319-14008
46 parts on this diagram · 7 diagrams in section
