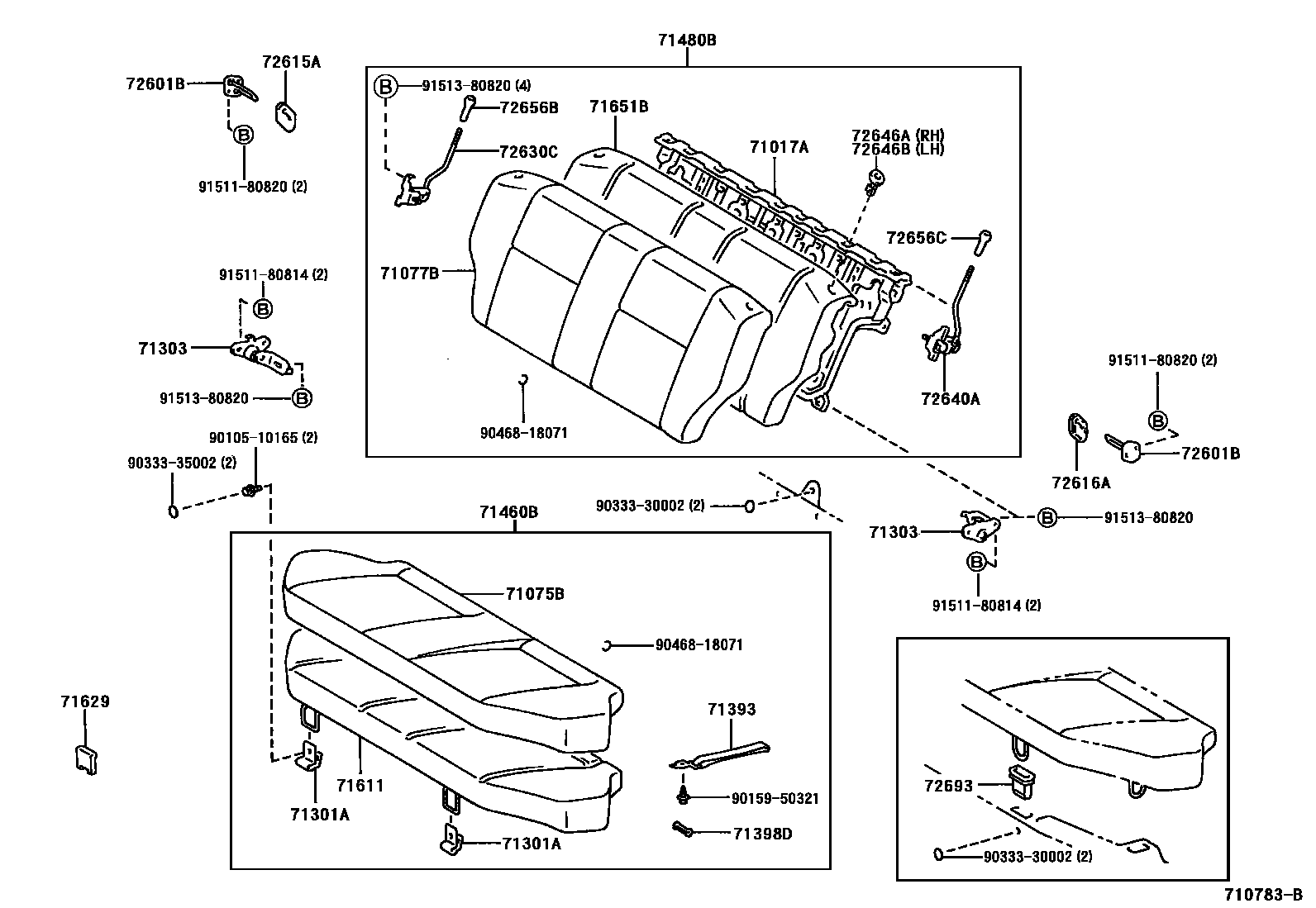

REAR SEAT & SEAT TRACK

0001 1 0003 1

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-10090iEP9#..RFLX199704-199712

main71017-10100iEP9#..5D..RFLX199712

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-10070iEP9#,NP90199601-199712

main71017-10110iEP91..5F..GLZV;EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF199712

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-10700-B0iEP91,NP90..3D..RFL199601-199712

main71065-10710-B0iEP91,NP90..5D..RFL199601-199712

BLUISH GRAY,TRIM1#

main71065-10720-B0iEP91,NP90..3D..RFL199601-199712

main71065-10730-B0iEP91,NP90..5D..RFL199601-199712

main71065-10740-B0iEP91..3D..RFLF199601-199712

BLUISH GRAY,TRIM1#

main71065-10750-B0iEP91..5D..RFLF199601-199712

BLUISH GRAY,TRIM1#

main71065-10760-B0iEP95..3D..RFLF199601-199712

BLUISH GRAY,TRIM1#

main71065-10770-B0iEP95..5D..RFLF199601-199712

BLUISH GRAY,TRIM1#

main71065-10780-B0iEP91..3D..RFLX199601-199712

BLUISH GRAY,TRIM1#

main71065-10790-B0iEP91..5D..RFLX199601-199712

BLUISH GRAY,TRIM1#

main71065-10800-B0iEP95..3D..RFLX199601-199712

BLUISH GRAY,TRIM1#

main71065-10810-B0iEP95..5D..RFLX199601-199712

BLUISH GRAY,TRIM1#

main71065-10820-B0iEP91..GLZS,GLZV199601-199704

BLUISH GRAY,TRIM1#

sub71065-10821

main71065-10820-B1iEP91..GLZS199612-199704

sub71065-10821

main71065-10821-B0iEP91..GLZS,GLZV199704-199712

BLUISH GRAY,TRIM1#

main71065-10830-B0iEP91..GLZS,GLZV199601-199712

sub71065-10830

main71065-10830-B1iEP91..GLZS,GLZV199712-199907

sub71065-10830

main71075-1C020-B0iEP91..5F..GLZV199601-199712

main71075-1C050-B0iEP91..CARAT199704-199712

BLUISH GRAY,TRIM1#

sub71075-1C050

main71075-1C050-B1iEP91..5D..CARAT199712-199907

BLUISH GRAY,TRIM1#

sub71075-1C050

main71075-1C060-B0iEP95..CARAT199704-199712

BLUISH GRAY,TRIM1#

sub71075-1C060

main71075-1C060-B1iEP95..5D..CARAT199712-199907

BLUISH GRAY,TRIM1#

sub71075-1C060

main71075-1C070-B0iEP91,NP90..3D..RFL199712-199907

BLUISH GRAY,TRIM1#

main71075-1C070-B0iEP91,NP90..3D..RFL199712-199907

main71075-1C080-B0iEP91,NP90..5D..RFL199712-199907

BLUISH GRAY,TRIM1#

main71075-1C090-B0iEP91,NP90..3D..RFL199712-199907

main71075-1C100-B0iEP91,NP90..5D..RFL199712-199907

main71075-1C110-B0iEP91..3D..RFLF199712-199907

BLUISH GRAY,TRIM1#

main71075-1C120-B0iEP91..5D..RFLF199712-199907

BLUISH GRAY,TRIM1#

main71075-1C130-B0iEP95..3D..RFLF199712-199907

BLUISH GRAY,TRIM1#

main71075-1C140-B0iEP95..5D..RFLF199712-199907

BLUISH GRAY,TRIM1#

main71075-1C150-B0iEP91..3D..RFLX199712-199907

BLUISH GRAY,TRIM1#

main71075-1C160-B0iEP91..5D..RFLX199712-199907

BLUISH GRAY,TRIM1#

main71075-1C170-B0iEP95..3D..RFLX199712-199907

BLUISH GRAY,TRIM1#

main71075-1C180-B0iEP95..5D..RFLX199712-199907

BLUISH GRAY,TRIM1#

main71075-1C190-B0iEP91..GLZS,GLZV199712-199907

BLUISH GRAY,TRIM1#

main71075-1C310-B0iEP91..3D..CARAT199712-199907

BLUISH GRAY,TRIM1#

main71075-1C320-B0iEP95..3D..CARAT199712-199907

BLUISH GRAY,TRIM1#

main71075-1C370-B0iEP91..REMIX199810-199907

BLUISH GRAY,TRIM1#

main71075-1C390-B0iEP95..REMIX199810-199907

BLUISH GRAY,TRIM1#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-1C660-B0iEP91,NP90..RFL199601-199704

BLUISH GRAY,TRIM1#

main71077-1C661-B0iEP91,NP90..RFL199704-199712

BLUISH GRAY,TRIM1#

main71077-1C770-B0iEP9#..RFLF199601-199704

BLUISH GRAY,TRIM1#

main71077-1C771-B0iEP9#..RFLF199704-199712

BLUISH GRAY,TRIM1#

main71077-1C800-B1iEP9#..3D..RFLX199601-199704

BLUISH GRAY,TRIM1#

main71077-1C810-B0iEP9#..5D..RFLX199601-199704

BLUISH GRAY,TRIM1#

main71077-1C820-B0iEP91..GLZS,GLZV199601-199704

BLUISH GRAY,TRIM1#

main71077-1C820-B1iEP91..GLZS199612-199704

main71077-1C822-B0iEP91..GLZS,GLZV199704-199712

BLUISH GRAY,TRIM1#

main71077-1C830-B0iEP91..GLZS,GLZV199601-199704

main71077-1C831-B0iEP91..GLZS,GLZV199704-199712

main71077-1C850-B0iEP91..5F..GLZV199601-199704

main71077-1C851-B0iEP91..5F..GLZV199704-199712

main71077-1M031-B0iEP9#..CARAT199704-199712

BLUISH GRAY,TRIM1#

main71077-1M060-B0iNP90;EP91..(3FC,4F,5F)..(GLZV,RFL)199712-199907

BLUISH GRAY,TRIM1#

main71077-1M070-B0iEP9#..RFLF199712-199907

BLUISH GRAY,TRIM1#

main71077-1M100-B0iEP91..GLZS199712-199907

BLUISH GRAY,TRIM1#

main71077-1M220-B0iEP9#..CARAT199712-199907

BLUISH GRAY,TRIM1#

main71077-1M230-B0iEP91..GLZS199712-199907

main71077-1M260-B0iEP9#..REMIX199810-199907

BLUISH GRAY,TRIM1#

71301AHINGE SUB-ASSY, REAR SEAT CUSHION

main71326-10030iEP91,NP90..RFL199601

main71326-10040iEP91,NP90..RFL199601

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-10040iEP9#,NP90199601-199712

main71303-10040iEP9#..GLZV,RFLX199712

main71303-10050iEP91..5F..GLZV;EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF199712

71393BAND, REAR SEAT CUSHION

main71393-10010-B0iEP91,NP90..RFL199601-199907

BLUISH GRAY,TRIM1#

71398DGUIDE, REAR SEAT CUSHION SUPPORT

main71398-10010iEP91,NP90..RFL199601

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-1C040-B0iEP91..CARAT199704-199712

***,BLUISH GRAY,TRIM1#

sub71460-1C040

main71460-1C040-B1iEP91..5D..CARAT199712-199907

***,BLUISH GRAY,TRIM1#

sub71460-1C040

main71460-1C050-B0iEP95..CARAT199704-199712

***,BLUISH GRAY,TRIM1#

sub71460-1C050

main71460-1C050-B1iEP95..5D..CARAT199712-199907

***,BLUISH GRAY,TRIM1#

sub71460-1C050

main71460-1C060-B0iNP90..3D;EP91..3D..(3FC,4F,5F)..(GLZV,RFL)199712-199907

main71460-1C070-B0iEP91,NP90..5D..RFL199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C080-B0iEP91,NP90..3D..RFL199712-199907

main71460-1C090-B0iEP91,NP90..5D..RFL199712-199907

main71460-1C100-B0iEP91..3D..RFLF199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C110-B0iEP91..5D..RFLF199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C120-B0iEP95..3D..RFLF199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C130-B0iEP95..5D..RFLF199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C140-B0iEP91..3D..RFLX199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C150-B0iEP91..5D..RFLX199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C160-B0iEP95..3D..RFLX199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C170-B0iEP95..5D..RFLX199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C200-B0iEP91..GLZS,GLZV199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C320-B0iEP91..3D..CARAT199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C330-B0iEP95..3D..CARAT199712-199907

***,BLUISH GRAY,TRIM1#

main71460-1C380-B0iEP91..REMIX199810-199907

***,BLUISH GRAY,TRIM1#

main71460-1C400-B0iEP95..REMIX199810-199907

***,BLUISH GRAY,TRIM1#

main71560-10690-B0iEP91,NP90..3D..RFL199601-199712

***,BLUISH GRAY,TRIM1#

main71560-10700-B0iEP91,NP90..5D..RFL199601-199712

***,BLUISH GRAY,TRIM1#

main71560-10710-B0iEP91,NP90..3D..RFL199601-199712

main71560-10720-B0iEP91,NP90..5D..RFL199601-199712

main71560-10730-B0iEP91..3D..RFLF199601-199712

***,BLUISH GRAY,TRIM1#

main71560-10740-B0iEP91..5D..RFLF199601-199712

***,BLUISH GRAY,TRIM1#

main71560-10750-B0iEP95..3D..RFLF199601-199712

***,BLUISH GRAY,TRIM1#

main71560-10760-B0iEP95..5D..RFLF199601-199712

***,BLUISH GRAY,TRIM1#

main71560-10770-B0iEP91..3D..RFLX199601-199712

***,BLUISH GRAY,TRIM1#

main71560-10780-B0iEP91..5D..RFLX199601-199712

***,BLUISH GRAY,TRIM1#

main71560-10790-B0iEP95..3D..RFLX199601-199712

***,BLUISH GRAY,TRIM1#

main71560-10800-B0iEP95..5D..RFLX199601-199712

***,BLUISH GRAY,TRIM1#

main71560-10810-B0iEP91..GLZS,GLZV199601-199712

***,BLUISH GRAY,TRIM1#

main71560-10810-B1iEP91..GLZS199612-199704

main71560-10820-B0iEP91..GLZS,GLZV199601-199712

sub71560-10820

main71560-10820-B1iEP91..GLZS,GLZV199712-199907

sub71560-10820

main71560-10870-B0iEP91..5F..GLZV199601-199712

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-1C760-B0iEP91,NP90..RFL199601-199712

***,BLUISH GRAY,TRIM1#

main71480-1C770-B0iEP9#..RFLF199601-199712

***,BLUISH GRAY,TRIM1#

main71480-1C780-B1iEP9#..3D..RFLX199601-199704

***,BLUISH GRAY,TRIM1#

main71480-1C790-B0iEP9#..5D..RFLX199601-199704

***,BLUISH GRAY,TRIM1#

main71480-1C800-B0iEP91..GLZS,GLZV199601-199712

***,BLUISH GRAY,TRIM1#

main71480-1C800-B1iEP91..GLZS199612-199704

main71480-1C810-B0iEP91..GLZS,GLZV199601-199712

main71480-1C830-B0iEP91..5F..GLZV199601-199712

main71480-1C870-B0iEP9#..CARAT199704-199712

***,BLUISH GRAY,TRIM1#

main71480-1M060-B0iNP90;EP91..(3FC,4F,5F)..(GLZV,RFL)199712-199907

***,BLUISH GRAY,TRIM1#

main71480-1M070-B0iEP9#..RFLF199712-199907

***,BLUISH GRAY,TRIM1#

main71480-1M100-B0iEP9#..CARAT199712-199907

***,BLUISH GRAY,TRIM1#

main71480-1M110-B0iEP91..GLZS199712-199907

***,BLUISH GRAY,TRIM1#

main71480-1M240-B0iEP91..GLZS199712-199907

main71480-1M270-B0iEP9#..REMIX199810-199907

***,BLUISH GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71503-10050iEP91,NP90..3D199601

main71503-10060iEP91,NP90..5D199601

main71503-10070iEP91,NP90..3D..RFL199601

main71503-10080iEP91,NP90..5D..RFL199601

main71503-10090iEP95..3D199601

main71503-10100iEP95..5D199601

71629COVER, REAR SEAT CUSHION HINGE

main71629-10010-B0iEP91,NP90..RFL199601-199907

BLUISH GRAY,TRIM1#

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-10270iEP9#,NP90199601-199712

main71651-10300iEP91..5F..GLZV;EP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF199712

72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK

main72601-10030iEP9#,NP90199601-199712

sub72601-10050

main72601-10050iEP9#,NP90199712

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-10020-B0iEP95..RFLF,RFLX199601-199907

LT.BLUISH GRAY,TRIM1#

sub72615-10020

main72615-10020-B1iEP95..CARAT,REMIX199704-199907

BLUISH GRAY,TRIM1#

sub72615-10020

72616ACOVER, REAR SEATBACK LOCK STRIKER, LH

main72616-10020-B0iEP95..RFLF,RFLX199601-199907

LT.BLUISH GRAY,TRIM1#

sub72616-10020

main72616-10020-B1iEP95..CARAT,REMIX199704-199907

BLUISH GRAY,TRIM1#

sub72616-10020

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-10091iEP9#,NP90199704-199712

main72630-10100iEP9#,NP90199601-199703

main72630-10101iEP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF199703-199712

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-10081iEP9#..RFLX199704-199712

main72640-10090iEP9#,NP90199601-199703

main72640-10091iEP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF199703-199712

72646AGROMMET, REAR SEATBACK STOP BUTTON

main72646-10020-B0iEP9#..GLZS,GLZV,REMIX199704-199907

BLUISH GRAY,TRIM1#

main72646-10020-B1iEP91..5F..GLZV;EP9#,NP90..CARAT,RFL,RFLF,RFLX199704-199907

LT.BLUISH GRAY,TRIM1#

72646BGROMMET, REAR SEATBACK STOP BUTTON

main72646-10020-B0iEP9#..GLZS,GLZV,REMIX199704-199907

BLUISH GRAY,TRIM1#

main72646-10020-B1iEP91..5F..GLZV;EP9#,NP90..CARAT,RFL,RFLF,RFLX199704-199907

LT.BLUISH GRAY,TRIM1#

72656BBUTTON, REAR SEATBACK STOP RELEASE

main72656-20010-B1iEP9#..GLZS,GLZV,REMIX199601-199907

BLUISH GRAY,TRIM1#

sub72656-20010

main72656-20010-B2iEP91..5F..GLZV;EP9#,NP90..CARAT,RFL,RFLF,RFLX199601-199907

LT.BLUISH GRAY,TRIM1#

sub72656-20010

72656CBUTTON, REAR SEATBACK STOP RELEASE

main72656-20010-B1iEP9#..GLZS,GLZV,REMIX199601-199907

BLUISH GRAY,TRIM1#

sub72656-20010

main72656-20010-B2iEP91..5F..GLZV;EP9#,NP90..CARAT,RFL,RFLF,RFLX199601-199907

LT.BLUISH GRAY,TRIM1#

sub72656-20010

72693HOOK, REAR SEAT CUSHION LOCK

main72693-10040iEP9#,NP90199601

9010510165

main90105-10165

9015950321

main90159-50321

9033330002

main90333-30002

9033335002

main90333-35002

9046818071

main90468-18071

9151180814

main91511-80814

9151180820

main91511-80820

9151380820

main91513-80820

31 parts on this diagram · 2 diagrams in section
