FRONT SEAT & SEAT TRACK

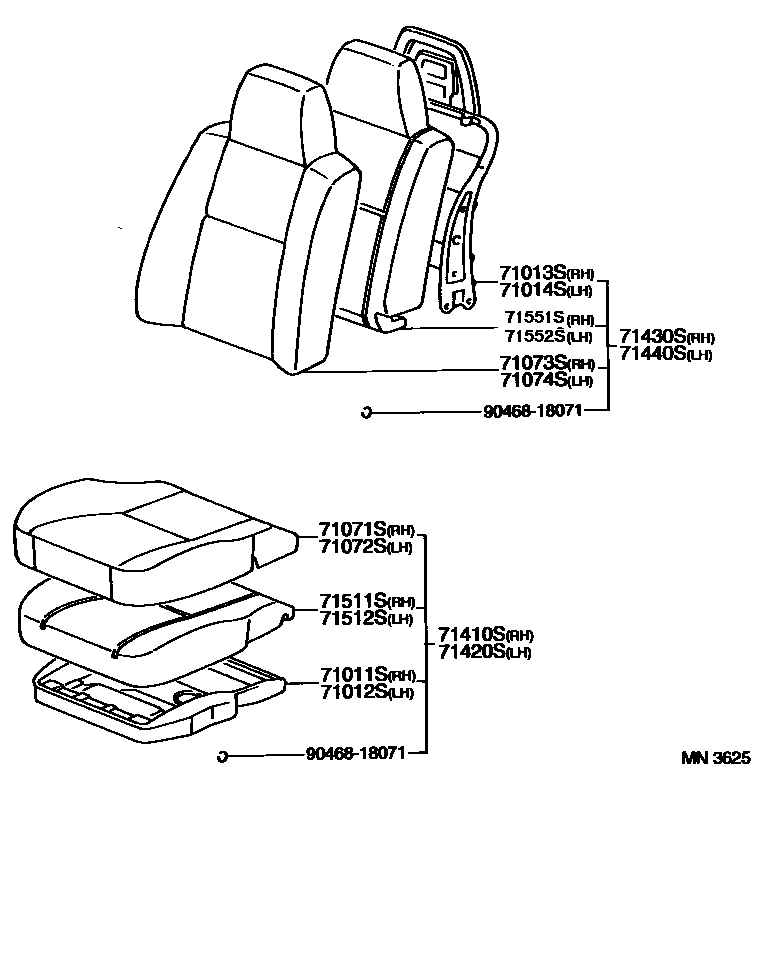

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-10220i199601-199712
main71011-10220i199601
main71011-10230i199601-199712
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-10220i199601-199712
main71011-10230i199712
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-10210i199601-199712
main71013-10220i199601-199712
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71013-10210i199601-199712
main71013-10220i199601-199712
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1C500-B0i199601-199712
BLUISH GRAY,TRIM1#
main71071-1C530-B0i199601-199712
BLUISH GRAY,TRIM1#
sub71071-1C540
main71071-1C550-B0i199601-199712
BLUISH GRAY,TRIM1#
main71071-1C600-B0i199601-199712
main71071-1C670-B1i199712-199907
BLUISH GRAY,TRIM1#
sub71071-1C670
main71071-1C680-B0i199704-199712
BLUISH GRAY,TRIM1#
sub71071-1C680
sub71071-1C670
main71071-1C680-B1i199712-199907
BLUISH GRAY,TRIM1#
sub71071-1C680
sub71071-1C670
main71071-1C690-B0i199712-199907
main71071-1C690-B0i199712-199907
BLUISH GRAY,TRIM1#
main71071-1C700-B0i199712-199907
BLUISH GRAY,TRIM1#
main71071-1C710-B0i199712-199907
BLUISH GRAY,TRIM1#
main71071-1C720-B0i199712-199907
BLUISH GRAY,TRIM1#
main71071-1C730-B0i199712-199907
BLUISH GRAY,TRIM1#
main71071-1C830-B0i199810-199907
BLUISH GRAY,TRIM1#
main71518-10010-B0i199601-199712
BLUISH GRAY,TRIM1#
sub71528-10010
main71518-10020-B0i199601-199704
BLUISH GRAY,TRIM1#
sub71518-10021
sub71528-10020
main71518-10020-B1i199612-199704
sub71518-10021
sub71528-10020
main71518-10021-B0i199704-199712
BLUISH GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-1C560-B0i199601-199712
BLUISH GRAY,TRIM1#
main71071-1C630-B0i199601-199712
BLUISH GRAY,TRIM1#
main71071-1C650-B0i199601-199712
BLUISH GRAY,TRIM1#
main71071-1C660-B0i199601-199712
main71071-1C670-B0i199704-199907
BLUISH GRAY,TRIM1#
sub71071-1C670
main71072-10870-B0i199712-199907
BLUISH GRAY,TRIM1#
main71072-10870-B0i199712-199907
main71072-10880-B0i199712-199907
BLUISH GRAY,TRIM1#
main71072-10890-B0i199712-199907
BLUISH GRAY,TRIM1#
main71072-1C010-B0i199712-199907
BLUISH GRAY,TRIM1#
main71072-1C020-B0i199712-199907
BLUISH GRAY,TRIM1#
main71072-1C130-B0i199810-199907
BLUISH GRAY,TRIM1#
main71528-10010-B0i199601-199712
BLUISH GRAY,TRIM1#
main71528-10020-B0i199601-199704
BLUISH GRAY,TRIM1#
sub71528-10021
main71528-10020-B1i199612-199704
sub71528-10021
main71528-10021-B0i199704-199712
BLUISH GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1C470-B0i199601-199712
BLUISH GRAY,TRIM1#
main71073-1C490-B0i199601-199712
BLUISH GRAY,TRIM1#
main71073-1C500-B0i199601-199712
BLUISH GRAY,TRIM1#
main71073-1C530-B0i199601-199712
main71073-1C560-B0i199704-199712
BLUISH GRAY,TRIM1#
sub71073-1C560
main71073-1C560-B1i199712-199907
BLUISH GRAY,TRIM1#
sub71073-1C560
main71073-1C570-B0i199712-199907
BLUISH GRAY,TRIM1#
main71073-1C570-B0i199712-199907
main71073-1C580-B0i199712-199907
BLUISH GRAY,TRIM1#
main71073-1C590-B0i199712-199907
BLUISH GRAY,TRIM1#
main71073-1C600-B0i199712-199907
BLUISH GRAY,TRIM1#
main71073-1C610-B0i199712-199907
BLUISH GRAY,TRIM1#
main71073-1C750-B0i199810-199907
BLUISH GRAY,TRIM1#
main71558-10010-B0i199601-199712
BLUISH GRAY,TRIM1#
main71558-10020-B0i199601-199704
BLUISH GRAY,TRIM1#
sub71558-10021
main71558-10020-B1i199612-199704
sub71558-10021
main71558-10021-B0i199704-199712
BLUISH GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-1C470-B0i199601-199712
BLUISH GRAY,TRIM1#
main71073-1C490-B0i199601-199712
BLUISH GRAY,TRIM1#
main71073-1C500-B0i199601-199712
BLUISH GRAY,TRIM1#
main71073-1C530-B0i199601-199712
main71073-1C560-B0i199704-199712
BLUISH GRAY,TRIM1#
sub71073-1C560
main71073-1C560-B1i199712-199907
BLUISH GRAY,TRIM1#
sub71073-1C560
main71073-1C570-B0i199712-199907
BLUISH GRAY,TRIM1#
main71073-1C570-B0i199712-199907
main71073-1C580-B0i199712-199907
BLUISH GRAY,TRIM1#
main71073-1C670-B0i199712-199907
BLUISH GRAY,TRIM1#
main71073-1C680-B0i199712-199907
BLUISH GRAY,TRIM1#
main71073-1C690-B0i199712-199907
BLUISH GRAY,TRIM1#
main71073-1C750-B0i199810-199907
BLUISH GRAY,TRIM1#
main71558-10010-B0i199601-199712
BLUISH GRAY,TRIM1#
main71558-10020-B0i199601-199704
BLUISH GRAY,TRIM1#
sub71558-10021
main71558-10020-B1i199612-199704
sub71558-10021
main71558-10021-B0i199704-199712
BLUISH GRAY,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-1C810-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71410-1C820-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71410-1C840-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71410-1C860-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71410-1C880-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71410-1C880-B1i199612-199704
main71410-1M030-B0i199601-199712
main71410-1M080-B0i199704-199712
***,BLUISH GRAY,TRIM1#
sub71410-1M080
main71410-1M080-B1i199712-199907
***,BLUISH GRAY,TRIM1#
sub71410-1M080
main71410-1M110-B0i199601-199712
sub71410-1M110
main71410-1M110-B1i199712-199907
sub71410-1M110
main71410-1M120-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71410-1M120-B0i199712-199907
main71410-1M130-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71410-1M140-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71410-1M150-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71410-1M170-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71410-1M280-B0i199810-199907
***,BLUISH GRAY,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-1C830-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71410-1C850-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71410-1C870-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71410-1C890-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71410-1C890-B1i199612-199704
main71410-1M060-B0i199704-199712
***,BLUISH GRAY,TRIM1#
main71410-1M070-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71410-1M100-B0i199601-199712
main71420-1C630-B0i199601-199712
main71420-1C640-B0i199712-199907
main71420-1C640-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71420-1C650-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71420-1C660-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71420-1C670-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71420-1C680-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71420-1C690-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71420-1C810-B0i199712-199907
main71420-1C850-B0i199810-199907
***,BLUISH GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71040-10010-B0i199704-199712
***,BLUISH GRAY,TRIM1#
sub71040-10010
main71040-10010-B1i199712-199907
***,BLUISH GRAY,TRIM1#
sub71040-10010
main71040-10020-B0i199712-199907
main71040-10020-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71040-10030-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71040-10040-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71040-10050-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71040-10070-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71040-10190-B0i199810-199907
***,BLUISH GRAY,TRIM1#
main71430-1C570-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71430-1C580-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71430-1C590-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71430-1C600-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71430-1C610-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71430-1C610-B1i199612-199704
main71430-1C630-B0i199601-199712
main71430-1K650-B1i199601-199712
sub71430-1K650
main71430-1K650-B4i199712-199907
sub71430-1K650
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71040-10010-B0i199704-199712
***,BLUISH GRAY,TRIM1#
sub71040-10010
main71040-10010-B1i199712-199907
***,BLUISH GRAY,TRIM1#
sub71040-10010
main71040-10020-B0i199712-199907
main71040-10020-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71040-10030-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71040-10190-B0i199810-199907
***,BLUISH GRAY,TRIM1#
main71070-10010-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71070-10020-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71070-10030-B0i199712-199907
***,BLUISH GRAY,TRIM1#
main71430-1C570-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71430-1C580-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71430-1C590-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71430-1C600-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71430-1C610-B0i199601-199712
***,BLUISH GRAY,TRIM1#
main71430-1C610-B1i199612-199704
main71430-1C630-B0i199601-199712
main71440-1K600-B1i199601-199712
sub71440-1K600
main71440-1K600-B4i199712-199907
sub71440-1K600
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-10250i199601-199712
main71511-10250i199601-199907
main71511-10280i199601-199907
main71511-10300i199712-199907
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71052-10020i199712
main71052-10030i199712
main71511-10250i199601-199712
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-10190i199601-199712
main71551-10210i199601-199712
main71551-10210i199712
main71551-10230i199712
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-10190i199601-199712
main71551-10210i199601-199712
main71551-10210i199712
main71551-10230i199712
9046818071
main90468-18071

17 parts on this diagram · 7 diagrams in section
