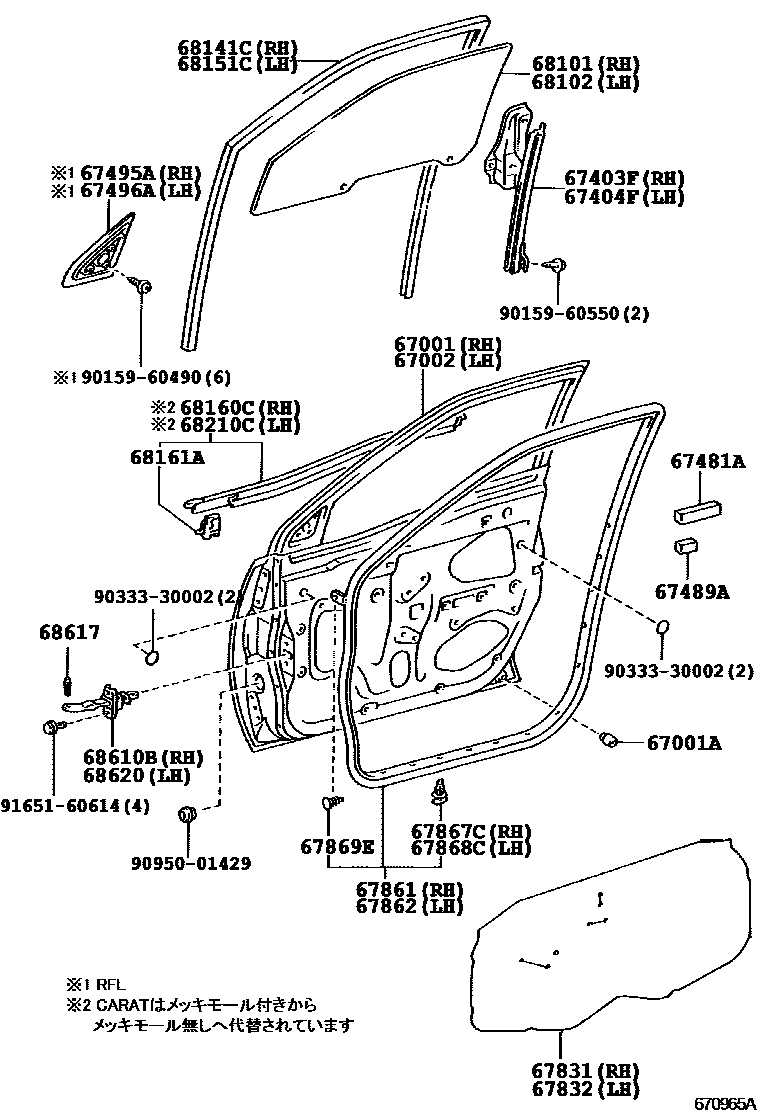

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������ 0003 1�������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-10620iEP9#,NP90..3D¥66,700199601

main67001-10640iEP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX)¥57,200199601

main67001-10650iEP9#..REMIX¥57,200199810

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iEP9#,NP90..3D¥170199601

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-10620iEP9#,NP90..3D¥66,700199601

main67002-10640iEP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX)¥57,200199601

main67002-10650iEP9#..REMIX¥57,200199810

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-10080iEP9#,NP90..3D¥1,760199601

main67403-10090iEP9#,NP90..5D¥1,300199601

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-10080iEP9#,NP90..3D¥1,760199601

main67404-10090iEP9#,NP90..5D¥1,300199601

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-10060iEP9#,NP90¥250199601

67489ASEAL, FRONT DOOR FRONT LOWER FRAME COVER

main67489-10020iEP9#,NP90¥130199601

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-10060iEP91,NP90..RFL¥1,960199601

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-10060iEP91,NP90..RFL¥1,960199601

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-10160iEP9#,NP90..3D¥1,270199601

main67831-10170iEP9#,NP90..5D¥1,000199601

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-10160iEP9#,NP90..3D¥1,270199601

main67831-10170iEP9#,NP90..5D¥1,000199601

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-10210iEP9#,NP90..3D¥10,300199601

main67861-10220iEP9#,NP90..5D¥6,800199601

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-10210iEP9#,NP90..3D¥10,300199601

main67862-10220iEP9#,NP90..5D¥6,800199601

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iEP9#,NP90..5D¥100199601-199607

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iEP9#,NP90..5D¥100199601-199607

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iEP9#,NP90..5D¥100199601

main67869-22010iEP9#,NP90..3D¥100199601

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-10330iEP9#..3D..(GLZS,GLZV,RFLF,RFLX)¥19,000199601

main68110-10340iEP9#..3D..CARAT¥25,500199712

main68110-10340iEP9#..3D..(GLZS,GLZV,RFLF,RFLX)¥25,500199601

main68110-10350iEP9#..5D..(RFLF,RFLX)¥18,300199601

main68110-10360iEP9#..5D..CARAT¥23,700199704

main68110-10360iEP9#..5D..(REMIX,RFLF,RFLX)¥23,700199601

main68110-10370iEP9#..3D..CARAT¥36,800199804

main68110-10380iEP9#..5D..CARAT¥30,600199804

main68111-10320iEP9#,NP90..3D..(GLZS,GLZV,RFL,RFLF,RFLX)¥17,400199601

main68111-10420iEP91..GLZS¥24,200199612-199704

main68111-10420iEP9#..3D..RFLF¥24,200199601

main68111-10430iEP9#,NP90..5D..(RFL,RFLF,RFLX)¥16,300199601

main68111-10440iEP9#..5D..(REMIX,RFLF)¥22,100199601

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-10370iEP9#,NP90..3D..(GLZS,GLZV,RFL,RFLF,RFLX)¥17,400199601

main68112-10380iEP9#..3D..RFLF¥24,200199601

main68112-10380iEP91..GLZS¥24,200199612-199704

main68112-10390iEP9#,NP90..5D..(RFL,RFLF,RFLX)¥16,300199601

main68112-10400iEP9#..5D..(REMIX,RFLF)¥22,100199601

main68120-10220iEP9#..3D..CARAT¥36,800199804

main68120-10340iEP9#..3D..(GLZS,GLZV,RFLF,RFLX)¥19,000199601

main68120-10350iEP9#..3D..(GLZS,GLZV,RFLF,RFLX)¥25,500199601

main68120-10350iEP9#..3D..CARAT¥25,500199712

main68120-10360iEP9#..5D..(RFLF,RFLX)¥18,300199601

main68120-10370iEP9#..5D..CARAT¥23,700199704

main68120-10370iEP9#..5D..(REMIX,RFLF,RFLX)¥23,700199601

main68120-10380iEP9#..5D..CARAT¥30,600199804

68141CRUN, FRONT DOOR GLASS, RH

main68141-10200iEP9#,NP90..3D¥4,220199601

main68141-10210iEP9#,NP90..5D¥4,220199601

68151CRUN, FRONT DOOR GLASS, LH

main68151-10050iEP9#,NP90..3D¥4,220199601

main68151-10060iEP9#,NP90..5D¥4,220199601

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-10150iEP9#,NP90..3D..(GLZS,GLZV,RFL,RFLF,RFLX)¥3,100199601

sub68160-10170¥3,950

main68160-10160iEP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX)¥3,100199601

sub68160-10180¥3,100

main68160-10170iEP9#..3D..(GLZS,GLZV,RFLF,RFLX)¥3,950199601

main68160-10180iEP9#..5D..(REMIX,RFLF,RFLX)¥3,100199601

main68160-10190iEP9#..5D..CARAT¥3,310199704

sub68160-10180¥3,100

main68160-10200iEP9#..3D..CARAT¥3,950199712

sub68160-10170¥3,950

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68212-16030iEP9#,NP90..5D¥270199601

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-10130iEP9#,NP90..3D..(GLZS,GLZV,RFL,RFLF,RFLX)¥3,100199601

sub68210-10150¥3,950

main68210-10140iEP9#,NP90..5D..(REMIX,RFL,RFLF,RFLX)¥3,100199601

sub68210-10160¥3,100

main68210-10150iEP9#..3D..(GLZS,GLZV,RFLF,RFLX)¥3,950199601

main68210-10160iEP9#..5D..(REMIX,RFLF,RFLX)¥3,100199601

main68210-10170iEP9#..5D..CARAT¥3,310199704

sub68210-10160¥3,100

main68210-10180iEP9#..3D..CARAT¥3,950199712

sub68210-10150¥3,950

68610BCHECK ASSY, FRONT DOOR, RH

main68610-10070iEP9#,NP90¥3,710199601

68617PIN, FRONT DOOR CHECK

main68617-12030iEP9#,NP90¥260199601

68620CHECK ASSY, FRONT DOOR, LH

main68610-10070iEP9#,NP90¥3,710199601

9015960490

main90159-60490¥120

9015960550

main90159-60550¥90

9033330002

main90333-30002¥70

9095001429

main90950-01429¥110

9165160614

main91651-60614¥70

31 parts on this diagram · 3 diagrams in section
