QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-10330iEP9#,NP90..3D..(GLZS,GLZV,RFL,RFLF,RFLX)199601

main62711-10340iEP9#..3D..(CARAT,GLZS,GLZV,RFLX)199712

main62711-10350iEP9#..CARAT199804

62711ASPACER, QUARTER WINDOW GLASS, NO.1

main62761-10010×2iEP9#,NP90..3D199601

62712GLASS, QUARTER WINDOW, LH

main62712-10270iEP9#,NP90..3D..(GLZS,GLZV,RFL,RFLF,RFLX)199601

main62712-10280iEP9#..3D..(CARAT,GLZS,GLZV,RFLX)199712

main62712-10290iEP9#..CARAT199804

62791EMOULDING, QUARTER WINDOW, UPPER RH

main62716-10020iEP9#,NP90..3D199601

sub64813-48010

62792EMOULDING, QUARTER WINDOW, UPPER LH

main62716-10020iEP9#,NP90..3D199601

sub64813-48010

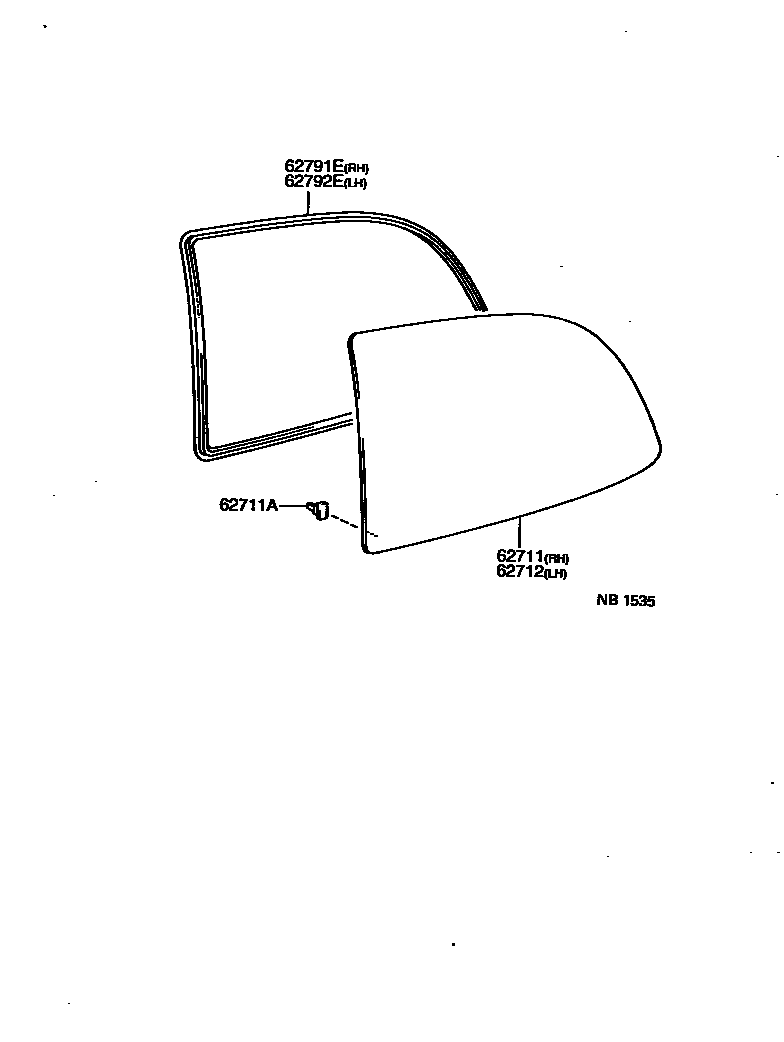

5 parts on this diagram · 1 diagram in section
