MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1C460-B0iEP91,NP90..3D..(RFL,RFLF,RFLX)199601-199712

BLUISH GRAY,TRIM1#

sub58510-1C750

main58510-1C520-B0iEP91..GLZS,GLZV199601-199712

BLUISH GRAY,TRIM1#

sub58510-1C750

main58510-1C580-B0iEP91..GLZS,GLZV199601-199712

sub58510-1C590

main58510-1C590-B0iEP91,NP90..3D..(RFL,RFLF,RFLX)199601-199712

sub58510-1C590

main58510-1C620-B0iEP91,NP90..5D199601-199712

BLUISH GRAY,TRIM1#

sub58510-1C630

main58510-1C680-B0iEP91,NP90..5D199601-199712

sub58510-1C680

main58510-1C710-B0iEP95..3D199601-199712

BLUISH GRAY,TRIM1#

sub58510-1C710

main58510-1C720-B0iEP95..3D199601-199712

sub58510-1C720

main58510-1C730-B0iEP95..5D199601-199712

BLUISH GRAY,TRIM1#

sub58510-1C730

main58510-1C740-B0iEP95..5D199601-199712

sub58510-1C740

main58510-1C770-B1iEP91,NP90..3D..(CARAT,RFL,RFLF,RFLX)199712

GRAY,TRIM1#

sub58510-1C770

main58510-1C780-B1iEP91..GLZS,GLZV199712

GRAY,TRIM1#

sub58510-1C770

main58510-1C820-B1iEP91..GLZS,GLZV199712

sub58510-1C830

main58510-1C830-B1iEP91,NP90..3D..(CARAT,RFL,RFLF,RFLX)199712

sub58510-1C830

main58510-1C850-B1iEP95..3D199712

GRAY,TRIM1#

sub58510-1C850

main58510-1C860-B1iEP95..3D199712

sub58510-1C860

main58510-1C890-B1iEP91,NP90..5D199712

GRAY,TRIM1#

sub58510-1M010

main58510-1M040-B1iEP91,NP90..5D199712

sub58510-1M040

main58510-1M060-B1iEP95..5D199712

GRAY,TRIM1#

sub58510-1M060

main58510-1M070-B1iEP95..5D199712

sub58510-1M070

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05051-22iEP9#,NP90..CARAT,REMIX,RFL,RFLF,RFLX199601

BLACK,TRIM1#

sub90467-05051

58521BHOOK, FLOOR CARPET

main58521-10030iEP9#,NP90199601

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-B4iEP9#..CARAT,GLZS,GLZV,REMIX199601

BLUISH GRAY,TRIM1#

sub90467-06016

sub90467-07049

main90467-06016-B5iEP9#,NP90..RFL,RFLF,RFLX199601

LT.BLUISH GRAY,TRIM1#

sub90467-06016

sub90467-07049

58551CCLIP(FOR FLOOR MAT, REAR)

main90467-06016-B4iEP91..GLZV199601-199712

BLUISH GRAY,TRIM1#

sub90467-06016

sub90467-07049

main90467-06016-B5iEP9#,NP90..RFL,RFLF199601

LT.BLUISH GRAY,TRIM1#

sub90467-06016

sub90467-07049

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-06016-B4iEP9#..CARAT,GLZS,GLZV199601-199712

BLUISH GRAY,TRIM1#

sub90467-06016

sub90467-07049

main90467-06016-B4iEP91..5F..GLZV;EP9#..CARAT,GLZS199712

sub90467-06016

sub90467-07049

main90467-06016-B5iEP9#,NP90..RFL,RFLF199601

LT.BLUISH GRAY,TRIM1#

sub90467-06016

sub90467-07049

main90467-06016-B5iEP95..RFLF199712

sub90467-06016

sub90467-07049

58570BMAT ASSY, REAR FLOOR

main58570-10540-B0iEP91..REMIX,RFLF199712

LT. BLUISH GRAY,TRIM1#

main58570-10580-B0iEP95..REMIX,RFLF199712

LT. BLUISH GRAY,TRIM1#

58570CCARPET ASSY, REAR FLOOR

main58570-10401-B3iEP91..GLZV199601-199712

sub58570-10421

main58570-10410-B0iEP95..RFLF199601-199712

LT. BLUISH GRAY,TRIM1#

main58570-10421-B3iEP91..GLZV199601-199712

main58570-10440-B0iEP91..RFLX199704

LT. BLUISH GRAY,TRIM1#

sub58570-10500

main58570-10440-B1iEP91..GLZV199712

BLUISH GRAY,TRIM1#

sub58570-10500

main58570-10460-B0iEP95..RFLF199601-199712

main58570-10460-B1iEP95..CARAT199704-199712

main58570-10470-B0iEP91,NP90..RFL,RFLF199601-199712

LT. BLUISH GRAY,TRIM1#

main58570-10480-B0iEP91..RFLX199601-199704

LT. BLUISH GRAY,TRIM1#

sub58570-10490

main58570-10480-B1iEP91..CARAT,GLZS,GLZV199601-199712

BLUISH GRAY,TRIM1#

sub58570-10490

main58570-10490-B0iEP95..RFLX199601-199704

LT. BLUISH GRAY,TRIM1#

main58570-10490-B1iEP95..CARAT199704-199712

BLUISH GRAY,TRIM1#

main58570-10490-B1iEP91..GLZV199601-199712

main58570-10500-B0iEP95..RFLX199704

LT. BLUISH GRAY,TRIM1#

sub58570-10500

main58570-10500-B1iEP91..GLZV199712

sub58570-10500

main58570-10510-B0iEP95..RFLX199704

main58570-10520-B0iEP91..GLZV199712

sub58570-10520

main58570-10530-B0iEP91..GLZV199712

sub58570-10530

main58570-10540-B0iEP91,NP90..RFL,RFLF199712

LT. BLUISH GRAY,TRIM1#

main58570-10550-B0iEP95..CARAT;EP91..5F..GLZV199712

sub58570-10550

main58570-10560-B0iEP91..5F..GLZV199712

sub58570-10560

main58570-10570-B0iEP91..5F..GLZV199712

sub58570-10570

main58570-10580-B0iEP95..RFLF199712

LT. BLUISH GRAY,TRIM1#

main58570-10590-B0iEP95..RFLF199712

sub58570-10590

main58570-10590-B1iEP95..CARAT199712

sub58570-10590

main58570-10600-B0iEP91..5F..GLZV;EP91..CARAT,GLZS199712

sub58570-10600

58572CCLIP, REAR FLOOR MAT SET

main90467-09032-B1iEP91..GLZV199601

BLUISH GRAY,TRIM1#

sub90467-09032

58572EMAT, REAR FLOOR, FRONT

main58572-10010iEP91,NP90..RFL199601

58573APLATE, REAR FLOOR MAT SUPPORT

main58573-10021iEP91,NP90..GLZV,RFL199601

9015960081

main90159-60081

9018906116

main90189-06116

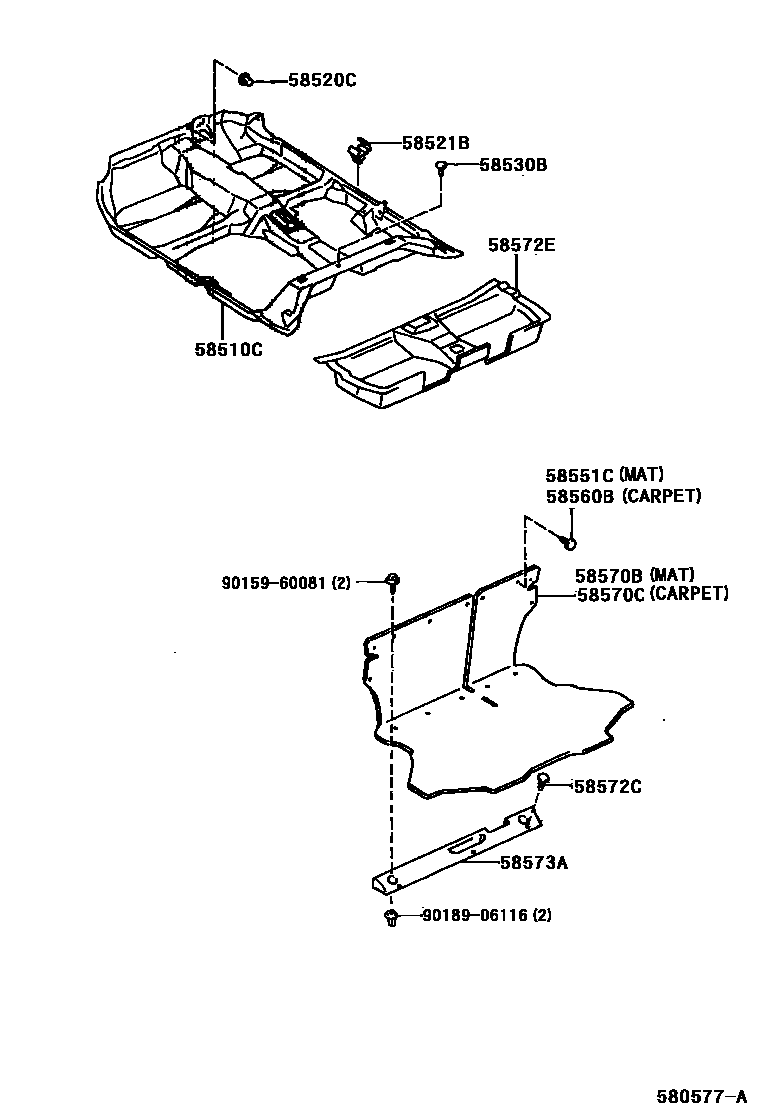

13 parts on this diagram · 1 diagram in section
