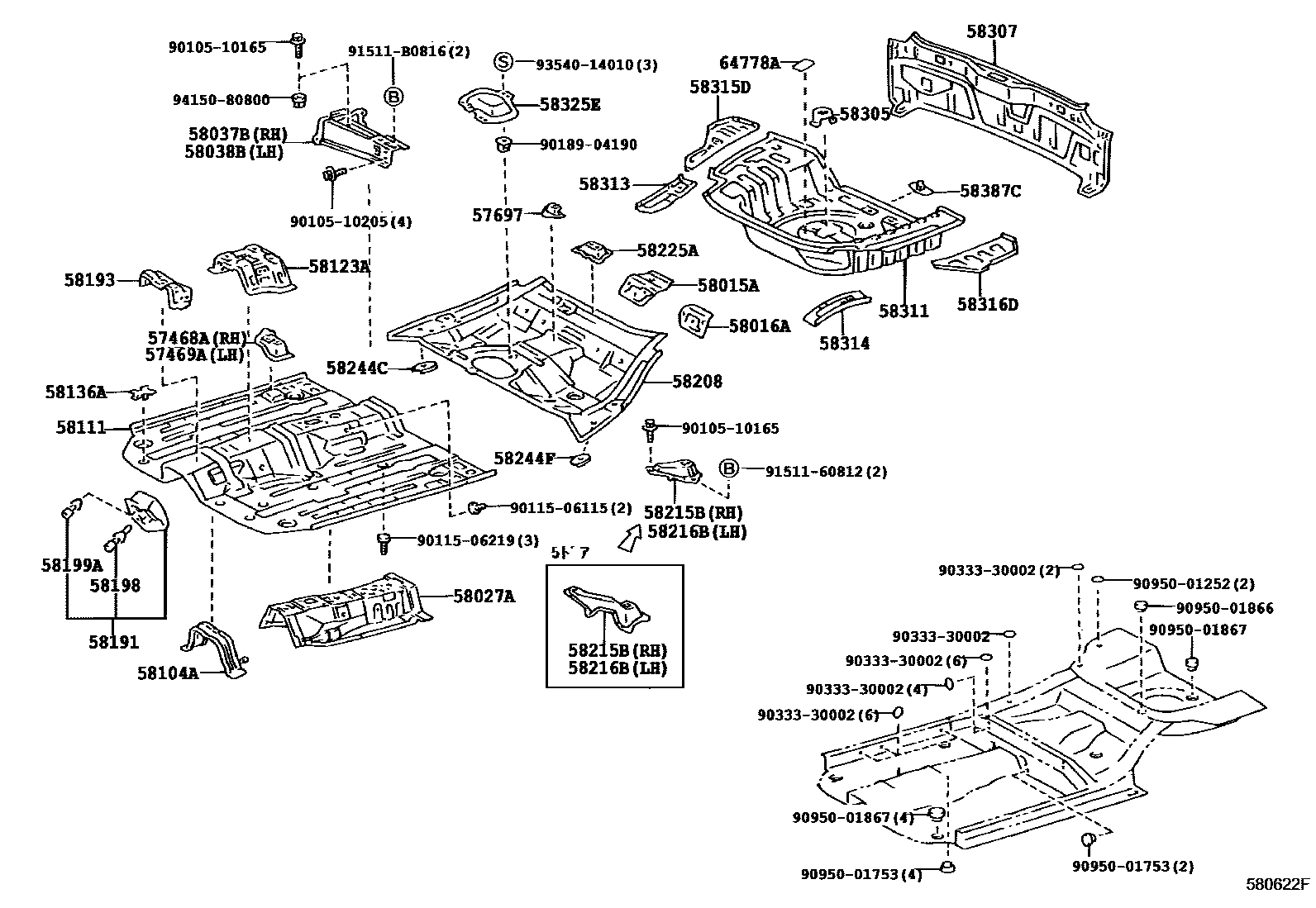

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-10040iEP9#,NP90199601

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-10040iEP9#,NP90199601

57697RETAINER, REAR SEAT CUSHION

main57697-10010iEP91,NP90..RFL199601

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-10030iEP91,NP90199601

main58015-10040iEP95199712

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-10020iEP91,NP90199601

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-10111iEP95199601

main58027-10120iEP95199704-199712

58037BREINFORCE, CENTER PILLAR TO FLOOR, RH

main58037-10010iEP91,NP90..3D199601

main58037-10020iEP95..3D199601

58038BREINFORCE, CENTER PILLAR TO FLOOR, LH

main58038-10010iEP91,NP90..3D199601

main58038-10020iEP95..3D199601

58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT

main58104-10050iEP91..GLZS,RFL,RFLF,RFLX199601-199704

main58104-16011iEP91,NP90..(4FC,5F)..(GLZV,RFL)199601

main58104-16020iEP91..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199712

58111PAN, FRONT FLOOR

main58111-10160iEP95199704-199712

main58111-10180iEP95199601

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-10050iEP91..4FC..GLZV;EP9#..CARAT,GLZS,RFLF,RFLX199704-199712

main58123-16050iEP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX199704

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020×2iEP9#,NP90199601

58191FOOTREST, FRONT FLOOR

main58191-16070iEP91..GLZS,GLZV199601

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-10030iEP91..4FC..GLZV;EP9#..CARAT,GLZS,RFLF,RFLX199704-199712

main58193-16040iEP9#,NP90199601-199704

main58193-16060iEP9#,NP90199712

58198CLIP, FOOTREST

main58198-16030iEP91..GLZS,GLZV199601

58199ACLIP, FOOTREST, NO.2

main58199-16020iEP91..GLZS,GLZV199601

58208PAN, CENTER FLOOR

main58211-10130iEP91,NP90..3D199601

main58211-10160iEP95199601

sub58211-10161

sub90333-30002

main58211-10170iEP91,NP90..5D199601

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-10050iEP91,NP90..5D199601

main58215-10060iEP91,NP90..3D199601

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-10050iEP91,NP90..5D199601

main58216-10060iEP91,NP90..3D199601

58225ABRACKET, CENTER MOUNTING

main58225-10020iEP91..GLZV199601

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-10020iEP91,NP90..3D199601

58244FBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-10020iEP91,NP90..3D199601

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iEP91,NP90199601

main58351-10030iEP95199601

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-10330iEP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199601

main58307-10340iEP9#..REMIX199810

58311PAN, REAR FLOOR

main58311-10193iEP91,NP90199601

main58311-10201iEP95199601

sub58311-46010

sub90333-30002

58313PANEL, REAR FLOOR SIDE, RH

main58313-10030iEP95199601

main58313-16030iEP91,NP90199601

58314PANEL, REAR FLOOR SIDE, LH

main58314-10030iEP95199601

main58314-16090iEP91,NP90199601

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-10020iEP9#,NP90199601

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-10020iEP9#,NP90199601

58325ECOVER, REAR FLOOR SERVICE HOLE

main58031-16020iEP91,NP90199608

main58325-10021iEP91,NP90199601-199608

sub82819-32200

main58325-10040iEP95199601

58387CPLATE, REAR FLOOR FINISH

main58387-10010iEP9#,NP90199601

64778APROTECTOR, SPARE WHEEL

main64778-16020×4iEP9#,NP90199601

9010510165

main90105-10165

9010510205

main90105-10205

9011506115

main90115-06115

9011506219

main90115-06219

9018904190

main90189-04190

9033330002

main90333-30002

9095001252

main90950-01252

9095001753

main90950-01753

9095001866

main90950-01866

9095001867

main90950-01867

9151160812

main91511-60812

91511B0816

main91511-B0816

9354014010

main93540-14010

9415080800

main94150-80800

46 parts on this diagram · 2 diagrams in section
