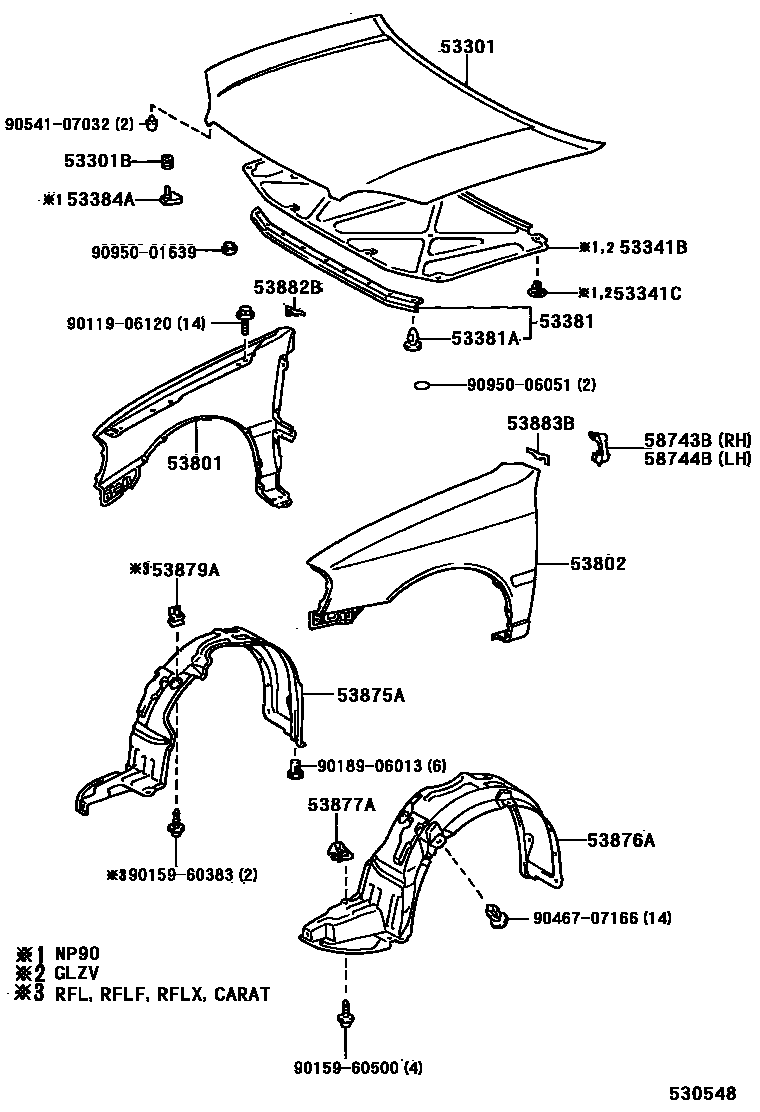

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-10330iEP9#,NP90..RFL,RFLF,RFLX199601-199712

main53301-10340iEP9#,NP90..RFL,RFLF,RFLX199712-199907

main53301-10350iEP91..GLZV199601-199907

main53301-10360iEP91..GLZS199601-199907

main53301-10370iEP9#..CARAT,REMIX199704-199907

53301BCUSHION, HOOD BUMPER

main90541-15010×2iEP9#,NP90199601

53341BINSULATOR, HOOD

main53341-10040iEP91..GLZV199601

main53341-10050iNP90199601

53341CCLIP(FOR HOOD INSULATOR)

main90467-09032×8iNP90199712-199907

main90467-09032-C0×8iNP90199601-199712

BLACK,TRIM1#

main90467-11020×4iEP91..GLZV199601-199907

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-10110iEP91,NP90..(4FC,5F)..(GLZV,RFL)199601

main53381-10120iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

main53382-10040iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iEP91,NP90..(4FC,5F)..(GLZV,RFL)199601

53384ABUMPER, FENDER TO HOOD

main53384-10060iNP90199601

53801FENDER SUB-ASSY, FRONT RH

main53811-10540iEP9#,NP90..CARAT,GLZS,RFL,RFLF,RFLX199601

main53811-10550iEP91,NP90..RFL199601

main53811-10590iEP91..GLZS199612

main53811-10600iEP9#..REMIX199810

53802FENDER SUB-ASSY, FRONT LH

main53812-10580iEP91..GLZS199612-199704

main53812-10590iEP91,NP90..RFL199601

main53812-10630iEP91..GLZS199601-199612

main53812-10640iEP9#..REMIX199810

53875ALINER, FRONT FENDER, RH

main53875-10040iEP9#,NP90..RFL,RFLF,RFLX199601

main53875-10050iEP9#..GLZS,GLZV,REMIX199601

main53875-10060iEP9#..CARAT199704

53876ALINER, FRONT FENDER, LH

main53876-10040iEP9#,NP90..RFL,RFLF,RFLX199601

main53876-10050iEP9#..GLZS,GLZV,REMIX199601

main53876-10060iEP9#..CARAT199704

53877ABRACKET, FRONT FENDER SPLASH SHIELD

main53877-16010×2iEP9#,NP90199601

53879ARETAINER, FRONT FENDER LINER

main53879-16010×2iEP9#,NP90..CARAT,RFL,RFLF,RFLX199601

53882BSEAL, FRONT FENDER, RH

main53882-10060iEP9#,NP90199601

53883BSEAL, FRONT FENDER, LH

main53882-10060iEP9#,NP90199601

58743BPROTECTER, FRONT FENDER PANEL, RH

main58743-10020iEP9#,NP90199601

58744BPROTECTER, FRONT FENDER PANEL, LH

main58743-10020iEP9#,NP90199601

9011906120

main90119-06120

9015960383

main90159-60383

9015960500

main90159-60500

9018906013

main90189-06013

9046707166

main90467-07166

9054107032

main90541-07032

9095001639

main90950-01639

9095006051

main90950-06051

25 parts on this diagram · 2 diagrams in section
