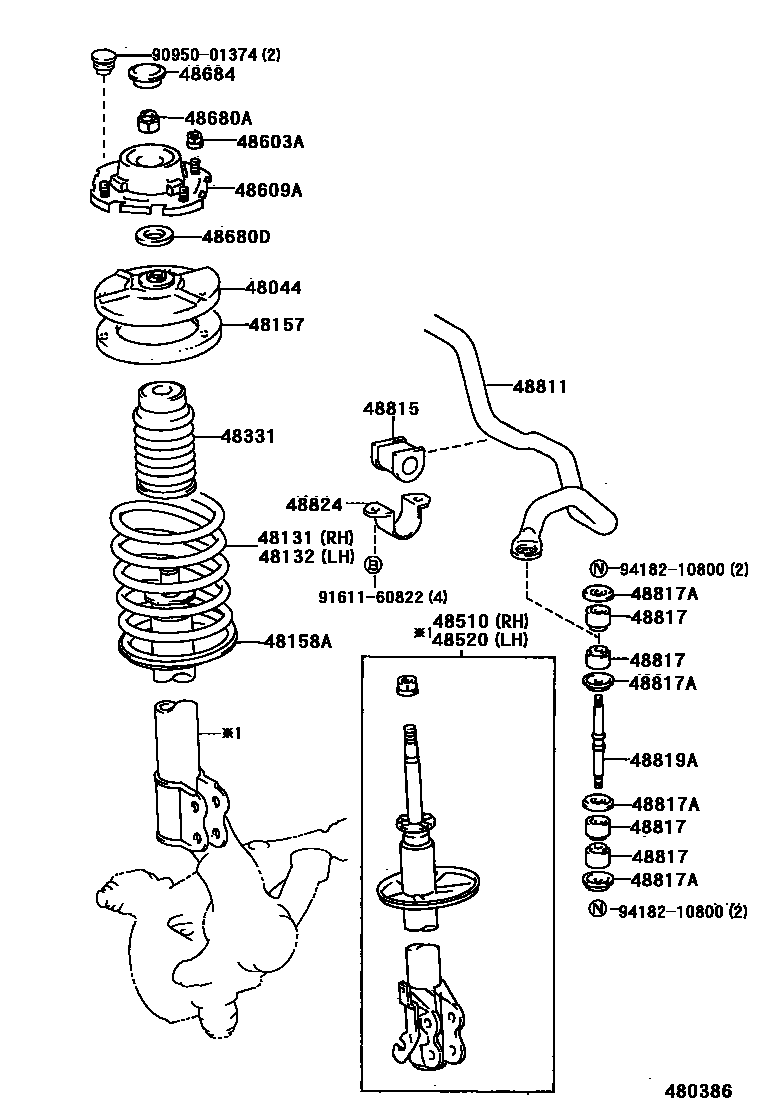

FRONT SPRING & SHOCK ABSORBER

0001 1 0003 1

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-16030×2iEP9#,NP90199601-199712

main48044-46010×2iEP9#,NP90199712

48131SPRING, FRONT COIL, RH

main48131-10511iEP91..3FC,4F199604-199712

main48131-10521iEP91..RFLX199604-199712

sub48131-10520

main48131-10880iEP95..5F199705-199712

main48131-16830iEP91,NP90..(4FC,5F)..(GLZS,RFL)199601-199712

main48131-1C020iEP91..GLZV199601-199712

main48131-1C030iEP91..CARAT,RFL,RFLF199712-199907

main48131-1C040iEP91..RFLX199712-199907

main48131-1C050iEP91..5F..GLZS199712-199907

main48131-1C100iEP95..4FC199712-199907

main48131-1C110iEP95..5F199712-199907

main48131-1G570iEP95..4FC199705-199712

main48131-1G870iNP90;EP91..5F..GLZV;EP91..4FC..(GLZS,GLZV)199712-199907

main48131-1S100iEP91..REMIX199810-199907

48132SPRING, FRONT COIL, LH

main48131-10511iEP91..4F..RFLF;EP91..(3FC,5F)..(RFL,RFLX)199601-199604

main48131-10521iEP91..4FC..RFLX199604-199712

sub48131-10520

main48131-10531iEP91..4F..RFL199601-199604

main48131-10621iEP91..5F..GLZV199601-199712

main48131-10830iEP95..5F199601-199712

main48131-10880iEP95..4FC199601-199705

main48131-16830iEP91,NP90..4FC..(GLZS,RFL)199601-199712

main48131-1C020iEP91..4FC..GLZV199601-199712

main48131-1C030iEP91..(3FC,5F)..(CARAT,RFL,RFLF,RFLX)199712-199907

main48131-1C040iEP91..4FC..RFLX199712-199907

main48131-1C050iEP91,NP90..5F..(GLZV,RFL)199712-199907

main48131-1C070iEP91..5F..GLZS199712-199907

main48131-1C080iEP91..4F..(CARAT,RFL,RFLF)199712-199907

main48131-1C100iEP95..4FC199712-199907

main48131-1G030iEP91,NP90..5F..(GLZS,RFL)199601-199712

main48131-1G570iEP95..4FC199705-199712

main48131-1G870iNP90..4FC;EP91..(4F,4FC)..(GLZS,GLZV,REMIX)199712-199907

main48131-1G890iEP95..5F199712-199907

main48131-1S100iEP91..3FC..REMIX199810-199907

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-16040×2iEP9#,NP90199601-199712

main48157-46010×2iEP9#,NP90199712

48158AINSULATOR, FRONT COIL SPRING, LOWER

main48158-16030×2iEP9#,NP90199601

48331BUMPER, FRONT SPRING, NO.1

main48331-12140×2iEP95;EP91,NP90..(4FC,5F)..(GLZV,RFL)199612

main48331-16060×2iEP95;EP91,NP90..(4FC,5F)..(GLZV,RFL)199601-199612

main48331-16070×2iEP91..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-19505iEP91..CARAT,RFL,RFLF,RFLX199601-199712

main48510-19515iEP91..GLZV199601-199612

main48510-19516iEP91..GLZV199612-199712

main48510-19525iNP90199601-199612

main48510-19526iNP90199612-199712

main48510-19535iEP95199601-199612

main48510-19536iEP95199612-199712

main48510-19545iEP91..GLZS199601-199712

main48510-19865iEP91..CARAT,RFL,RFLF,RFLX199712

main48510-19875iEP91..GLZV199712

main48510-19885iNP90199712

main48510-19896iEP95199712

main48510-80002iEP91..GLZS,REMIX199712

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-19225iEP91..CARAT,RFL,RFLF,RFLX199601-199712

main48520-19235iEP91..GLZV199601-199612

main48520-19236iEP91..GLZV199612-199712

main48520-19245iNP90199601-199612

main48520-19246iNP90199612-199712

main48520-19255iEP95199601-199612

main48520-19256iEP95199612-199712

main48520-19265iEP91..GLZS199601-199712

main48520-19545iEP91..CARAT,RFL,RFLF,RFLX199712

main48520-19555iEP91..GLZV199712

main48520-19565iNP90199712

main48520-19576iEP95199712

main48520-19585iEP91..GLZS,REMIX199712

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-08206×6iEP9#,NP90199601

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-10160×2iEP95;EP91..GLZV199601

main48609-16220×2iEP91,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-12145×2iEP9#,NP90199601

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049×2iEP9#,NP90199601

48684COVER, BEARING DUST

main48684-10010×2iEP9#,NP90199601

48811BAR, STABILIZER, FRONT

main48811-10340iEP95199601-199611

main48811-10341iEP95199611

main48811-10360iEP91..GLZV199601-199611

main48811-10361iEP91..GLZV199611

main48811-16220iEP91..GLZS199601-199611

main48811-16221iEP91..GLZS,REMIX199611

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-10100×2iEP95199601

main48815-10110×2iEP91..GLZS,GLZV,REMIX199609

main48815-14130×2iEP91..GLZS,GLZV199601-199609

48817CUSHION, FRONT STABILIZER

main48817-10020×4iEP91..GLZV199601

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032×4iEP91..GLZV199601

48819ABOLT, FRONT STABILIZER

main48819-10010×2iEP95;EP91..GLZS,REMIX199601

48824BRACKET, STABILIZER, FRONT

main48824-20040×2iEP95;EP91..GLZS,GLZV,REMIX199601

9095001374

main90950-01374

9161160822

main91611-60822

9418210800

main94182-10800

22 parts on this diagram · 2 diagrams in section
