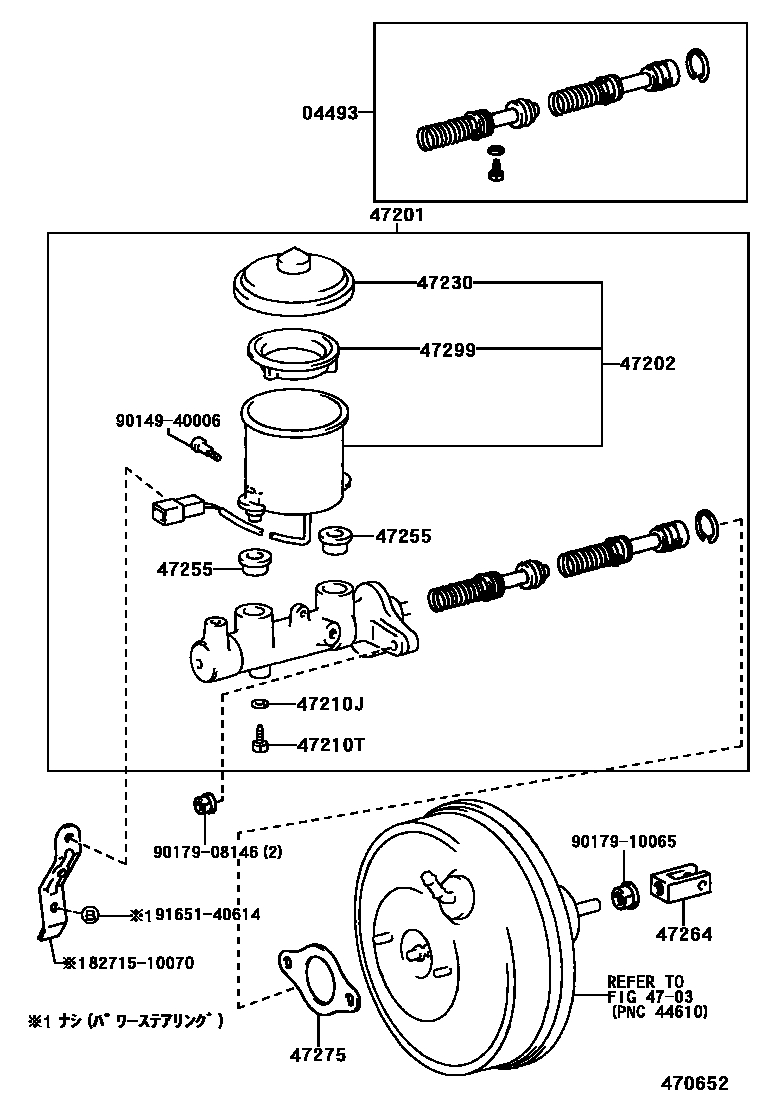

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-10190iEP91,NP90..RFL199601

main04493-16080iEP91..5F..GLZV199601

main04493-16090iEP9#,NP90199601

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-10240iEP91,NP90..RFL199601-199712

main47201-16230iEP91..5F..GLZV199601-199712

main47201-16250iEP9#,NP90199601-199712

main47201-16400iEP9#,NP90199712

main47201-16460iEP91..5F..GLZV199712

main47201-16470iEP91,NP90..RFL199712

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-10010iEP9#,NP90199601-199712

main47220-16110iEP9#,NP90199712

main47220-16130iNP90;EP91..(3FC,4F,5F)..(GLZV,RFL)199712

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iEP9#,NP90199601

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iEP9#,NP90199601

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-16010iEP9#,NP90199601

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iEP9#,NP90199601

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20060iNP90199601-199712

main47264-20060iEP91..RFL199704-199712

main47264-20070iEP9#199601-199712

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iEP9#,NP90199601

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-16010iEP9#,NP90199601

8271510070BRACKET,WIRING HARNESS CLAMP

main82715-10070

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

9165140614

main91651-40614

16 parts on this diagram · 1 diagram in section
