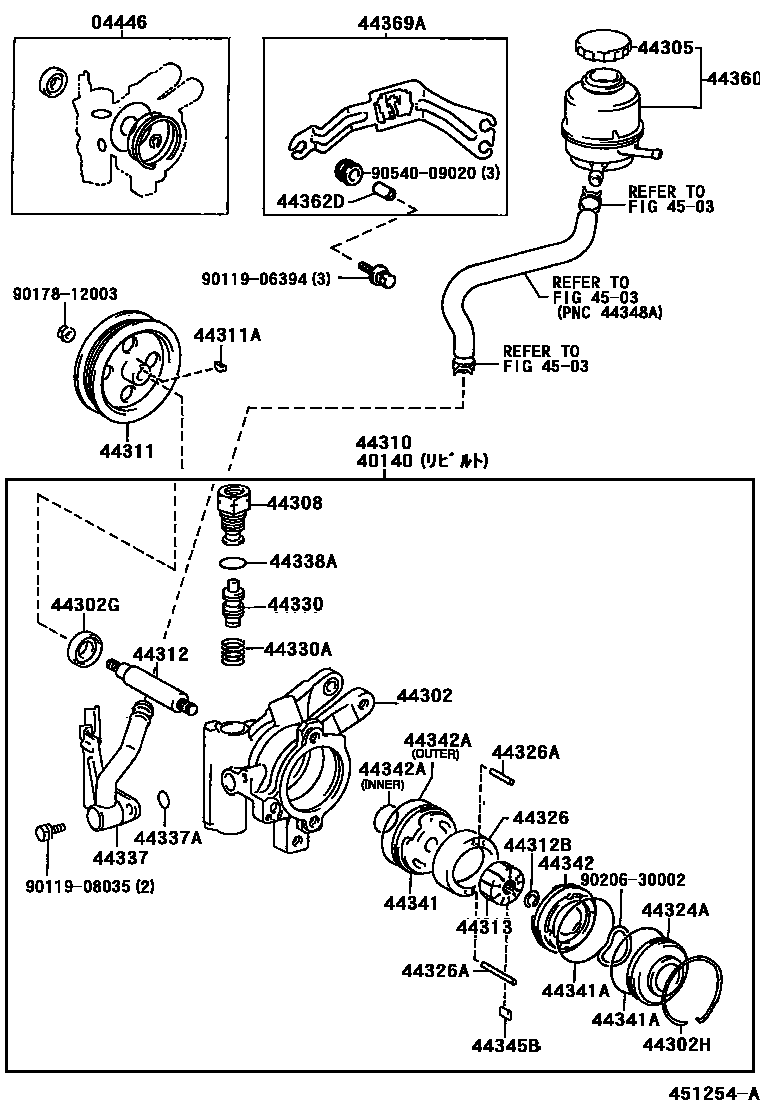

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-10021iEP9#199601-199907

main04446-16061iNP90199601-199907

40140PUMP ASSY,VANE REBUILT

main40140-10082iNP90199601-199907

TOYODA KOKI

sub44320-10082

main40140-10101iEP91..CARAT,GLZS,RFL,RFLF,RFLX199601-199712

TOYODA KOKI

sub44320-10101

main40140-10111iEP95199601-199907

TOYODA KOKI

sub44320-10111

main40140-10140iEP91..GLZV199601-199907

TOYODA KOKI

sub44320-10140

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-10040iEP91..GLZV199601-199907

main44302-12120iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601-199907

main44302-16030iNP90199601-199907

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iEP9#,NP90199601-199907

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-62002iEP9#,NP90199601-199907

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iEP9#,NP90199601

sub44305-22050

44308UNION SUB-ASSY, PRESSURE PORT

main44308-12042iEP91..GLZV199601-199907

main44308-18011iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601-199907

main44308-20050iNP90199601-199907

44310PUMP ASSY, VANE

main44320-10082iNP90199601-199907

main44320-10101iEP91..CARAT,GLZS,RFL,RFLF,RFLX199601-199712

main44320-10111iEP95199601-199907

main44320-10140iEP91..GLZV199601-199907

44311PULLEY, VANE PUMP

main44311-10030iEP9#199601-199907

main44311-12030iNP90199601-199907

44311AKEY, VANE PUMP PULLEY

main90280-05008iEP9#,NP90199601-199907

44312SHAFT, VANE PUMP

main44312-12030iEP9#,NP90199601-199907

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iEP9#,NP90199601-199907

44313ROTOR, VANE PUMP

main44313-22040iEP9#,NP90199601-199907

main44313-22050iEP9#,NP90199601-199907

main44313-22060iEP9#,NP90199601-199907

main44313-22070iEP9#,NP90199601-199907

main44313-22080iEP9#,NP90199601-199907

44324AHOUSING, PUMP, REAR

main44324-12031iEP9#,NP90199601-199907

44326RING, CAM(FOR VANE PUMP)

main44325-12110iEP9#,NP90199601-199907

main44325-12120iEP9#,NP90199601-199907

main44325-12130iEP9#,NP90199601-199907

main44325-12140iEP9#,NP90199601-199907

main44325-12150iEP9#,NP90199601-199907

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iEP9#,NP90199601-199907

main90250-04049iEP9#,NP90199601-199907

44330VALVE ASSY, FLOW CONTROL

main44330-12071iNP90199601-199907

main44330-12081iEP91,NP90..CARAT,GLZS,RFL,RFLF,RFLX199601-199907

main44330-12091iEP91,NP90..CARAT,GLZS,RFL,RFLF,RFLX199601-199907

main44330-12101iEP91,NP90..CARAT,GLZS,RFL,RFLF,RFLX199601-199907

main44330-12111iEP91,NP90..CARAT,GLZS,RFL,RFLF,RFLX199601-199907

main44330-12121iEP91,NP90..CARAT,GLZS,RFL,RFLF,RFLX199601-199907

main44330-16071iEP9#199601-199907

main44330-16081iEP9#199601-199907

main44330-16091iEP95;EP91..GLZV199601-199907

main44330-16101iEP9#199601-199907

main44330-16111iEP95;EP91..GLZV199601-199907

main44330-16121iEP95;EP91..GLZV199601-199907

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iEP9#,NP90199601-199907

44337UNION, POWER STEERING SUCTION PORT

main44337-10060iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601-199907

main44337-10071iEP91..GLZV199601-199907

main44337-16051iNP90199601-199907

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iEP9#,NP90199612-199907

main90301-12003iEP9#,NP90199601-199612

sub90301-11016

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iEP9#,NP90199601-199612

sub90301-19013

main90301-19013iEP9#,NP90199612-199907

sub90301-19018

44341PLATE, VANE PUMP SIDE, FRONT

main44341-32010iEP9#,NP90199601-199907

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-52001iEP9#,NP90199601-199907

44342PLATE, VANE PUMP SIDE, REAR

main44342-32010iEP9#,NP90199601-199907

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-25001iEP9#,NP90199601-199907

sub90301-25008

main90301-53006iEP9#,NP90199601-199907

sub90301-53007

44345BPLATE, VANE PUMP

main44345-12010iEP9#,NP90199601-199907

main44345-12020iEP9#,NP90199601-199907

main44345-12030iEP9#,NP90199601-199907

main44345-12040iEP9#,NP90199601-199907

main44345-12050iEP9#,NP90199601-199907

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-10040iEP9#,NP90199601

44362DSPACER(FOR VANE PUMP OIL RESERVOIR)

main90560-06014iEP9#,NP90199601

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-16010iEP9#,NP90199601

4503

9011906394

main90119-06394

9011908035

main90119-08035

9017812003

main90178-12003

9020630002

main90206-30002

9054009020

main90540-09020

35 parts on this diagram · 3 diagrams in section
