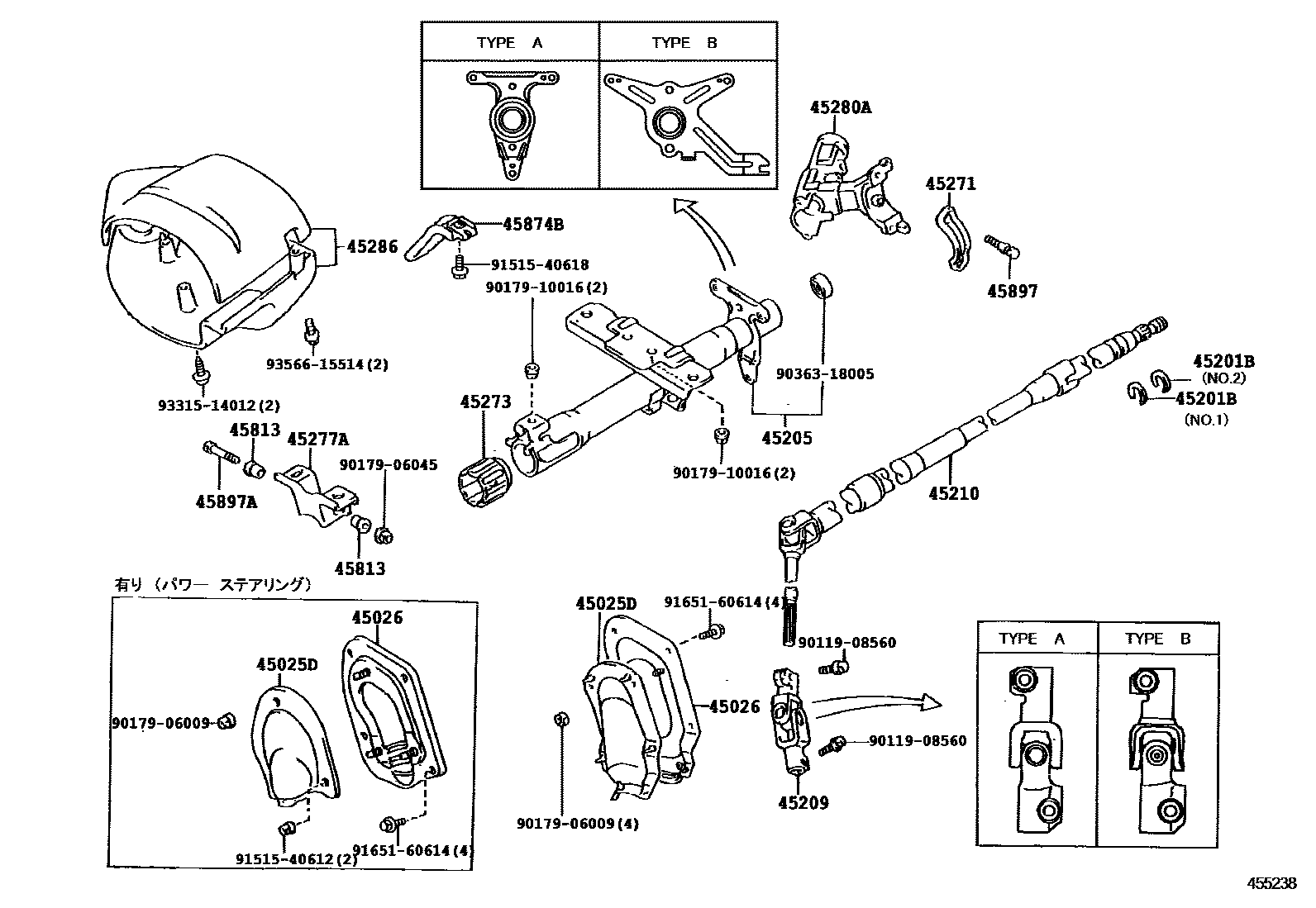

STEERING COLUMN & SHAFT

0001 1 0002 1��� ������� 0003 1��(���������) 0004 1��(��� ������� & ���������)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-10080iEP91,NP90..RFL199601

main45025-16130iEP91,NP90..RFL199601

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-10030iEP91,NP90..RFL199601

main45026-16060iEP91,NP90..RFL199601

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iEP9#,NP90199601

main90520-17269iEP9#,NP90199601

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-10210iEP9#..GLZS,GLZV,RFLX199601-199712

main45205-10220iEP9#,NP90..CARAT,REMIX,RFL,RFLF199712-199907

main45205-10230iEP9#..GLZS,GLZV,RFLX199712-199907

main45205-16080iEP9#..RFL,RFLF199601-199704

main45205-16090iEP9#..GLZS,GLZV,RFLX199601-199704

main45205-16100iEP91..3D..RFLF;EP91..3D..3FC..RFL;EP95,NP90..RFL,RFLF;EP91..5D..(RFL,RFLF)199601-199712

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-16040iEP91,NP90..RFL199601-199704

main45209-16051iEP91,NP90..RFL199601-199712

main45209-16051iEP91,NP90..RFL199601-199712

main45209-16051iEP91,NP90..(3FC,4F,4FC)..RFL199601-199704

main45209-18010iNP90..3D..5F199601-199704

sub45209-16051

main45209-18010iNP90..5D..5F;EP9#..GLZS,GLZV,RFLF,RFLX199601-199712

sub45209-16051

main45209-18010iNP90..5D..5F;EP9#..GLZS,GLZV,RFLF,RFLX199601-199712

sub45209-16051

45210SHAFT ASSY, STEERING MAIN

main45210-10150iEP9#,NP90199601-199712

main45210-16150iEP91,NP90..RFL199601-199712

main45210-42010iEP9#,NP90199712

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iEP9#,NP90199601

45273BUSH, STEERING MAIN SHAFT

main45273-12020iEP9#,NP90199712

main45273-16020iEP9#,NP90199601-199712

45277ASUPPORT, TILT STEERING

main45277-12010iEP9#..GLZS,GLZV,RFLX199712

main45277-16030iEP9#,NP90199601-199712

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-10080iEP9#,NP90..ATM199601-199712

main45280-10090iEP9#,NP90..ATM199712

main45280-10100iEP9#,NP90..MTM199712

main45280-16090iNP90..3D..5F199601-199704

main45280-16090iEP9#,NP90..MTM199704-199712

main45280-16120iNP90..3D..5F199601-199704

sub45280-16090

45286COVER, STEERING COLUMN

main45286-10915-B0iEP9#..RFL,RFLF,RFLX199601-199704

main45286-10915-C0iEP91..GLZS,GLZV199601-199704

main45286-10919-B0iEP9#..CARAT199601-199712

main45286-10919-B0iEP9#..CARAT199704-199712

SHADOW GRAY,TRIM1#

main45286-10919-C0iEP91..GLZS,GLZV199601-199712

main45286-10920-B0iEP9#,NP90..MTM..(CARAT,RFL,RFLF,RFLX)199712-199907

BLUISH GRAY,TRIM1#

sub45286-10921

main45286-10920-C0iEP9#..MTM..(GLZS,GLZV,REMIX)199712-199907

BLACK,TRIM1#

sub45286-10921

main45286-10921-B0iEP9#,NP90..ATM..(CARAT,RFL,RFLF,RFLX)199712-199907

BLUISH GRAY,TRIM1#

sub45286-10921

main45286-10921-C0iEP9#..ATM..(GLZS,GLZV,REMIX)199712-199907

BLACK,TRIM1#

sub45286-10921

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-12010iEP9#..GLZS,GLZV,RFLX199712

main45813-16030iEP9#,NP90199601-199712

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-10020iEP9#,NP90..CARAT,RFL,RFLF199601-199712

45897BOLT, STEERING LOCK SET

main45897-12020iEP9#,NP90199601

45897ABOLT, TILT STEERING PAWL SET

main45897-12040iEP9#..GLZS,GLZV,RFLX199712

main45897-16020iEP9#,NP90199601-199712

9011908560

main90119-08560

9017906009

main90179-06009

9017906045

main90179-06045

9017910016

main90179-10016

9036318005

main90363-18005

9151540612

main91515-40612

9151540618

main91515-40618

9165160614

main91651-60614

9331514012

main93315-14012

9356615514

main93566-15514

25 parts on this diagram · 4 diagrams in section
