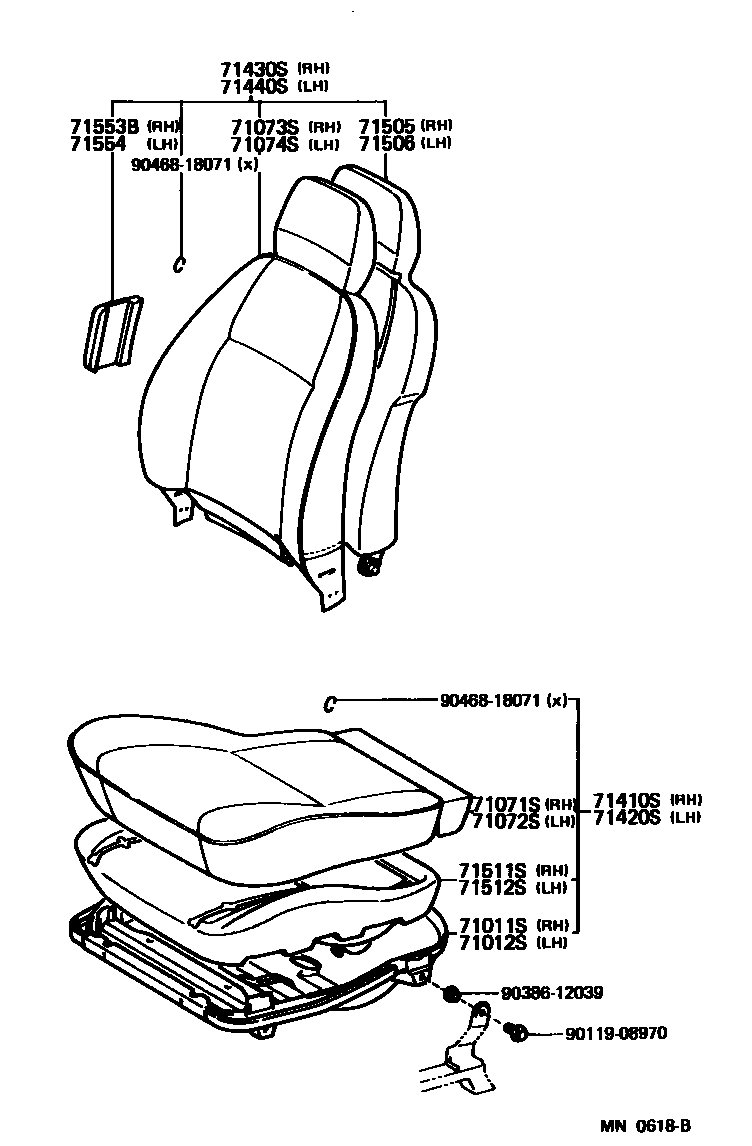

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-10100iEP82,NP80198912-199212

main71011-10170iEP85199008-199212

main71011-10180iEP82,NP80..SOL,SOLL199212-199601

main71011-10190iEP85..S,SOLL199212-199601

main71011-10200iEP82,NP80..CAN,GI,GT,S,XLTD199212-199601

main71011-10210iEP85..S,XLTD199212-199601

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-10060iEP82,NP80198912-199212

main71012-10090iEP85199008-199212

main71012-10100iEP82,NP80199212-199601

main71012-10110iEP85199212-199601

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-1C150-03iEP82,NP80..SOL198912-199201

GRAY,TRIM1#

main71071-1C160-03iEP8#..SOLL198912-199201

GRAY,TRIM1#

main71071-1C160-06iEP8#..SOLL198912-199201

SABLE,TRIM4#

main71071-1C170-03iEP82..CAN,CANSI,S,SI198912-199201

GRAY,TRIM1#

main71071-1C170-04iEP82..S,SI198912-199201

BLUE,TRIM8#

main71071-1C180-03iEP8#,NP80..X,XLTD198912-199201

GRAY,TRIM1#

main71071-1C180-06iEP8#,NP80..X,XLTD198912-199201

SABLE,TRIM4#

main71071-1C190-03iEP82..GI198912-199201

GRAY,TRIM1#

main71071-1C190-04iEP82..GI198912-199201

BLUE,TRIM8#

main71071-1C200-03iEP82..GI198912-199201

GRAY,TRIM1#

main71071-1C200-03iEP82..TBO198912-199201

main71071-1C200-04iEP82..GI198912-199201

main71071-1C200-04iEP82..TBO198912-199201

BLUE,TRIM8#

main71071-1C240-B0iEP82,NP80..SOL199201-199405

GRAY,TRIM1#

main71071-1C250-B0iEP8#..SOLL199201-199405

GRAY,TRIM1#

main71071-1C250-E0iEP8#..SOLL199201-199405

OAK,TRIM4#

main71071-1C260-B0iEP8#..CAN,S199201-199405

GRAY,TRIM1#

main71071-1C270-B0iEP8#,NP80..XLTD199201-199405

GRAY,TRIM1#

main71071-1C270-E0iEP8#,NP80..XLTD199201-199405

OAK,TRIM4#

main71071-1C280-C0iEP82..GI,GT199201-199405

BLACK,TRIM1#

main71071-1C320-J0iEP8#..3D..SOLL199408-199504

main71071-1C340-J0iEP82..SOLL199110-199112

main71071-1C350-B0iEP8#..SOLL199308-199311

main71071-1C350-E0iEP8#..SOLL199308-199311

main71071-1C360-J0iEP8#..3D..SOLL199312-199403

main71071-1C370-B0iEP82,NP80..SOL199405-199601

GRAY,TRIM1#

main71071-1C380-B0iEP8#..SOLL199405-199601

GRAY,TRIM1#

main71071-1C390-B0iEP8#..S199405-199601

GRAY,TRIM1#

sub71071-1C391

main71071-1C390-B0iEP82..GI199505-199512

sub71071-1C391

main71071-1C400-B0iEP8#,NP80..XLTD199405-199601

GRAY,TRIM1#

main71071-1C410-C0iEP82..GI,GT199405-199601

BLACK,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-10490-B0iEP82,NP80..SOL199201-199405

GRAY,TRIM1#

main71072-10510-03iEP82,NP80..SOL198912-199201

GRAY,TRIM1#

main71072-10520-03iEP8#..SOLL198912-199201

GRAY,TRIM1#

main71072-10520-06iEP8#..SOLL198912-199201

SABLE,TRIM4#

main71072-10530-03iEP82..CAN,CANSI,S,SI198912-199201

GRAY,TRIM1#

main71072-10530-04iEP82..S,SI198912-199201

BLUE,TRIM8#

main71072-10540-03iEP8#,NP80..X,XLTD198912-199201

GRAY,TRIM1#

main71072-10540-06iEP8#,NP80..X,XLTD198912-199201

SABLE,TRIM4#

main71072-10550-03iEP82..GI198912-199201

GRAY,TRIM1#

main71072-10550-04iEP82..GI198912-199201

BLUE,TRIM8#

main71072-10560-03iEP82..TBO198912-199201

GRAY,TRIM1#

main71072-10560-03iEP82..TBO198912-199201

main71072-10560-04iEP82..TBO198912-199201

BLUE,TRIM8#

main71072-10560-04iEP82..TBO198912-199201

main71072-10600-B0iEP8#..SOLL199201-199405

GRAY,TRIM1#

main71072-10600-E0iEP8#..SOLL199201-199405

OAK,TRIM4#

main71072-10610-B0iEP8#..CAN,S199201-199405

GRAY,TRIM1#

main71072-10620-B0iEP8#,NP80..XLTD199201-199405

GRAY,TRIM1#

main71072-10620-E0iEP8#,NP80..XLTD199201-199405

OAK,TRIM4#

main71072-10630-C0iEP82..GI,GT199201-199405

BLACK,TRIM1#

main71072-10670-J0iEP8#..3D..SOLL199408-199504

main71072-10690-J0iEP82..SOLL199110-199112

main71072-10700-B0iEP8#..SOLL199308-199311

main71072-10700-E0iEP8#..SOLL199308-199311

main71072-10710-J0iEP8#..3D..SOLL199312-199403

main71072-10720-B0iEP82,NP80..SOL199405-199601

GRAY,TRIM1#

main71072-10730-B0iEP8#..SOLL199405-199601

GRAY,TRIM1#

main71072-10740-B0iEP8#..S199405-199601

GRAY,TRIM1#

sub71072-10741

main71072-10740-B0iEP82..GI199505-199512

sub71072-10741

main71072-10750-B0iEP8#,NP80..XLTD199405-199601

GRAY,TRIM1#

main71072-10760-C0iEP82..GI,GT199405-199601

BLACK,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1C090-03iEP82,NP80..SOL198912-199201

GRAY,TRIM1#

main71073-1C100-03iEP8#..SOLL198912-199201

GRAY,TRIM1#

main71073-1C100-06iEP8#..SOLL198912-199201

SABLE,TRIM4#

main71073-1C110-03iEP82..S,SI198912-199201

GRAY,TRIM1#

main71073-1C110-04iEP82..S,SI198912-199201

BLUE,TRIM8#

main71073-1C160-03iEP8#,NP80..X,XLTD198912-199201

GRAY,TRIM1#

main71073-1C160-06iEP8#,NP80..X,XLTD198912-199201

SABLE,TRIM4#

main71073-1C170-03iEP82..GI198912-199201

GRAY,TRIM1#

main71073-1C170-04iEP82..GI198912-199201

BLUE,TRIM8#

main71073-1C180-03iEP82..TBO198912-199201

GRAY,TRIM1#

main71073-1C180-03iEP82..TBO198912-199201

main71073-1C180-04iEP82..GI198912-199201

main71073-1C180-04iEP82..TBO198912-199201

BLUE,TRIM8#

main71073-1C200-03iEP82..CAN,CANSI198912-199201

GRAY,TRIM1#

main71073-1C210-B0iEP82,NP80..SOL199201-199405

GRAY,TRIM1#

main71073-1C220-B0iEP8#..SOLL199201-199405

GRAY,TRIM1#

main71073-1C220-E0iEP8#..SOLL199201-199405

OAK,TRIM4#

main71073-1C230-B0iEP8#..CAN,S199201-199405

GRAY,TRIM1#

main71073-1C240-B0iEP8#,NP80..XLTD199201-199405

GRAY,TRIM1#

main71073-1C240-E0iEP8#,NP80..XLTD199201-199405

OAK,TRIM4#

main71073-1C250-C0iEP82..GI,GT199201-199405

BLACK,TRIM1#

main71073-1C280-J0iEP8#..3D..SOLL199408-199504

main71073-1C320-J0iEP82..SOLL199110-199112

main71073-1C330-J0iEP8#..3D..SOLL199312-199403

main71073-1C340-B0iEP8#..SOLL199308-199311

main71073-1C340-E0iEP8#..SOLL199308-199311

main71073-1C350-B0iEP82,NP80..SOL199405-199601

GRAY,TRIM1#

main71073-1C360-B0iEP8#..SOLL199405-199601

GRAY,TRIM1#

main71073-1C370-B0iEP82..GI199505-199512

sub71073-1C371

main71073-1C370-B0iEP8#..S199405-199601

GRAY,TRIM1#

sub71073-1C371

main71073-1C380-B0iEP8#,NP80..XLTD199405-199601

GRAY,TRIM1#

main71073-1C390-C0iEP82..GI,GT199405-199601

BLACK,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-10480-03iEP82,NP80..SOL198912-199201

GRAY,TRIM1#

main71074-10490-03iEP8#..SOLL198912-199201

GRAY,TRIM1#

main71074-10490-06iEP8#..SOLL198912-199201

SABLE,TRIM4#

main71074-10500-03iEP82..S,SI198912-199201

GRAY,TRIM1#

main71074-10500-04iEP82..S,SI198912-199201

BLUE,TRIM8#

main71074-10550-03iEP8#,NP80..X,XLTD198912-199201

GRAY,TRIM1#

main71074-10550-06iEP8#,NP80..X,XLTD198912-199201

SABLE,TRIM4#

main71074-10560-03iEP82..GI198912-199201

GRAY,TRIM1#

main71074-10560-04iEP82..GI198912-199201

BLUE,TRIM8#

main71074-10570-03iEP82..TBO198912-199201

GRAY,TRIM1#

main71074-10570-03iEP82..TBO198912-199201

main71074-10570-04iEP82..GI198912-199201

BLUE,TRIM8#

main71074-10570-04iEP82..TBO198912-199201

main71074-10590-03iEP82..CAN,CANSI198912-199201

GRAY,TRIM1#

main71074-10600-B0iEP82,NP80..SOL199201-199405

GRAY,TRIM1#

main71074-10610-B0iEP8#..SOLL199201-199405

GRAY,TRIM1#

main71074-10610-E0iEP8#..SOLL199201-199405

OAK,TRIM4#

main71074-10620-B0iEP8#..CAN,S199201-199405

GRAY,TRIM1#

main71074-10630-B0iEP8#,NP80..XLTD199201-199405

GRAY,TRIM1#

main71074-10630-E0iEP8#,NP80..XLTD199201-199405

OAK,TRIM4#

main71074-10640-C0iEP82..GI,GT199201-199405

BLACK,TRIM1#

main71074-10670-J0iEP8#..3D..SOLL199408-199504

main71074-10710-J0iEP82..SOLL199110-199112

main71074-10720-J0iEP8#..3D..SOLL199312-199403

main71074-10730-B0iEP8#..SOLL199308-199311

main71074-10730-E0iEP8#..SOLL199308-199311

main71074-10740-B0iEP82,NP80..SOL199405-199601

GRAY,TRIM1#

main71074-10750-B0iEP8#..SOLL199405-199601

GRAY,TRIM1#

main71074-10760-B0iEP82..GI199505-199512

sub71074-10761

main71074-10760-B0iEP8#..S199405-199601

GRAY,TRIM1#

sub71074-10761

main71074-10770-B0iEP8#,NP80..XLTD199405-199601

GRAY,TRIM1#

main71074-10780-C0iEP82..GI,GT199405-199601

BLACK,TRIM1#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-17130-01iEP82..TBO198912-199212

sub71410-17130

sub71410-3D240

main71410-1C260-03iEP82,NP80..SOL198912-199201

***,GRAY,TRIM1#

main71410-1C270-03iEP82..SOLL198912-199201

***,GRAY,TRIM1#

main71410-1C270-06iEP82..SOLL198912-199201

***,SABLE,TRIM4#

main71410-1C280-03iEP82..CAN,CANSI,S,SI198912-199201

***,GRAY,TRIM1#

main71410-1C280-04iEP82..S,SI198912-199201

***,BLUE,TRIM8#

main71410-1C290-03iEP82,NP80..X198912-199201

***,GRAY,TRIM1#

main71410-1C290-06iEP82,NP80..X198912-199201

***,SABLE,TRIM4#

main71410-1C300-03iEP82..GI198912-199201

***,GRAY,TRIM1#

main71410-1C300-04iEP82..GI198912-199201

***,BLUE,TRIM8#

main71410-1C310-03iEP82..TBO198912-199201

main71410-1C310-03iEP82..GI198912-199201

***,GRAY,TRIM1#

main71410-1C310-04iEP82..TBO198912-199201

main71410-1C310-04iEP82..TBO198912-199201

***,BLUE,TRIM8#

main71410-1C400-B0iEP82,NP80..SOL199201-199212

***,GRAY,TRIM1#

main71410-1C401-B0iEP82,NP80..SOL199212-199405

***,GRAY,TRIM1#

main71410-1C410-B0iEP82..SOLL199201-199212

***,GRAY,TRIM1#

main71410-1C410-E0iEP82..SOLL199201-199212

***,OAK,TRIM4#

main71410-1C411-B0iEP82..SOLL199212-199405

***,GRAY,TRIM1#

main71410-1C411-E0iEP82..SOLL199212-199405

***,OAK,TRIM4#

main71410-1C420-B0iEP82..CAN,S199201-199212

***,GRAY,TRIM1#

main71410-1C421-B0iEP82..CAN,S199212-199405

***,GRAY,TRIM1#

main71410-1C430-B0iEP82,NP80..XLTD199201-199212

***,GRAY,TRIM1#

main71410-1C430-E0iEP82,NP80..XLTD199201-199212

***,OAK,TRIM4#

main71410-1C431-B0iEP82,NP80..XLTD199212-199405

***,GRAY,TRIM1#

main71410-1C431-E0iEP82,NP80..XLTD199212-199405

***,OAK,TRIM4#

main71410-1C440-C0iEP82..GI,GT199201-199212

***,BLACK,TRIM1#

main71410-1C441-C0iEP82..GI,GT199212-199405

***,BLACK,TRIM1#

main71410-1C460-03iEP85..SOLL199008-199201

***,GRAY,TRIM1#

main71410-1C460-06iEP85..SOLL199008-199201

***,SABLE,TRIM4#

main71410-1C470-03iEP85..XLTD199008-199201

***,GRAY,TRIM1#

main71410-1C470-06iEP85..XLTD199008-199201

***,SABLE,TRIM4#

main71410-1C480-B0iEP85..SOLL199201-199212

***,GRAY,TRIM1#

main71410-1C480-E0iEP85..SOLL199201-199212

***,OAK,TRIM4#

main71410-1C481-B0iEP85..SOLL199212-199405

***,GRAY,TRIM1#

main71410-1C481-E0iEP85..SOLL199212-199405

***,OAK,TRIM4#

main71410-1C490-B0iEP85..S199201-199212

***,GRAY,TRIM1#

main71410-1C491-B0iEP85..S199212-199405

***,GRAY,TRIM1#

main71410-1C500-B0iEP85..XLTD199201-199212

***,GRAY,TRIM1#

main71410-1C500-E0iEP85..XLTD199201-199212

***,OAK,TRIM4#

main71410-1C501-B0iEP85..XLTD199212-199405

***,GRAY,TRIM1#

main71410-1C501-E0iEP85..XLTD199212-199405

***,OAK,TRIM4#

main71410-1C580-C0iEP82..TBO199212-199601

main71410-1C620-B0iEP82,NP80..SOL199405-199601

***,GRAY,TRIM1#

main71410-1C630-B0iEP82..SOLL199405-199601

***,GRAY,TRIM1#

main71410-1C640-B0iEP82..S199405-199601

***,GRAY,TRIM1#

main71410-1C650-B0iEP82,NP80..XLTD199405-199601

***,GRAY,TRIM1#

main71410-1C660-C0iEP82..GI,GT199405-199601

***,BLACK,TRIM1#

main71410-1C670-B0iEP85..SOLL199405-199601

***,GRAY,TRIM1#

main71410-1C680-B0iEP85..S199405-199601

***,GRAY,TRIM1#

main71410-1C690-B0iEP85..XLTD199405-199601

***,GRAY,TRIM1#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-17130-01iEP82..GI,GT198912-199212

sub71420-17130

sub71420-35450

main71420-1C050-03iEP82,NP80..SOL198912-199201

***,GRAY,TRIM1#

main71420-1C060-03iEP82..SOLL198912-199201

***,GRAY,TRIM1#

main71420-1C060-06iEP82..SOLL198912-199201

***,SABLE,TRIM4#

main71420-1C070-03iEP82..CAN,CANSI,S,SI198912-199201

***,GRAY,TRIM1#

main71420-1C070-04iEP82..S,SI198912-199201

***,BLUE,TRIM8#

main71420-1C080-03iEP82,NP80..X198912-199201

***,GRAY,TRIM1#

main71420-1C080-06iEP82,NP80..X198912-199201

***,SABLE,TRIM4#

main71420-1C090-03iEP82..GI198912-199201

***,GRAY,TRIM1#

main71420-1C090-04iEP82..GI198912-199201

***,BLUE,TRIM8#

main71420-1C100-03iEP82..TBO198912-199201

***,GRAY,TRIM1#

main71420-1C100-03iEP82..TBO198912-199201

main71420-1C100-04iEP82..GI198912-199201

***,BLUE,TRIM8#

main71420-1C100-04iEP82..TBO198912-199201

main71420-1C190-B0iEP82,NP80..SOL199201-199212

***,GRAY,TRIM1#

main71420-1C191-B0iEP82,NP80..SOL199212-199405

***,GRAY,TRIM1#

main71420-1C200-B0iEP82..SOLL199201-199212

***,GRAY,TRIM1#

main71420-1C200-E0iEP82..SOLL199201-199212

***,OAK,TRIM4#

main71420-1C201-B0iEP82..SOLL199212-199405

***,GRAY,TRIM1#

main71420-1C201-E0iEP82..SOLL199212-199405

***,OAK,TRIM4#

main71420-1C210-B0iEP82..CAN,S199201-199212

***,GRAY,TRIM1#

main71420-1C211-B0iEP82..CAN,S199212-199405

***,GRAY,TRIM1#

main71420-1C220-B0iEP82,NP80..XLTD199201-199212

***,GRAY,TRIM1#

main71420-1C220-E0iEP82,NP80..XLTD199201-199212

***,OAK,TRIM4#

main71420-1C221-B0iEP82,NP80..XLTD199212-199405

***,GRAY,TRIM1#

main71420-1C221-E0iEP82,NP80..XLTD199212-199405

***,OAK,TRIM4#

main71420-1C230-C0iEP82..GI,GT199201-199212

***,BLACK,TRIM1#

main71420-1C231-C0iEP82..GI,GT199212-199405

***,BLACK,TRIM1#

main71420-1C250-03iEP85..SOLL199008-199201

***,GRAY,TRIM1#

main71420-1C250-06iEP85..SOLL199008-199201

***,SABLE,TRIM4#

main71420-1C260-03iEP85..XLTD199008-199201

***,GRAY,TRIM1#

main71420-1C260-06iEP85..XLTD199008-199201

***,SABLE,TRIM4#

main71420-1C270-B0iEP85..SOLL199201-199212

***,GRAY,TRIM1#

main71420-1C270-E0iEP85..SOLL199201-199212

***,OAK,TRIM4#

main71420-1C271-B0iEP85..SOLL199212-199405

***,GRAY,TRIM1#

main71420-1C271-E0iEP85..SOLL199212-199405

***,OAK,TRIM4#

main71420-1C280-B0iEP85..S199201-199212

***,GRAY,TRIM1#

main71420-1C281-B0iEP85..S199212-199405

***,GRAY,TRIM1#

main71420-1C290-B0iEP85..XLTD199201-199212

***,GRAY,TRIM1#

main71420-1C290-E0iEP85..XLTD199201-199212

***,OAK,TRIM4#

main71420-1C291-B0iEP85..XLTD199212-199405

***,GRAY,TRIM1#

main71420-1C291-E0iEP85..XLTD199212-199405

***,OAK,TRIM4#

main71420-1C370-C0iEP82..TBO199212-199601

main71420-1C410-B0iEP82,NP80..SOL199405-199601

***,GRAY,TRIM1#

main71420-1C420-B0iEP82..SOLL199405-199601

***,GRAY,TRIM1#

main71420-1C430-B0iEP82..S199405-199601

***,GRAY,TRIM1#

main71420-1C440-B0iEP82,NP80..XLTD199405-199601

***,GRAY,TRIM1#

main71420-1C450-C0iEP82..GI,GT199405-199601

***,BLACK,TRIM1#

main71420-1C460-B0iEP85..SOLL199405-199601

***,GRAY,TRIM1#

main71420-1C470-B0iEP85..S199405-199601

***,GRAY,TRIM1#

main71420-1C480-B0iEP85..XLTD199405-199601

***,GRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-17290-01iEP82..GI,GT198912-199405

sub71430-17290

main71430-17291-C0iEP82..TBO199405-199601

main71430-1C190-03iEP82,NP80..SOL198912-199201

***,GRAY,TRIM1#

main71430-1C200-03iEP8#..SOLL198912-199201

***,GRAY,TRIM1#

main71430-1C200-06iEP8#..SOLL198912-199201

***,SABLE,TRIM4#

main71430-1C210-03iEP82..S,SI198912-199201

***,GRAY,TRIM1#

main71430-1C210-04iEP82..S,SI198912-199201

***,BLUE,TRIM8#

main71430-1C220-03iEP8#,NP80..X,XLTD198912-199201

***,GRAY,TRIM1#

main71430-1C220-06iEP8#,NP80..X,XLTD198912-199201

***,SABLE,TRIM4#

main71430-1C230-03iEP82..GI198912-199201

***,GRAY,TRIM1#

main71430-1C230-04iEP82..GI198912-199201

***,SABLE,TRIM8#

main71430-1C240-03iEP82..GI198912-199201

main71430-1C240-03iEP82..TBO198912-199201

***,GRAY,TRIM1#

main71430-1C240-04iEP82..GI198912-199201

***,BLUE,TRIM8#

main71430-1C240-04iEP82..GI198912-199201

main71430-1C300-03iEP82..CAN,CANSI198912-199201

***,GRAY,TRIM1#

main71430-1C310-B0iEP82,NP80..SOL199201-199405

***,GRAY,TRIM1#

main71430-1C320-B0iEP8#..SOLL199201-199405

***,GRAY,TRIM1#

main71430-1C320-E0iEP8#..SOLL199201-199405

***,OAK,TRIM4#

main71430-1C330-B0iEP8#..CAN,S199201-199405

***,GRAY,TRIM1#

main71430-1C340-B0iEP8#,NP80..XLTD199201-199405

***,GRAY,TRIM1#

main71430-1C340-E0iEP8#,NP80..XLTD199201-199405

***,OAK,TRIM4#

main71430-1C350-C0iEP82..GI,GT199201-199405

***,BLACK,TRIM1#

main71430-1C420-B0iEP82,NP80..SOL199405-199601

***,GRAY,TRIM1#

main71430-1C430-B0iEP8#..SOLL199405-199601

***,GRAY,TRIM1#

main71430-1C440-B0iEP8#..S199405-199601

***,GRAY,TRIM1#

main71430-1C450-B0iEP8#,NP80..XLTD199405-199601

***,GRAY,TRIM1#

main71430-1C460-C0iEP82..GI,GT199405-199601

***,BLACK,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-17290-01iEP82..TBO198912-199405

sub71440-17290

main71440-17291-C0iEP82..TBO199405-199601

main71440-1C160-03iEP82,NP80..SOL198912-199201

***,GRAY,TRIM1#

main71440-1C170-03iEP8#..SOLL198912-199201

***,GRAY,TRIM1#

main71440-1C170-06iEP8#..SOLL198912-199201

***,SABLE,TRIM4#

main71440-1C180-03iEP82..S,SI198912-199201

***,GRAY,TRIM1#

main71440-1C180-04iEP82..S,SI198912-199201

***,BLUE,TRIM8#

main71440-1C190-03iEP8#,NP80..X,XLTD198912-199201

***,GRAY,TRIM1#

main71440-1C190-06iEP8#,NP80..X,XLTD198912-199201

***,SABLE,TRIM4#

main71440-1C200-03iEP82..GI198912-199201

***,GRAY,TRIM1#

main71440-1C200-04iEP82..GI198912-199201

***,SABLE,TRIM8#

main71440-1C210-03iEP82..GI198912-199201

***,GRAY,TRIM1#

main71440-1C210-03iEP82..TBO198912-199201

main71440-1C210-04iEP82..GI198912-199201

***,BLUE,TRIM8#

main71440-1C210-04iEP82..GI198912-199201

main71440-1C270-03iEP82..CAN,CANSI198912-199201

***,GRAY,TRIM1#

main71440-1C280-B0iEP82,NP80..SOL199201-199405

***,GRAY,TRIM1#

main71440-1C290-B0iEP8#..SOLL199201-199405

***,GRAY,TRIM1#

main71440-1C290-E0iEP8#..SOLL199201-199405

***,OAK,TRIM4#

main71440-1C300-B0iEP8#..CAN,S199201-199405

***,GRAY,TRIM1#

main71440-1C310-B0iEP8#,NP80..XLTD199201-199405

***,GRAY,TRIM1#

main71440-1C310-E0iEP8#,NP80..XLTD199201-199405

***,OAK,TRIM4#

main71440-1C320-C0iEP82..GI,GT199201-199405

***,BLACK,TRIM1#

main71440-1C400-B0iEP82,NP80..SOL199405-199601

***,GRAY,TRIM1#

main71440-1C410-B0iEP8#..SOLL199405-199601

***,GRAY,TRIM1#

main71440-1C420-B0iEP8#..S199405-199601

***,GRAY,TRIM1#

main71440-1C430-B0iEP8#,NP80..XLTD199405-199601

***,GRAY,TRIM1#

main71440-1C440-C0iEP82..GI,GT199405-199601

***,BLACK,TRIM1#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-10050iEP8#,NP80..SOL,SOLL198912-199601

main71505-10060iEP82..GI199505-199512

main71505-10060iEP82..CAN,CANSI,GI,S,SI198912-199601

main71505-10070iEP82..GI,GT199201-199601

main71505-10070iEP82..GI198912-199201

main71505-10080iEP8#,NP80..X,XLTD198912-199601

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71506-10050iEP8#,NP80..SOL,SOLL198912-199601

main71506-10060iEP8#..CAN,S198912-199601

main71506-10060iEP82..GI199505-199512

main71506-10070iEP82..GI198912-199201

main71506-10070iEP82..GI,GT199201-199601

main71506-10080iEP8#,NP80..X,XLTD198912-199601

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-10160iEP8#,NP80..SOL,SOLL,X,XLTD198912-199601

main71511-10230iEP8#..CAN,CANSI,GI,GT,S,SI198912-199601

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-10160iEP8#,NP80..SOL,SOLL,X,XLTD198912-199601

main71511-10230iEP8#..CAN,CANSI,GI,GT,S,SI198912-199601

71553BPAD, FRONT SEATBACK, B

main71553-10030iEP8#,NP80198912-199601

71554PAD, FRONT SEATBACK, C

main71553-10030iEP8#,NP80198912-199601

9011908970

main90119-08970

9038612039

main90386-12039

9046818071

main90468-18071

19 parts on this diagram · 6 diagrams in section
