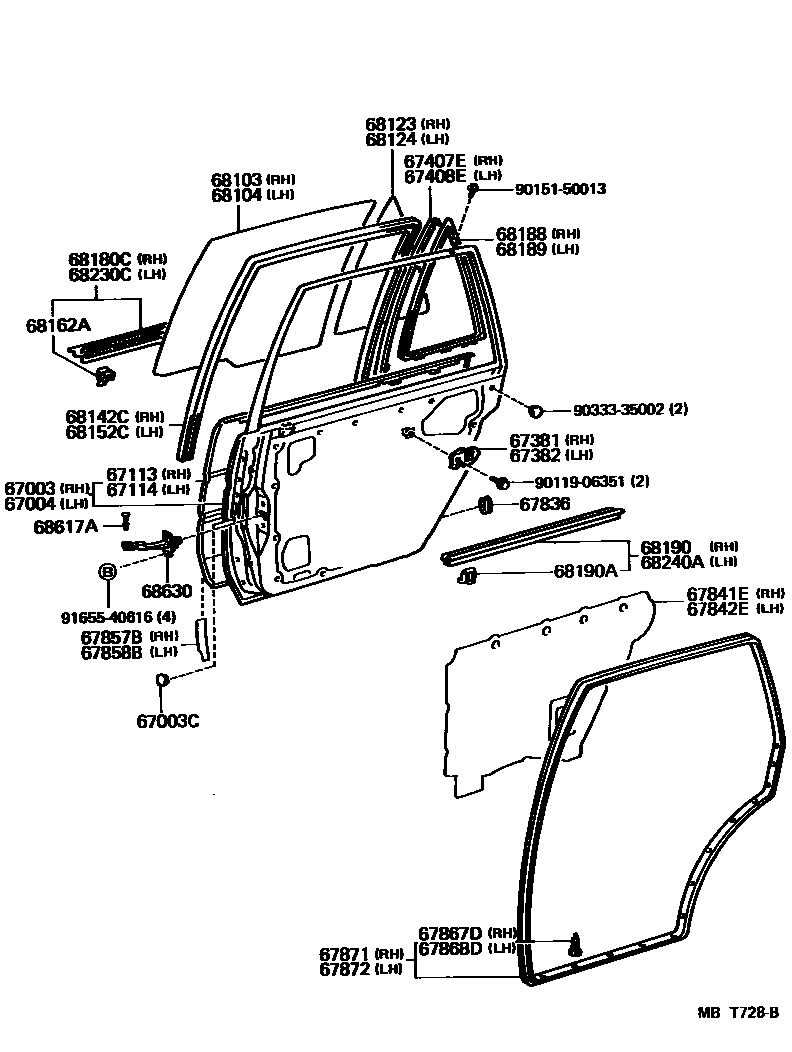

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-10100iEP82,NP80..5D198912-199008

sub67003-10101

main67003-10101iEP8#,NP80..5D..(SI,SOL,SOLL,X)199008-199201

sub67003-10111

sub90950-01060

main67003-10102iEP8#,NP80..5D..(SOL,SOLL)199201-199301

sub67003-10112

sub90950-01060

main67003-10110iEP82,NP80..5D..(SI,SOLL,X)198912-199008

sub67003-10111

main67003-10111iEP8#,NP80..5D..(SI,SOLL,X)199008-199201

sub67003-10112

main67003-10112iEP8#,NP80..XLTD199201-199301

main67003-10112iEP8#,NP80..5D199301-199601

67003CCUSHION, REAR DOOR PANEL

main90541-09064iEP8#,NP80..5D198912-199601

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-10110iEP82,NP80..5D..(SOL,SOLL)198912-199008

sub67004-10111

main67004-10111iEP8#,NP80..5D..(SI,SOL,SOLL,X)198912-199201

sub67004-10121

sub90950-01060

main67004-10111iEP82..X198912-199201

sub67004-10121

sub90950-01060

main67004-10112iEP8#,NP80..5D..(SOL,SOLL)199201-199301

sub67004-10122

sub90950-01060

main67004-10120iEP82..5D..SOLL198912-199008

sub67004-10121

main67004-10121iEP8#,NP80..5D..(SI,SOLL,X)198912-199201

sub67004-10122

main67004-10122iEP8#,NP80..XLTD199201-199301

main67004-10122iEP8#,NP80..5D199301-199601

67113PANEL, REAR DOOR, OUTER RH

main67113-10090iEP8#,NP80..5D198912-199601

67114PANEL, REAR DOOR, OUTER LH

main67114-10080iEP8#,NP80..5D198912-199601

67381BRACKET, REAR DOOR INSIDE PANEL, NO.1 RH

main67381-10010iEP8#,NP80..5D198912-199601

67382BRACKET, REAR DOOR INSIDE PANEL, NO.1 LH

main67382-10010iEP8#,NP80..5D198912-199601

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-10050iEP8#,NP80..5D198912-199601

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-10050iEP8#,NP80..5D198912-199601

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12030iEP8#,NP80..5D198912-199601

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-10040iEP8#,NP80..5D198912-199601

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-10040iEP8#,NP80..5D198912-199601

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-10020iEP8#,NP80..5D199405-199601

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-10020iEP8#,NP80..5D199405-199601

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-10010iEP8#,NP80..5D198912-199601

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-10010iEP8#,NP80..5D198912-199601

67871WEATHERSTRIP, REAR DOOR, RH

main67871-10070iEP82,NP80..5D198912-199003

sub67871-10080

main67871-10080iEP8#,NP80..5D199003-199601

67872WEATHERSTRIP, REAR DOOR, LH

main67872-10070iEP82,NP80..5D198912-199003

sub67872-10080

main67872-10080iEP8#,NP80..5D199003-199601

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-10110iEP8#,NP80..5D..(SOL,SOLL,X)198912-199601

sub68113-10120

main68113-10110iEP8#,NP80..5D..XLTD199008-199405

sub68113-10120

main68113-10130iEP8#,NP80..5D..(SI,XLTD)198912-199405

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-10110iEP8#,NP80..5D..XLTD199008-199405

sub68114-10120

main68114-10110iEP8#,NP80..5D..(SOL,SOLL,X)198912-199601

sub68114-10120

main68114-10130iEP8#,NP80..5D..(SI,XLTD)198912-199405

68123GLASS, REAR DOOR WINDOW, RH

main68123-10130iEP8#,NP80..5D..(SOL,SOLL,X)198912-199601

sub68123-10140

main68123-10130iEP8#,NP80..5D..XLTD199008-199405

sub68123-10140

main68123-10150iEP8#,NP80..5D..(SI,XLTD)198912-199405

68124GLASS, REAR DOOR WINDOW, LH

main68124-10130iEP8#,NP80..5D..XLTD199008-199405

sub68124-10140

main68124-10130iEP8#,NP80..5D198912-199601

sub68124-10140

main68124-10150iEP8#,NP80..5D..(SI,XLTD)198912-199405

68142CRUN, REAR DOOR GLASS, RH

main68142-10050iEP8#,NP80..5D198912-199201

main68142-10060iEP8#,NP80..5D199201-199601

68152CRUN, REAR DOOR GLASS, LH

main68152-10010iEP8#,NP80..5D198912-199201

main68152-10020iEP8#,NP80..5D199201-199601

68162ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-10090iEP8#,NP80..5D198912-199405

sub68212-10010

main68212-10010iEP8#,NP80..5D198912-199601

main68212-10010iEP8#,NP80..5D199405-199601

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-10080iEP8#,NP80..5D198912-199601

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-10040iEP8#,NP80..5D198912-199601

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-10040iEP8#,NP80..5D198912-199601

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-10050iEP8#,NP80..5D..(SOLL,XLTD)199201-199601

main68190-10060iEP82,NP80..5D..SOL198912-199601

68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10100iEP82,NP80..5D..SOL198912-199601

main68211-10100iEP82,NP80..5D..SOL199301-199601

main68212-10020iEP82,NP80..5D..SOL198912-199301

sub68211-10100

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-10040iEP8#,NP80..5D198912-199601

68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH

main68174-10040iEP8#,NP80..5D..(SOLL,XLTD)199201-199601

main68240-10040iEP82,NP80..5D..SOL198912-199601

68617APIN, REAR DOOR CHECK

main68617-12030iEP8#,NP80..5D198912-199601

68630CHECK ASSY, REAR DOOR

main68630-10030iEP8#,NP80..5D198912-199201

main68630-10040iEP8#,NP80..5D199201-199204

main68630-10040iEP8#,NP80..5D199204-199601

main68640-10010iEP8#,NP80..5D199201-199204

sub68630-10040

9011906351

main90119-06351

9015150013

main90151-50013

9033335002

main90333-35002

9165540616

main91655-40616

38 parts on this diagram · 2 diagrams in section
