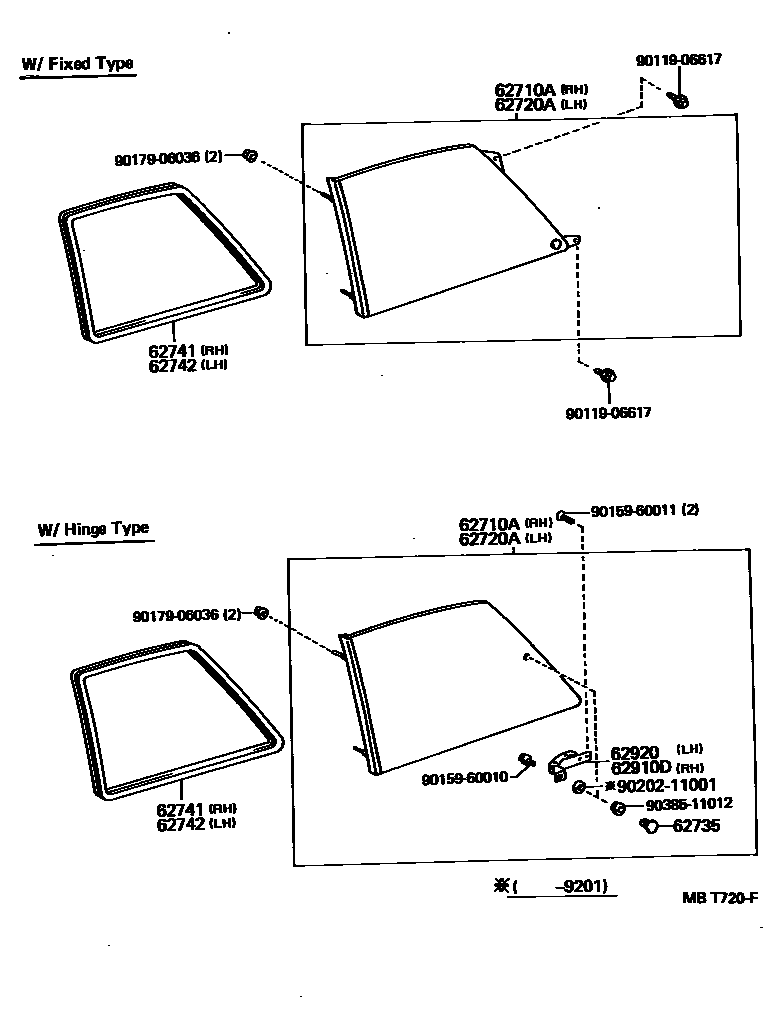

QUARTER WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-10210iEP8#,NP80..3D..(CAN,SOL,SOLL)198912-199601

sub62710-10220

main62710-10230iEP8#..3D..(CAN,SOLL)198912-199201

main62710-10240iEP8#..3D..(CANSI,XLTD)198912-199201

sub62710-10250

main62710-10260iEP82..3D..(GI,GT,S,SI)198912-199201

62720AWINDOW ASSY, QUARTER, LH

main62720-10190iEP8#,NP80..3D..(CAN,SOL,SOLL)198912-199601

sub62720-10200

main62720-10210iEP8#..3D..(CAN,SOLL)198912-199201

main62720-10220iEP8#..3D..(CANSI,XLTD)198912-199201

sub62720-10230

main62720-10240iEP82..3D..(GI,GT,S,SI)198912-199201

62735RETAINER, QUARTER WINDOW HINGE

main62735-10030×2iEP8#..3D..(CANSI,GI,GT,S,SI,XLTD)198912-199601

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-10090iEP8#,NP80..3D198912-199601

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-10090iEP8#,NP80..3D198912-199601

62910DLOCK ASSY, QUARTER WINDOW

main62910-10080iEP8#..3D..(CANSI,GI,GT,S,SI,XLTD)198912-199601

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-10080iEP8#..3D..(CANSI,GI,GT,S,SI,XLTD)198912-199601

9011906617

main90119-06617

9015960010

main90159-60010

9015960011

main90159-60011

9017906036

main90179-06036

9020211001

main90202-11001

9038511012

main90385-11012

13 parts on this diagram · 1 diagram in section
