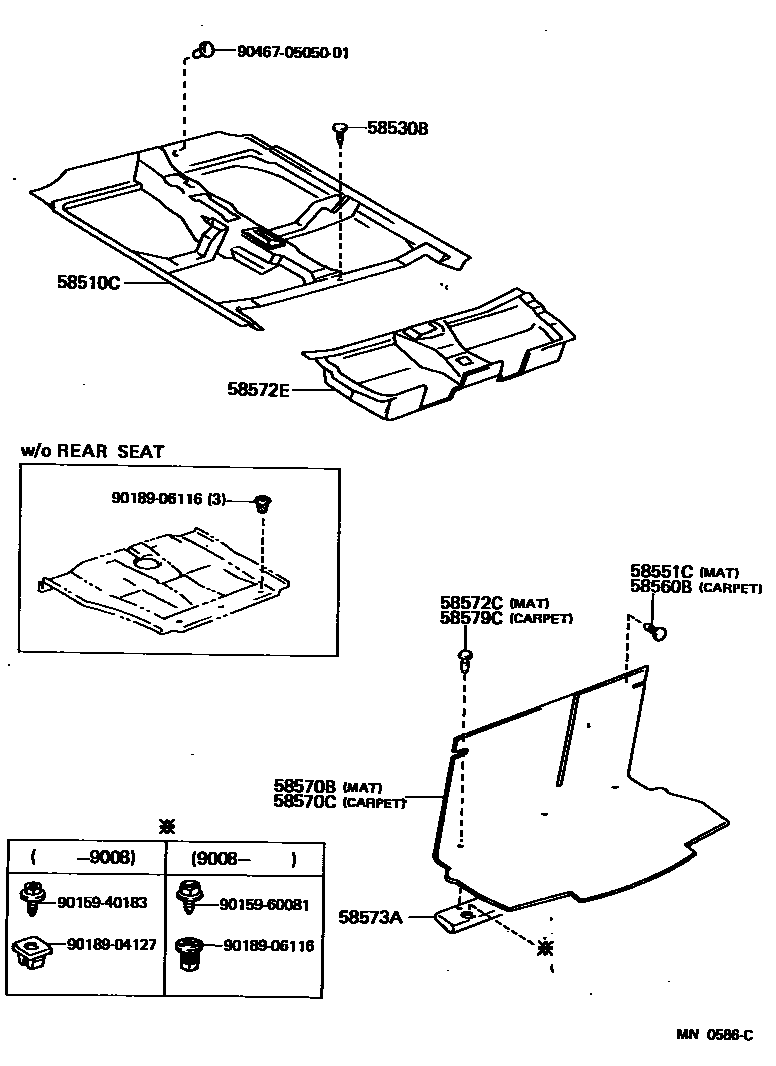

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1C090-03iEP82,NP80..3D..(CAN,SOL,SOLL)198912-199102

main58510-1C090-06iEP82..3D..SOLL198912-199102

main58510-1C091-E0iEP82..3D..SOLL199102-199201

main58510-1C091-J0iEP82..3D..SOLL199110-199112

main58510-1C091-P0iEP82,NP80..3D..(CAN,SOL,SOLL)199102-199201

main58510-1C110-03iEP82..3D..SOL198912-199102

GRAY,TRIM1#

main58510-1C111-P0iEP82..3D..SOL199102-199201

GRAY,TRIM1#

main58510-1C120-03iNP80..3D;EP82..3D..(CAN,SOLL)198912-199102

GRAY,TRIM1#

main58510-1C120-06iEP82..3D..SOLL198912-199102

SABLE,TRIM4#

main58510-1C121-E0iEP82..3D..SOLL199102-199201

SABLE,TRIM4#

main58510-1C121-J0iEP82..3D..SOLL199110-199112

BLUE,TRIM8#

main58510-1C121-P0iNP80..3D;EP82..3D..(CAN,SOLL)199102-199201

GRAY,TRIM1#

main58510-1C140-03iEP82..3D..(CANSI,GI,GT,S,SI)198912-199102

GRAY,TRIM1#

main58510-1C140-04iEP82..3D..(GI,GT,S,SI)198912-199102

BLUE,TRIM8#

main58510-1C141-P0iEP82..3D..(CANSI,GI,GT,S,SI)199102-199201

GRAY,TRIM1#

main58510-1C141-W3iEP82..3D..(GI,GT,S,SI)199102-199201

BLUE,TRIM8#

main58510-1C200-B0iEP85..S199201-199212

GRAY,TRIM1#

main58510-1C201-B0iEP85..S199212-199601

GRAY,TRIM1#

main58510-1C210-B0iEP85..S199201-199212

main58510-1C211-B0iEP85..S199212-199601

main58510-1C220-B0iEP85..XLTD199201-199212

GRAY,TRIM1#

main58510-1C220-E0iEP85..XLTD199201-199212

OAK,TRIM4#

main58510-1C221-B0iEP85..XLTD199212-199601

GRAY,TRIM1#

main58510-1C221-E0iEP85..XLTD199212-199405

OAK,TRIM4#

main58510-1C230-B0iEP85..XLTD199201-199212

main58510-1C230-E0iEP85..XLTD199201-199212

main58510-1C231-B0iEP85..XLTD199212-199601

main58510-1C231-E0iEP85..XLTD199212-199405

main58510-1C240-03iEP82..5D..SOL198912-199102

GRAY,TRIM1#

main58510-1C241-P0iEP82..5D..SOL199102-199201

GRAY,TRIM1#

main58510-1C250-03iNP80..5D;EP82..5D..(SOLL,X)198912-199102

GRAY,TRIM1#

main58510-1C250-06iEP82,NP80..5D..(SOLL,X)198912-199102

SABLE,TRIM4#

main58510-1C251-E0iEP82,NP80..5D..(SOLL,X)199102-199201

SABLE,TRIM4#

main58510-1C251-J0iEP82..5D..SOLL199110-199112

BLUE,TRIM8#

main58510-1C251-P0iNP80..5D;EP82..5D..(SOLL,X)199102-199201

GRAY,TRIM1#

main58510-1C260-B0iEP82..3D..SOL199201-199212

GRAY,TRIM1#

main58510-1C261-B0iEP82..3D..SOL199212-199601

GRAY,TRIM1#

main58510-1C270-03iEP82..5D..EFI198912-199102

GRAY,TRIM1#

main58510-1C270-04iEP82..5D..EFI198912-199102

BLUE,TRIM8#

main58510-1C271-P0iEP82..5D..EFI199102-199201

GRAY,TRIM1#

main58510-1C271-W3iEP82..5D..EFI199102-199201

BLUE,TRIM8#

main58510-1C300-03iEP82,NP80..5D..(CBR,DSL)198912-199102

main58510-1C300-06iEP82,NP80..5D..(SOLL,X)198912-199102

main58510-1C301-E0iEP82,NP80..5D..(SOLL,X)199102-199201

main58510-1C301-J0iEP82..5D..SOLL199110-199112

main58510-1C301-P0iEP82,NP80..5D..(CBR,DSL)199102-199201

main58510-1C330-03iEP82..5D..EFI198912-199102

main58510-1C330-04iEP82..5D..EFI198912-199102

main58510-1C331-J0iEP82..5D..EFI199102-199201

main58510-1C331-P0iEP82..5D..EFI199102-199201

main58510-1C340-B0iEP82..3D..SOL199201-199212

main58510-1C340-E0iEP82..3D..SOLL199201-199212

OAK,TRIM4#

main58510-1C341-B0iEP82..3D..SOL199212-199601

main58510-1C341-E0iEP82..3D..SOLL199212-199405

OAK,TRIM4#

main58510-1C360-03iEP82..3D..(CANSI,GI,GT,S,SI)198912-199102

main58510-1C360-04iEP82..3D..(GI,GT,S,SI)198912-199102

main58510-1C361-P0iEP82..3D..(CANSI,GI,GT,S,SI)199102-199201

main58510-1C361-W3iEP82..3D..(GI,GT,S,SI)199102-199201

main58510-1C370-B0iEP82..3D..(4FC,5F)199201-199212

GRAY,TRIM1#

main58510-1C371-B0iEP82..3D..(4FC,5F)199212-199601

GRAY,TRIM1#

main58510-1C380-03iEP85..3D199008-199102

GRAY,TRIM1#

main58510-1C380-06iEP85..3D199008-199102

SABLE,TRIM4#

main58510-1C381-B0iEP85..3D..(SOLL,XLTD)199102-199212

GRAY,TRIM1#

main58510-1C381-E2iEP85..3D..(SOLL,XLTD)199102-199212

SABLE,TRIM4#

main58510-1C382-B0iEP85..3D..SOLL199212-199601

GRAY,TRIM1#

main58510-1C382-E1iEP85..3D..SOLL199212-199405

OAK,TRIM4#

main58510-1C390-03iEP85..3D199008-199102

main58510-1C390-06iEP85..3D199008-199102

main58510-1C391-B0iEP85..3D..(SOLL,XLTD)199102-199212

main58510-1C391-E2iEP85..3D..(SOLL,XLTD)199102-199212

main58510-1C392-B0iEP85..3D..SOLL199212-199601

main58510-1C392-E1iEP85..3D..SOLL199212-199405

main58510-1C400-03iEP85..5D199008-199102

GRAY,TRIM1#

main58510-1C400-06iEP85..5D199008-199102

SABLE,TRIM4#

main58510-1C401-B0iEP85..5D..CBR;EP85..5D..SOLL..EFI199102-199212

GRAY,TRIM1#

main58510-1C401-E2iEP85..5D..CBR;EP85..5D..SOLL..EFI199102-199212

SABLE,TRIM4#

main58510-1C402-B0iEP85..5D..SOLL199212-199601

GRAY,TRIM1#

main58510-1C402-E1iEP85..5D..SOLL199212-199405

OAK,TRIM4#

main58510-1C410-03iEP85..5D199008-199102

main58510-1C410-06iEP85..5D199008-199102

main58510-1C411-B0iEP85..5D..CBR;EP85..5D..SOLL..EFI199102-199212

main58510-1C411-E2iEP85..5D..CBR;EP85..5D..SOLL..EFI199102-199212

main58510-1C412-B0iEP85..5D..SOLL199212-199601

main58510-1C412-E1iEP85..5D..SOLL199212-199405

main58510-1C420-B0iEP82..3D..SOL199201-199212

main58510-1C420-E0iEP82..3D..SOLL199201-199212

main58510-1C421-B0iEP82..3D..SOL199212-199601

main58510-1C421-E0iEP82..3D..SOLL199212-199405

main58510-1C430-B0iEP82..3D..(4FC,5F)199201-199212

main58510-1C431-B0iEP82..3D..(4FC,5F)199212-199601

main58510-1C440-B0iEP82..5D..SOL199201-199212

GRAY,TRIM1#

main58510-1C441-B0iEP82..5D..SOL199212-199601

GRAY,TRIM1#

main58510-1C450-B0iEP82..5D..SOL199201-199212

main58510-1C450-E0iEP82..5D..SOLL199201-199212

OAK,TRIM4#

main58510-1C451-B0iEP82..5D..SOL199212-199601

main58510-1C451-E0iEP82..5D..SOLL199212-199405

OAK,TRIM4#

main58510-1C470-B0iEP82,NP80..XLTD199201-199212

GRAY,TRIM1#

main58510-1C470-E0iEP82,NP80..XLTD199201-199212

OAK,TRIM4#

main58510-1C471-B0iEP82,NP80..XLTD199212-199601

GRAY,TRIM1#

main58510-1C471-E0iEP82,NP80..XLTD199212-199405

OAK,TRIM4#

main58510-1C480-B0iEP82,NP80..XLTD199201-199212

main58510-1C480-E0iEP82,NP80..XLTD199201-199212

main58510-1C481-B0iEP82,NP80..XLTD199212-199601

main58510-1C481-E0iEP82,NP80..XLTD199212-199405

main58510-1C490-B0iEP82..5D..SOL199201-199212

main58510-1C490-E0iEP82..5D..SOLL199201-199212

main58510-1C491-B0iEP82..5D..SOL199212-199601

main58510-1C491-E0iEP82..5D..SOLL199212-199405

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-01×3iEP82..GI,GT,S,SI198912-199201

BLACK,TRIM1#

sub90467-07049

main90467-06016-E1iEP82,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

sub90467-07049

main90467-06016-P0×3iEP85199201-199411

GRAY,TRIM1#

sub90467-07049

58551CCLIP(FOR FLOOR MAT, REAR)

main90467-06016-01×15iEP8#..SOLL199112-199201

BLACK,TRIM1#,4#

sub90467-07049

main90467-06016-E1×15iEP8#..SOLL199201-199405

OAK,TRIM4#

sub90467-07049

main90467-06016-P0×15iEP85..5D..SOLL;EP82,NP80..SOL,SOLL199201-199405

GRAY,TRIM1#

sub90467-07049

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-06016-01×14iEP82..GI,GT,SI198912-199201

sub90467-07049

main90467-06016-E1×14iEP8#,NP80..XLTD199201-199405

OAK,TRIM4#

sub90467-07049

main90467-06016-P0×13iEP85..S,SOLL199201-199601

GRAY,TRIM1#

sub90467-07049

58570BMAT ASSY, REAR FLOOR

main58570-10310-03iEP82..(3FC,4F)..(CAN,SOL,SOLL)198912-199309

GRAY,TRIM1#

main58570-10310-04iEP82..SOLL199110-199112

BLUE,TRIM8#

main58570-10310-06iEP82..SOLL198912-199201

SABLE,TRIM4#

main58570-10310-E0iEP82..SOLL199201-199309

OAK,TRIM4#

main58570-10311-E0iEP82..SOLL199309-199405

OAK,TRIM4#

main58570-10311-P0iEP82,NP80..5D..(SOL,SOLL)199309-199405

GRAY,TRIM1#

main58570-10330-03iEP85..SOLL199008-199309

GRAY,TRIM1#

main58570-10330-06iEP85..SOLL199008-199201

SABLE,TRIM4#

main58570-10330-E0iEP85..SOLL199201-199309

OAK,TRIM4#

main58570-10331-E0iEP85..SOLL199309-199405

OAK,TRIM4#

main58570-10331-P0iEP85..SOLL199309-199405

GRAY,TRIM1#

58570CCARPET ASSY, REAR FLOOR

main58570-10220-03iEP82,NP80..S,X198912-199201

main58570-10220-04iEP82..GI,GT,SI198912-199110

BLUE,TRIM8#

main58570-10220-06iEP82..SOLL198912-199201

main58570-10220-E0iEP82,NP80..XLTD199201-199309

OAK,TRIM4#

main58570-10221-E0iEP82,NP80..XLTD199309-199405

OAK,TRIM4#

main58570-10221-P0iEP82,NP80..CAN,GI,GT,XLTD199309-199601

GRAY,TRIM1#

main58570-10290-03iEP82,NP80..S,X198912-199309

GRAY,TRIM1#

main58570-10290-04iEP82..S198912-199201

BLUE,TRIM8#

main58570-10290-06iEP82,NP80..X198912-199201

SABLE,TRIM4#

main58570-10291-P0iEP82..S199309-199405

GRAY,TRIM1#

main58570-10320-03iEP82..CAN,GI,GT199201-199309

GRAY,GRAY,TRIM1#

main58570-10320-06iEP85..XLTD199008-199201

main58570-10320-E0iEP85..XLTD199201-199309

OAK,TRIM4#

main58570-10321-E0iEP85..XLTD199309-199405

OAK,TRIM4#

main58570-10321-P0iEP82..CAN,GI,GT199309-199601

main58570-10340-03iEP85..XLTD199008-199309

main58570-10340-06iEP85..XLTD199008-199201

main58570-10340-E0iEP85..XLTD199201-199309

main58570-10341-E0iEP85..XLTD199309-199405

main58570-10341-P0iEP85..XLTD199309-199601

main58570-10350-03iEP85..SOLL199201-199309

GRAY,TRIM1#

main58570-10350-06iEP85..SOLL199008-199201

main58570-10350-E0iEP85..SOLL199201-199309

OAK,TRIM4#

main58570-10351-E0iEP85..SOLL199309-199405

OAK,TRIM4#

main58570-10351-P0iEP85..S199309-199405

main58570-10360-B0iEP85..S199201-199309

GRAY,TRIM1#

main58570-10361-B0iEP85..S199309-199405

GRAY,TRIM1#

main58570-10370-B0iEP82..TBO199212-199601

main58570-10380-B0iEP82..TBO199212-199601

58572CCLIP, REAR FLOOR MAT SET

main90467-09032-34×3iEP82..SOLL199110-199112

BLUE,TRIM8#

main90467-09032-36×3iEP8#..SOLL198912-199201

SABLE,TRIM4#

main90467-09032-43×3iEP82..(3FC,4F)..(CAN,SOL,SOLL)198912-199308

GRAY,TRIM1#

main90467-09032-E0×3iEP8#..SOLL199201-199309

OAK,TRIM4#

58572EMAT, REAR FLOOR, FRONT

main58572-10010iEP82..SOL..EFI;EP82,NP80..(CAN,SOL,SOLL)..(CBR,DSL)198912-199601

58573APLATE, REAR FLOOR MAT SUPPORT

main58573-10010iEP8#,NP80198912-199212

main58573-10021iEP82..TBO199309-199601

main58573-10031iEP82..TBO199212-199601

58579CCLIP, REAR FLOOR CARPET SET

main90467-09032-34×3iEP82..GI,GT,S,SI199112-199201

BLUE,TRIM8#

main90467-09032-36×3iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main90467-09032-43×3iEP82..TBO199309-199601

GRAY,TRIM1#

main90467-09032-E0×3iEP8#,NP80..(4FC,5F)..(SOLL,XLTD)199201-199309

OAK,TRIM4#

9015940183

main90159-40183

9015960081

main90159-60081

9018904127

main90189-04127

9018906116

main90189-06116

904670505001

main90467-0505001

15 parts on this diagram · 1 diagram in section
