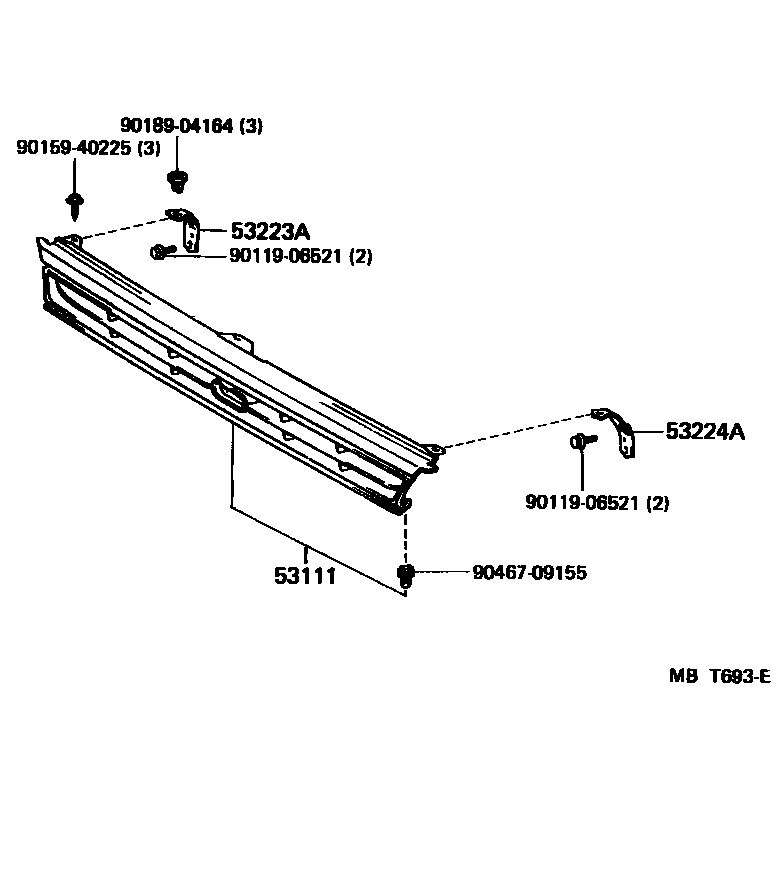

RADIATOR GRILLE

0001 1 0002 1 0003 1

53111GRILLE, RADIATOR

main53101-10270iEP82..S;EP82..5D..4F;EP82..5D..3FC..SOLL199405-199601

main53101-10280-A0iEP8#,NP80..S,SOL,SOLL,XLTD199405-199601

SUPER WHITE 2,040

main53101-10280-B0iEP8#,NP80..S,SOL,SOLL,XLTD199405-199601

SILVER M,199

main53101-10280-C0iEP8#,NP80..S,SOL,SOLL199405-199601

BLACK M,205

main53101-10280-D0iEP8#,NP80..SOLL,XLTD199405-199601

RED MICA M,3K4

main53101-10280-G0iEP8#..3D..SOLL199408-199504

main53101-10280-H0iEP8#,NP80..S,SOLL,XLTD199405-199601

TURQUOISE M.M,746

main53101-10280-J0iEP8#,NP80..S,SOLL,XLTD199405-199601

DARK BLUE M.M,8K0

main53101-10280-J1iEP8#..3D..SOLL199408-199504

main53101-10290-A0iEP82..GI,GT199405-199601

SUPER WHITE 2,040

main53101-10290-B0iEP82..GI,GT199405-199601

SILVER M,199

main53101-10290-C0iEP82..GI,GT199405-199601

BLACK M,205

main53101-10290-H0iEP82..GI,GT199405-199601

TURQUOISE M.M,746

main53111-10350-02iEP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD198912-199201

SUPER RED 2,3E5

main53111-10350-03iEP8#,NP80..S,SI,SOL,SOLL,X,XLTD198912-199201

BLUISH GRAY M,185

main53111-10350-04iEP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD198912-199201

GRAYSH BLUE,8H1

main53111-10350-05iEP8#,NP80..SOLL,X,XLTD198912-199201

BEIGE M,4L5

main53111-10350-08iEP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD198912-199201

SUPER WHITE 2,040

main53111-10350-09iEP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL198912-199201

YELLOW,541

main53111-10350-12iEP8#,NP80..S,SI,SOLL,X,XLTD198912-199201

RED MICA,3H4

main53111-10350-13iEP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD198912-199201

LIGHT BLUISH GRAY,186

main53111-10360-03iEP82..GI,GT198912-199201

BLUISH GRAY M,185

main53111-10360-04iEP82..TBO198912-199201

GRAYSH BLUE,8H1

main53111-10360-07iEP82..GI,GT198912-199201

BLACKISH GREEN M,6L2

main53111-10360-08iEP82..GI,GT198912-199201

SUPER WHITE 2,040

main53111-10360-12iEP82..GI,GT198912-199201

RED MICA,3H4

main53111-10370iEP82..CAN,S;EP82..5D..4F;EP82..5D..3FC..SOLL199201-199405

main53111-10380-A0iEP8#,NP80..CAN,S,SOL,SOLL,XLTD199201-199405

SUPER WHITE 2,040

main53111-10380-B0iEP8#,NP80..CAN,S,SOL,SOLL,XLTD199201-199405

BLUISH GRAY M,182

main53111-10380-C0iEP8#..SOLL199308-199311

main53111-10380-D0iEP8#..CAN,S,SOLL199201-199405

SUPER RED 2,3E5

main53111-10380-D1iEP8#,NP80..XLTD199201-199209

WINE RED MICA,3J8

main53111-10380-G0iEP8#,NP80..S,SOLL,XLTD199201-199405

GREEN M,6M6

main53111-10380-J0iEP8#..SOLL199209-199404

main53111-10390-A0iEP82..GI,GT199201-199405

SUPER WHITE 2,040

main53111-10390-B0iEP82..GI,GT199201-199405

BLUISH GRAY M,182

main53111-10390-C0iEP82..GI,GT199201-199405

BLACK M,205

main53111-10390-G0iEP82..GI,GT199201-199405

GREEN M,6M6

53223ABRACKET, RADIATOR GRILLE MOUNTING

main53223-10100iEP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD198912-199601

main53223-10110iEP82..GI,GT198912-199405

53224ABRACKET, RADIATOR GRILLE MOUNTING, NO.2

main53224-10070iEP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD198912-199601

main53224-10080iEP82..GI,GT198912-199405

9011906521

main90119-06521

9015940225

main90159-40225

9018904164

main90189-04164

9046709155

main90467-09155

7 parts on this diagram · 3 diagrams in section
