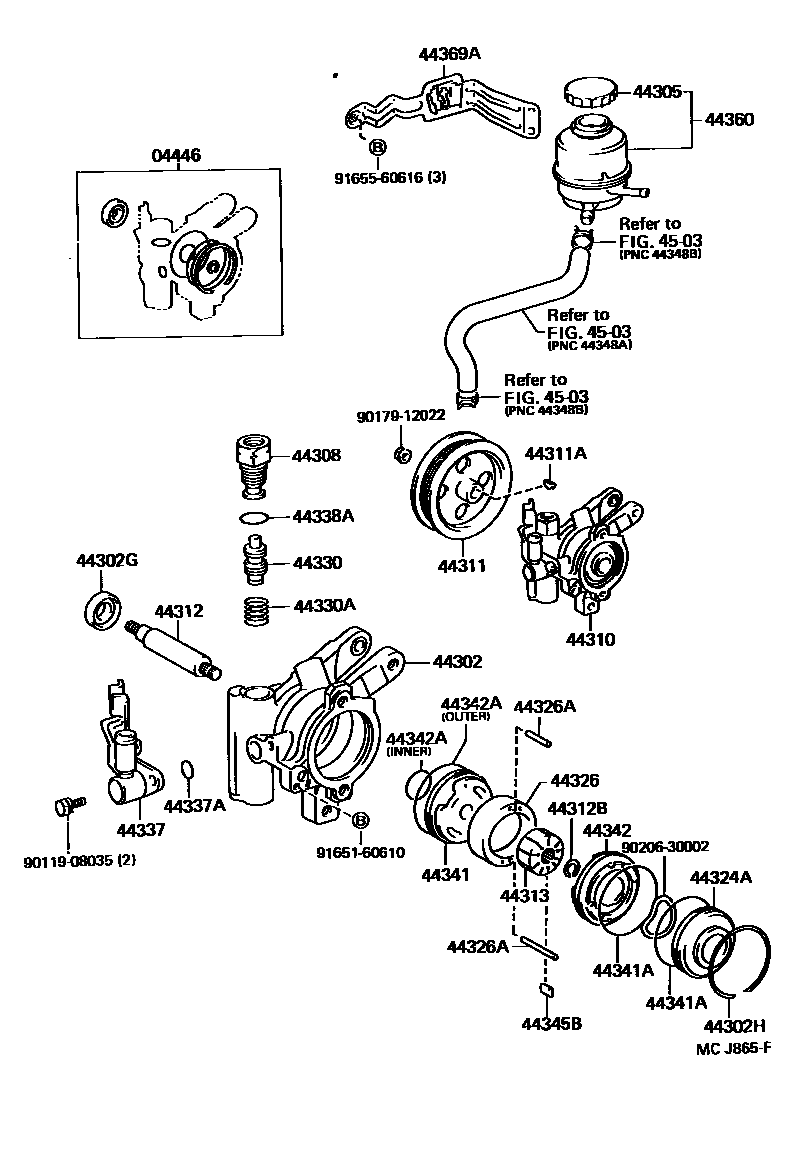

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-10020iEP8#..CBR,EFI198912-199502

main04446-10021iEP8#..EFI199502-199601

main04446-10030iEP82..TBO198912-199502

main04446-10031iEP82..TBO199502-199601

main04446-16061iNP80199502-199509

main04446-20030iNP80198912-199502

sub04446-20031

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-10030iEP82..CBR,EFI198912-199004

main44302-10040iEP82..TBO198912-199601

main44302-12120iEP8#..CBR,EFI199004-199601

main44302-16030iNP80198912-199509

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iEP8#,NP80198912-199601

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-62002iEP8#,NP80198912-199601

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iEP8#,NP80198912-199601

sub44305-22050

44308UNION SUB-ASSY, PRESSURE PORT

main44308-10010iNP80198912-199010

main44308-12032iEP82..TBO199405-199601

sub44308-12042

main44308-18011iEP8#..EFI199405-199601

main44308-20050iNP80199108-199509

44310PUMP ASSY, VANE

main44320-10060iEP82..CBR198912-199201

main44320-10070iEP8#..(4FC,5F)..(CANSI,GI,SI,SOLL,XLTD)198912-199201

main44320-10080iNP80198912-199011

main44320-10081iNP80199011-199108

main44320-10082iNP80199108-199509

main44320-10090iEP82..TBO198912-199601

main44320-10100iEP82..EFI199201-199405

main44320-10101iEP82..EFI199405-199601

main44320-10110iEP85199201-199405

main44320-10111iEP85199405-199601

44311PULLEY, VANE PUMP

main44311-10030iEP8#198912-199601

main44311-12030iNP80198912-199509

44311AKEY, VANE PUMP PULLEY

main90280-05008iEP8#,NP80198912-199601

44312SHAFT, VANE PUMP

main44312-12030iEP8#,NP80198912-199601

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iEP8#,NP80198912-199601

44313ROTOR, VANE PUMP

main44313-22040iEP8#,NP80198912-199601

main44313-22050iEP8#,NP80198912-199601

main44313-22060iEP8#,NP80198912-199601

main44313-22070iEP8#,NP80198912-199601

main44313-22080iEP8#,NP80198912-199601

44324AHOUSING, PUMP, REAR

main44324-12031iEP8#,NP80198912-199601

44326RING, CAM(FOR VANE PUMP)

main44325-12110iEP8#,NP80198912-199601

main44325-12120iEP8#,NP80198912-199601

main44325-12130iEP8#,NP80198912-199601

main44325-12140iEP8#,NP80198912-199601

main44325-12150iEP8#,NP80198912-199601

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iEP8#,NP80198912-199601

main90250-04049iEP8#,NP80198912-199601

44330VALVE ASSY, FLOW CONTROL

main44330-12071iEP85..CBR;EP82,NP80..DSL,EFI198912-199601

main44330-12081iEP85..CBR;EP82,NP80..DSL,EFI198912-199601

main44330-12091iEP85..CBR;EP82,NP80..DSL,EFI198912-199601

main44330-12101iEP85..CBR;EP82,NP80..DSL,EFI198912-199601

main44330-12111iEP85..CBR;EP82,NP80..DSL,EFI198912-199601

main44330-12121iEP8#..(4FC,5F)..(CANSI,GI,SI,SOLL,XLTD)198912-199201

main44330-16071iEP82..TBO;EP85..EFI198912-199601

main44330-16081iEP82..TBO;EP85..EFI198912-199601

main44330-16091iEP82..TBO;EP85..EFI198912-199601

main44330-16101iEP82..TBO;EP85..EFI198912-199601

main44330-16111iEP82..TBO;EP85..EFI198912-199601

main44330-16121iEP82..TBO;EP85..EFI198912-199601

main44330-16131iEP82..CBR198912-199201

main44330-16141iEP82..CBR198912-199201

main44330-16151iEP82..CBR198912-199201

main44330-16161iEP82..CBR198912-199201

main44330-16171iEP82..CBR198912-199201

main44330-16181iEP82..CBR198912-199201

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iEP8#,NP80198912-199601

44337UNION, POWER STEERING SUCTION PORT

main44337-10050iEP8#..EFI199201-199405

main44337-10060iEP8#..EFI199405-199601

main44337-10070iEP82..TBO198912-199601

sub44337-10071

sub90119-08469

main44337-10080iNP80198912-199011

main44337-10081iNP80199011-199103

main44337-10090iEP8#..CBR,EFI198912-199201

main44337-16051iNP80199103-199509

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-12003iEP8#,NP80198912-199601

sub90301-11016

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-12003iEP85199012-199201

sub90301-11016

main90301-19003iEP82..EFI199012-199201

sub90301-19013

44341PLATE, VANE PUMP SIDE, FRONT

main44341-32010iEP8#,NP80198912-199601

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-52001×2iEP8#,NP80198912-199601

44342PLATE, VANE PUMP SIDE, REAR

main44342-32010iEP8#,NP80198912-199601

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-25001iEP8#,NP80198912-199601

sub90301-25008

main90301-52001iEP8#,NP80198912-199507

main90301-53006iEP8#,NP80199507-199601

sub90301-53007

44345BPLATE, VANE PUMP

main44345-12010×10iEP8#,NP80198912-199601

main44345-12020×10iEP8#,NP80198912-199601

main44345-12030×10iEP8#,NP80198912-199601

main44345-12040×10iEP8#,NP80198912-199601

main44345-12050×10iEP8#,NP80198912-199601

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-10040iEP8#,NP80198912-199601

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-10030iEP8#,NP80198912-199601

4503

9011908035

main90119-08035

9017912022

main90179-12022

9020630002

main90206-30002

9165160610

main91651-60610

9165560616

main91655-60616

33 parts on this diagram · 4 diagrams in section
