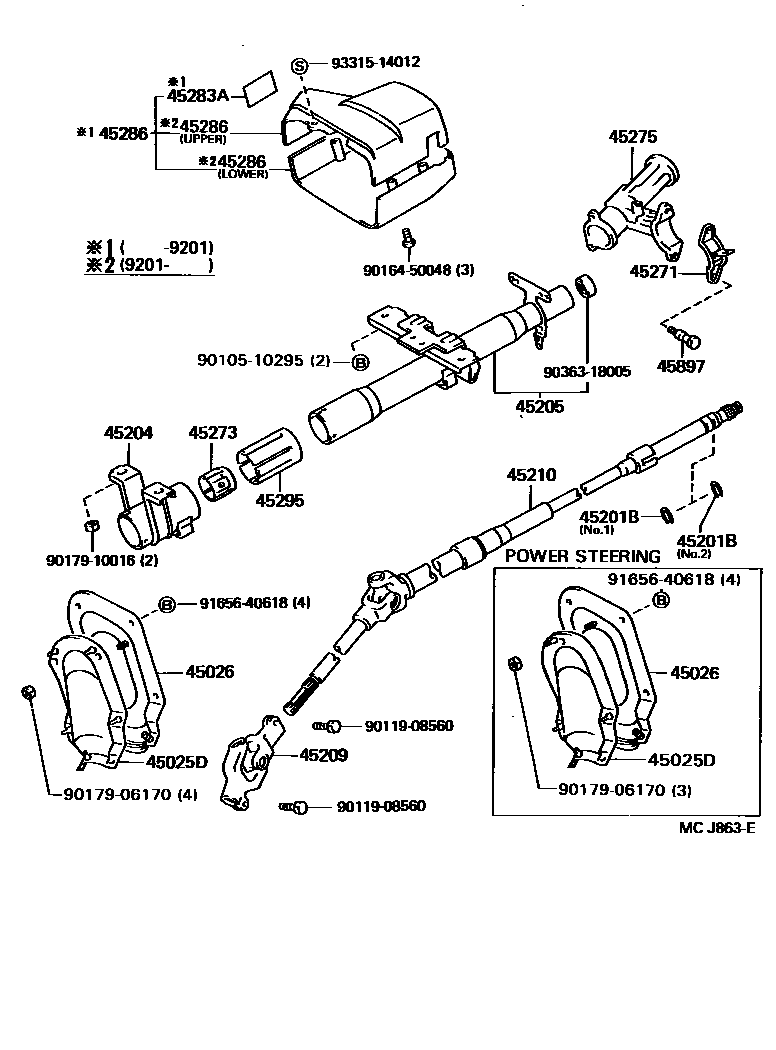

STEERING COLUMN & SHAFT

0001 1 0002 1�������� ��� ������� 0003 1 0004 1�������� ��� �������

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-10080iEP82,NP80..SOL198912-199601

main45025-10090iEP82,NP80..CAN,CANSI,GI,GT,S,SI,SOL,X198912-199601

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-10030iEP82,NP80..SOL198912-199601

main45026-10040iEP82,NP80..CAN,CANSI,GI,GT,S,SI,SOL,X198912-199601

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iEP8#,NP80198912-199306

main90520-17042iEP8#,NP80199306-199601

main90520-17196iEP8#,NP80198912-199306

main90520-17269iEP8#,NP80199306-199601

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-10040iEP85..SOLL;EP82,NP80..CBR,DSL;EP82..(SOL,SOLL)..EFI198912-199409

main45204-10040iEP82..S,X198912-199201

main45204-10050iEP82..S,X198912-199201

main45204-10060iEP82..X198912-199201

main45204-10060iEP82..EFI,TBO198912-199201

X-LIMITED

main45204-10060iEP82..EFI,TBO198912-199201

main45204-10060iEP85..XLTD199008-199409

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-10190iEP85..SOLL;EP82,NP80..CBR,DSL;EP82..(SOL,SOLL)..EFI198912-199409

main45205-10190iEP82..S,X198912-199201

main45205-10200iEP8#..CANSI,GI,GT,SI,XLTD198912-199102

sub45205-10201

main45205-10201iEP82..S,X199102-199201

main45205-10201iEP85..S,XLTD;EP82..(4FC,5F)..(EFI,TBO)199102-199409

main45205-16080iNP80;EP8#..SOL,SOLL199409-199601

main45205-16090iEP8#..GI,GT,S,XLTD199409-199601

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-10030iEP82,NP80..CAN,CANSI,GI,GT,S,SI,SOL,X198912-199201

main45209-10050iEP8#,NP80..CAN,GI,GT,S,SOLL,XLTD199201-199601

main45209-12060iEP82,NP80..SOL199201-199601

main45209-16030iEP82..X198912-199201

X-LIMITED

45210SHAFT ASSY, STEERING MAIN

main45210-10140iEP82..X198912-199201

X-LIMITED

main45210-10150iEP8#..SOLL,XLTD198912-199201

main45210-10170iEP8#,NP80..CAN,GI,GT,S,SOLL,XLTD199201-199601

main45210-16150iEP82,NP80..SOL199201-199601

45271CLAMP, STEERING COLUMN, UPPER

main45271-10080iEP8#,NP80198912-199601

45273BUSH, STEERING MAIN SHAFT

main45273-16010iEP8#,NP80198912-199309

main45273-16020iEP8#,NP80199409-199601

main45273-20030iEP8#,NP80199309-199409

sub45273-16020

45275BRACKET, STEERING COLUMN, UPPER

main45280-10060iEP8#,NP80..ATM198912-199201

main45280-10070iEP8#,NP80..MTM198912-199201

sub45280-10071

main45280-18010iEP8#,NP80..MTM199201-199405

sub45280-18011

main45280-18011iEP8#,NP80..MTM199405-199601

main45280-18020iEP8#,NP80..ATM199201-199405

sub45280-18021

main45280-18021iEP8#,NP80..ATM199405-199601

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-12010iEP8#,NP80198912-199201

45286COVER, STEERING COLUMN

main45286-10171-E0iEP8#..SOLL;NP80..XLTD199201-199405

UPPER,OAK,OAK,TRIM4#

sub45286-10171

main45286-10171-P0iNP80;EP8#..SOL,SOLL199201-199601

UPPER,GRAY,GRAY,TRIM1#

sub45286-10171

main45286-10201-C0iEP82..GI,GT199201-199601

UPPER,BLACK,BLACK,TRIM1#

sub45286-10201

main45286-10201-E0iEP8#..XLTD199201-199405

UPPER,OAK,OAK,TRIM4#

sub45286-10201

main45286-10201-P0iEP8#..CAN,S,XLTD199201-199601

UPPER,GRAY,GRAY,TRIM1#

sub45286-10201

main45286-10903-03iEP8#,NP80..CAN,S,SOL,SOLL,X198912-199201

GRAY,TRIM1#

sub45286-10903

main45286-10903-04iEP82..S,SOLL198912-199201

BLUE,TRIM8#

sub45286-10903

main45286-10903-06iEP8#,NP80..SOLL,X198912-199201

SABLE,TRIM4#

sub45286-10903

main45286-10906-03iEP8#..CANSI,GI,GT,SI,XLTD198912-199201

GRAY,TRIM1#

sub45286-10906

main45286-10906-03iEP8#..CANSI,GI,GT,SI,XLTD198912-199201

sub45286-10906

main45286-10906-04iEP82..S198912-199201

BLUE,TRIM8#

sub45286-10906

main45286-10906-04iEP82..S198912-199201

sub45286-10906

main45286-10906-06iEP82..X198912-199201

sub45286-10906

main45286-10906-06iEP85..XLTD199008-199201

SABLE,TRIM4#

sub45286-10906

main45287-10131-E0iEP8#..SOLL;NP80..XLTD199201-199405

LOWER,OAK,OAK,TRIM4#

sub45287-10131

main45287-10131-P0iNP80;EP8#..SOL,SOLL199201-199601

LOWER,GRAY,GRAY,TRIM1#

sub45287-10131

main45287-10161-C0iEP82..GI,GT199201-199601

LOWER,BLACK,BLACK,TRIM1#

sub45287-10161

main45287-10161-E0iEP8#..XLTD199201-199405

LOWER,OAK,OAK,TRIM4#

sub45287-10161

main45287-10161-P0iEP8#..CAN,S,XLTD199201-199601

LOWER,GRAY,GRAY,TRIM1#

sub45287-10161

45295BUSH, STEERING COLUMN TUBE

main45295-10010iEP8#,NP80198912-199409

45897BOLT, STEERING LOCK SET

main45897-12020iEP8#,NP80199311-199601

main45897-32010iEP8#,NP80198912-199310

9010510295

main90105-10295

9011908560

main90119-08560

9016450048

main90164-50048

9017906170

main90179-06170

9017910016

main90179-10016

9036318005

main90363-18005

9165640618

main91656-40618

9331514012

main93315-14012

22 parts on this diagram · 4 diagrams in section
