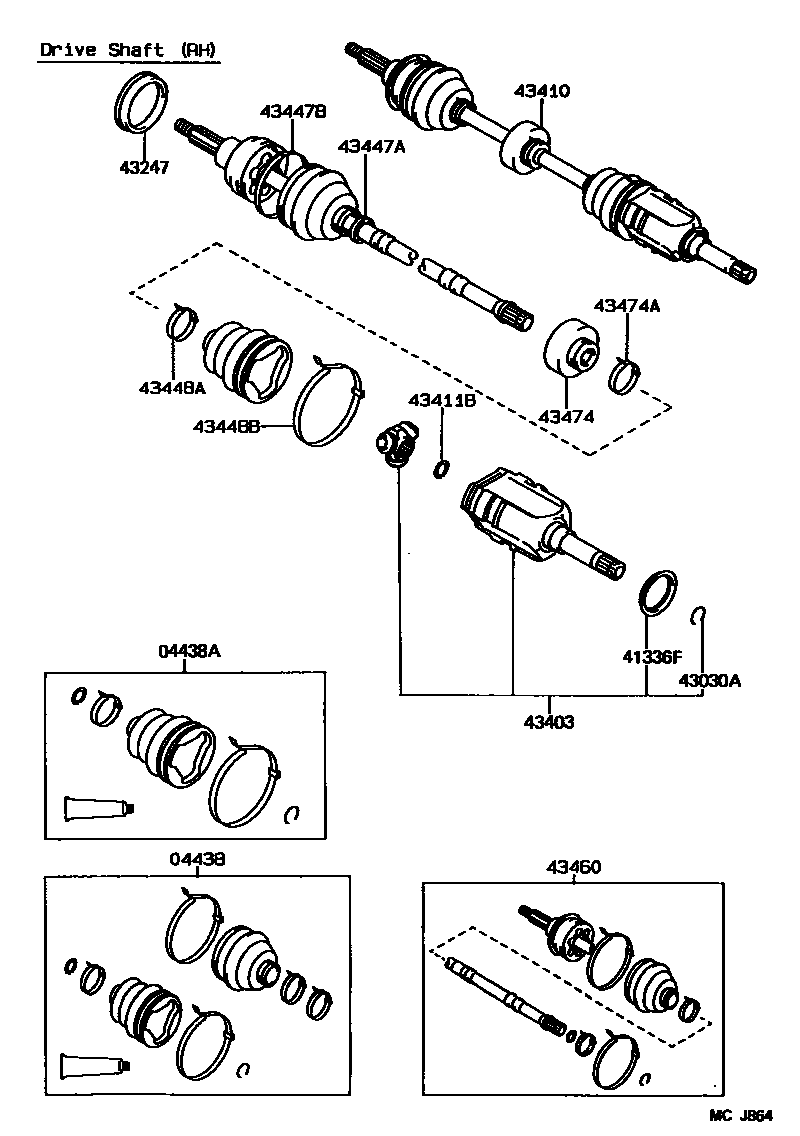

FRONT DRIVE SHAFT

0001 1 0002 1 0003 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-10022×2iNP80..5F199201-199301

sub04438-16040

main04438-10060×2iNP80..5F199201-199509

sub04438-16040

main04438-10080×2iEP82..TBO199201-199601

main04438-12080×2iEP82..TBO198912-199002

main04438-12170×2iEP8#..(4FC,5F)..(GT,SOLL,XLTD)199002-199009

main04438-12171×2iEP85199201-199601

sub04438-12370

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-10050×2iNP80..5F199201-199509

main04438-10070×2iEP82..TBO199201-199601

sub04438-30050

main04438-12070×2iEP82..TBO198912-199002

main04438-12160×2iEP8#..(4FC,5F)..(GT,SOLL,XLTD)199002-199009

main04438-12161×2iEP8#..(4FC,5F)..(GT,SOLL,XLTD)199009-199201

sub04438-12410

main04438-16030×2iEP82,NP80..CBR,DSL,EFI198912-199509

main04438-16140×2iEP82..EFI199509-199601

sub04438-16070

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-10020×2iEP82..5F..TBO199212-199601

main41336-12010×2iEP85;NP80..5F;EP82..TBO199201-199301

main41336-16020iEP85199201-199601

RH

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90521-26004×2iEP85199201-199301

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-10020×2iEP8#,NP80198912-199208

main43247-16040×2iEP8#,NP80199208-199601

43403JOINT SET, FRONT AXLE INBOARD, RH

main43030-10010iEP82..TBO199201-199601

main43030-10020iEP82..5F..TBO199212-199601

main43030-16010iEP85199008-199601

main43403-10010iEP82,NP80..CBR,DSL,EFI198912-199601

sub43403-10011

main43403-12040iEP82..TBO198912-199201

main43403-19046iEP82..CBR,EFI199009-199201

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-10090iNP80..4FC;EP82..CBR,EFI198912-199101

sub43525-20030

sub90179-22020

main43410-10091iNP80..4FC;EP82..CBR,EFI199101-199601

sub43410-10270

main43410-10100iEP82..CBR,EFI199009-199101

sub43525-20030

sub90179-22020

main43410-10101iEP82..EFI;NP80..4FC199201-199601

sub43410-10280

main43410-10130iNP80..5F198912-199101

sub43525-20030

sub90179-22020

main43410-10131iNP80..5F199101-199509

sub43410-10290

main43410-10150iEP82..TBO198912-199101

sub43525-20030

sub90179-22020

main43410-10151iEP82..TBO199101-199112

main43410-10160iEP82..TBO198912-199101

sub43525-20030

sub90179-22020

main43410-10161iEP82..TBO199101-199112

main43410-10170iEP85199008-199101

sub43525-20030

sub90179-22020

main43410-10171iEP85199101-199601

sub43410-10370

main43410-10180iEP85199008-199101

sub43525-20030

sub90179-22020

main43410-10181iEP85199101-199601

sub43410-10330

main43410-10190iNP80..5F199201-199509

sub43410-10300

main43410-10200iEP82..TBO199201-199601

sub04422-10040

main43410-10210iEP82..TBO199201-199601

main43410-10220iEP82..TBO199112-199201

sub43410-10350

main43410-10230iEP82..TBO199112-199201

sub43410-10360

main43410-10250iEP82..5F..TBO199212-199601

sub04422-10040

main43410-10260iEP82..5F..TBO199212-199601

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-20065×2iEP82..TBO199201-199601

main90520-22001×2iEP82..EFI199201-199301

sub90520-22029

main90520-22005×2iEP85199201-199601

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-16010×2iEP8#,NP80..DSL,EFI199201-199601

main90949-01078×2iEP8#,NP80198912-199201

main90949-01804×2iEP82..TBO199201-199601

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-16020×2iEP8#,NP80..DSL,EFI199201-199601

main90949-01080×2iEP8#,NP80198912-199201

main90949-01802×2iEP82..TBO199201-199601

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-16010×2iEP8#,NP80..DSL,EFI199201-199601

main90949-01078×2iEP8#,NP80198912-199201

main90949-01804×2iEP82..TBO199201-199601

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-16040×2iEP85199201-199601

main42345-16080×2iEP82,NP80..DSL,EFI199201-199601

main90949-01076×2iEP8#..(4FC,5F)..(GT,SOLL,XLTD)198912-199201

sub42345-12160

main90949-01146×2iEP82,NP80..CBR,DSL,EFI198912-199201

main90949-01803×2iEP82..TBO199201-199601

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19435iNP80..4FC;EP82..CBR,EFI198912-199101

sub43525-20030

sub90179-22020

main43460-19436iNP80..4FC;EP82..CBR,EFI199101-199601

sub43460-80100

main43460-19445iEP82..CANSI,GI,S,SI,X198912-199007

main43460-19446iEP82..CBR,EFI199101-199201

sub43460-80101

main43460-19475iNP80..5F198912-199101

sub43525-20030

sub90179-22020

main43460-19476iNP80..5F199101-199509

sub43460-80102

main43460-19495iEP82..TBO198912-199101

sub43525-20030

sub90179-22020

main43460-19496iEP82..TBO199101-199201

sub43460-80098

main43460-19505iEP82..TBO198912-199007

main43460-19506iEP82..TBO199101-199201

sub43460-80099

main43460-19585iEP82..CBR,EFI199009-199101

sub43525-20030

sub90179-22020

main43460-19605iEP82..TBO199007-199101

sub43525-20030

sub90179-22020

main43460-19665iNP80..5F199201-199509

sub43460-80103

main43460-19675iEP82..TBO199201-199601

main43460-19685iEP82..TBO199201-199601

main43460-19695iEP82..5F..TBO199212-199601

main43460-19705iEP82..5F..TBO199212-199601

main43470-19475iEP85199008-199101

sub43525-20030

sub90179-22020

main43470-19476iEP85199101-199601

sub43470-80158

main43470-19486iEP85199101-199601

sub43470-80159

main43470-19615iEP85199008-199101

sub43525-20030

sub90179-22020

43474DAMPER, DRIVE SHAFT

main43474-10010iEP82,NP80..CBR,DSL,EFI198912-199601

main43474-12020iEP82..TBO198912-199112

main43474-20050iEP82..TBO199112-199201

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iEP82..TBO198912-199201

main42345-16010iEP82,NP80..DSL,EFI199201-199601

main42345-16030iEP82..TBO199201-199601

main90949-01078iEP82,NP80..CBR,DSL,EFI198912-199201

15 parts on this diagram · 3 diagrams in section
