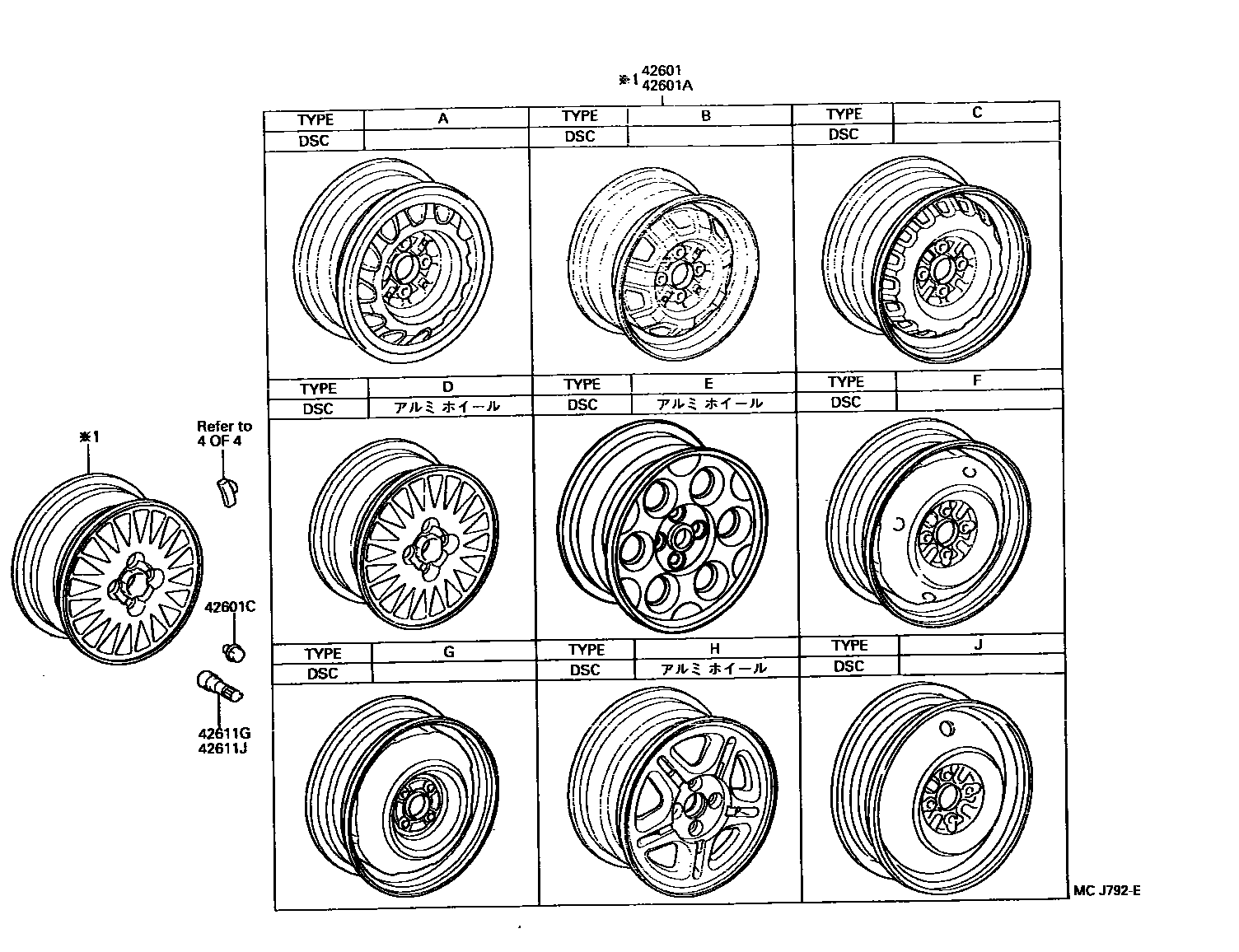

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-10200-03×4iEP82..TBO198912-199002

main42611-10210-03×4iEP82,NP80..SOL199201-199601

main42611-10220-03×4iEP82..5D..4F..SOL199201-199601

main42611-10290-05×4iEP82..SOLL199110-199112

main42611-10310×4iEP82..EFI,TBO198912-199201

main42611-10330-01×4iEP82..GI,GT198912-199201

main42611-10330-03×4iEP82..CAN,GI199201-199601

main42611-12850×4iEP85..XLTD199008-199201

main42611-16170-03×4iEP82..5D..SOLL199201-199601

sub42611-16171

main42611-1A120×4iEP82..TBO199201-199601

main42611-1A140-01×4iEP82..TBO199201-199601

sub42611-1A141

main42611-20300-03×4iEP8#..SOLL199312-199404

42601AWHEEL, DISC (FOR SPARE)

main42611-10210-03iEP82,NP80..SOL199201-199601

main42611-10220-03iEP82..5D..4F..SOL199201-199601

main42611-10310iEP82..CAN,GI199201-199601

main42611-10320iEP82..5F..TBO199201-199601

sub42611-10321

main42611-10330-01iEP82..CAN,GI199201-199601

main42611-10330-03iEP82..CAN,GI199201-199601

main42611-12850iEP85..S,XLTD;EP82,NP80..XLTD199405-199601

main42611-16170-03iEP82..5D..SOLL199201-199601

sub42611-16171

main42611-16310iEP82,NP80..CBR,DSL,TBO;EP82..(CAN,CANSI,GI,S,SI,SOL,XLTD)..EFI198912-199601

main42611-17040iEP82..SOLL199201-199212

main42611-1A120iEP82..TBO199201-199601

main42611-1A140-01iEP82..TBO199201-199601

sub42611-1A141

main42611-1A330iEP82..SOLL199212-199601

main42611-20300-03iEP85..S,XLTD;EP82,NP80..XLTD199204-199601

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iEP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD198912-199601

main90942-01021×16iEP82,NP80..SOL199405-199601

main90942-01033×16iEP82..CAN199204-199405

main90942-01059×16iEP82,NP80..SOL198912-199405

main90942-01062×16iEP82..CAN,GI199201-199601

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×4iEP82..TBO199201-199601

main90942-05009×4iEP82..GI,GT198912-199201

X-LIMITED

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05004iEP85..S,XLTD199201-199405

main90942-05009iEP85..XLTD199008-199201

5 parts on this diagram · 4 diagrams in section
