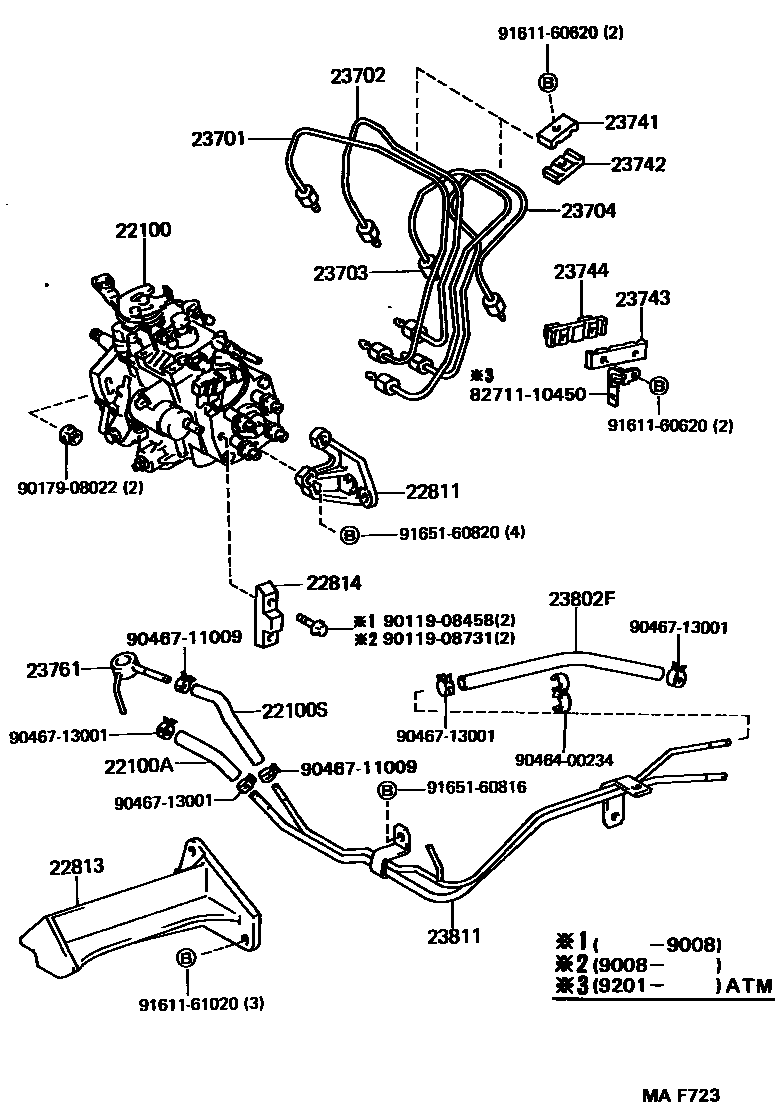

INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
22811STAY, INJECTION PUMP, NO.1
22813PROTECTOR, INJECTION PUMP, NO.1
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
23742CLAMP, INJECTION PIPE, NO.2
23743CLAMP, INJECTION PIPE, NO.3
sub23741-64021
23744CLAMP, INJECTION PIPE, NO.4
sub23742-55011
23761PIPE, NOZZLE LEAKAGE, NO.1
23802FHOSE, FUEL
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
8271110450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10450
9011908458
main90119-08458
9011908731
main90119-08731
9017908022
main90179-08022
9046400234
main90464-00234
9046711009
main90467-11009
9046713001
main90467-13001
9161160620
main91611-60620
9161161020
main91611-61020
9165160816
main91651-60816
9165160820
main91651-60820
28 parts on this diagram · 1 diagram in section
