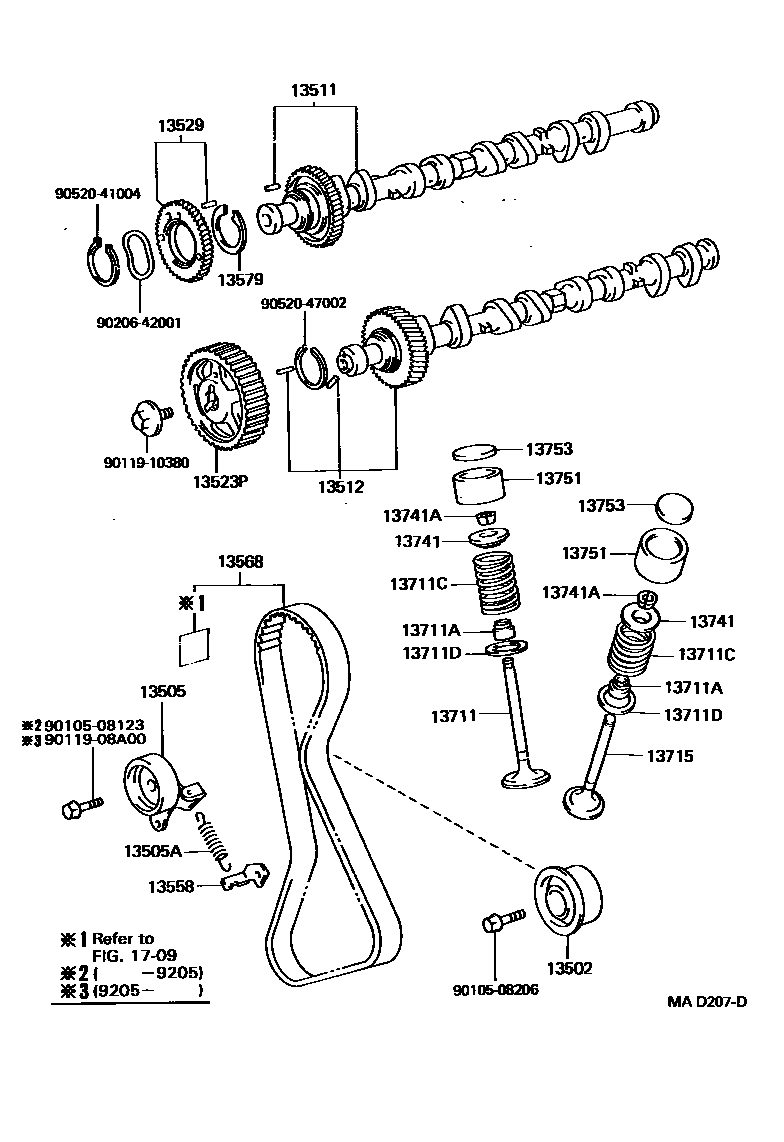

CAMSHAFT & VALVE
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13505ASPRING, TENSION(FOR IDLER)
13523PPULLEY, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13558BRACKET, SPRING(FOR IDLER)
13568BELT, TIMING
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE SIDE
EXHAUST SIDE
13711CSPRING, COMPRESSION(FOR OUTER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
sub13753-16351
sub13753-16371
sub13753-16401
sub13753-16421
sub13753-16451
sub13753-16471
sub13753-16501
sub13753-16521
sub13753-16551
sub13753-16571
sub13753-16601
sub13753-16621
sub13753-16651
1709
9010508123
main90105-08123
9010508206
main90105-08206
9011908A00
main90119-08A00
9011910380
main90119-10380
9020642001
main90206-42001
9052041004
main90520-41004
9052047002
main90520-47002
27 parts on this diagram · 2 diagrams in section
