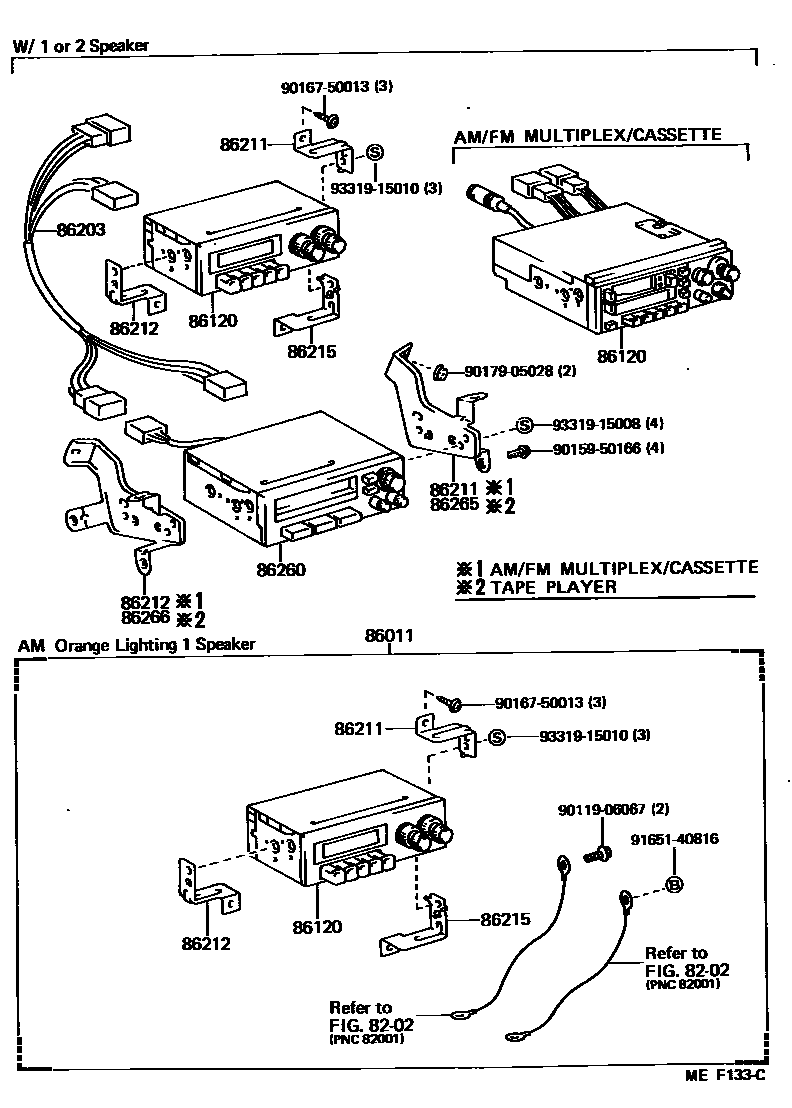

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1W/CD-PLAYER

8202

86011RADIO & SETTING PARTS SET

main86120-19075iEP71..RI,TBS,TOR198603-198612

86120RECEIVER ASSY, RADIO

main86120-10230iEP71..RI,SE,SI,TBS,TOR,XL198410-198612

main86120-10260iEP71..EFI,TBO198612-198912

main86120-10270iEP71..EFI,TBO198612-198912

main86120-10360iEP71..EFI,TBO198410-198612

AM/FM 2SPEAKER

sub86120-10270

sub86203-20180

main86120-12380iEP71..EFI,TBO198410-198612

sub86120-10260

sub86203-20180

main86120-14421iEP7#..CBR198410-198612

AM 1SPEAKER

sub86120-10260

sub86203-20180

main86120-16270iEP71..EFI,TBO198410-198912

main86120-16350iEP7#,NP7#..CBR,DSL198612-198912

sub86120-10290

main86120-16540iEP71..SI,TBS,TOR198612-198912

main86120-19016iEP71..SE,XL198410-198612

main86120-19025iEP71..DX,RI,SE,SI,TBS,TOR,XL198410-198612

AM/FM COMPO GREEN 4SPEAKER

main86120-32190iEP71,NP70..SE,XL198612-198912

86203WIRE, RADIO

main86203-10070iEP7#198410-198612

W/2-SPEAKER

main86203-10080iEP71..DX,RI,SE,SI,TBS,TOR,XL198410-198612

W/4-SPEAKER

main86203-10100iEP7#,NP70198612-198912

86211BRACKET, RADIO, NO.1

main86211-10090iEP7#,NP7#198410-198912

main86211-10100iEP71..RI,TBS,TOR,XL198410-198612

W/CASSETTE

86212BRACKET, RADIO, NO.2

main86212-10080iEP7#,NP7#198410-198912

main86212-10090iEP71..RI,TBS,TOR,XL198410-198912

W/CASSETTE

86215BRACKET, RADIO, NO.5

main86215-10110iEP7#,NP7#198410-198912

86260TAPE PLAYER ASSY

main86260-19015iEP7#198410-198612

W/2-SPEAKER

sub86260-90B09

sub86203-16100

sub86203-20180

main86260-19025iEP71..DX,RI,SE,SI,TBS,TOR,XL198410-198612

W/4-SPEAKER

main86260-19105iEP7#,NP7#198612-198912

AUTO REVERSE

main86260-19115iEP71,NP70..DX,RI,SE,SI,TBS,TOR,XL198612-198912

AUTO REVERSE W/FM

main86260-19125iEP71,NP70..DX,RI,SE,SI,TBS,TOR,XL198612-198912

HIGH POWER

main86260-19135iEP71,NP70..RI,SE,SI,TBS,TOR,XL198612-198912

HIGH POWER W/EQUALIZER

86265BRACKET, TAPE PLAYER, NO.1

main86211-10100iEP7#..CD,CS,DX,RI,STD,XL198410-198912

86266BRACKET, TAPE PLAYER, NO.2

main86212-10090iEP7#..CD,CS,DX,RI,STD,XL198410-198912

9011906067

main90119-06067

9015950166

main90159-50166

9016750013

main90167-50013

9017905028

main90179-05028

9165140816

main91651-40816

9331915008

main93319-15008

9331915010

main93319-15010

17 parts on this diagram · 3 diagrams in section
