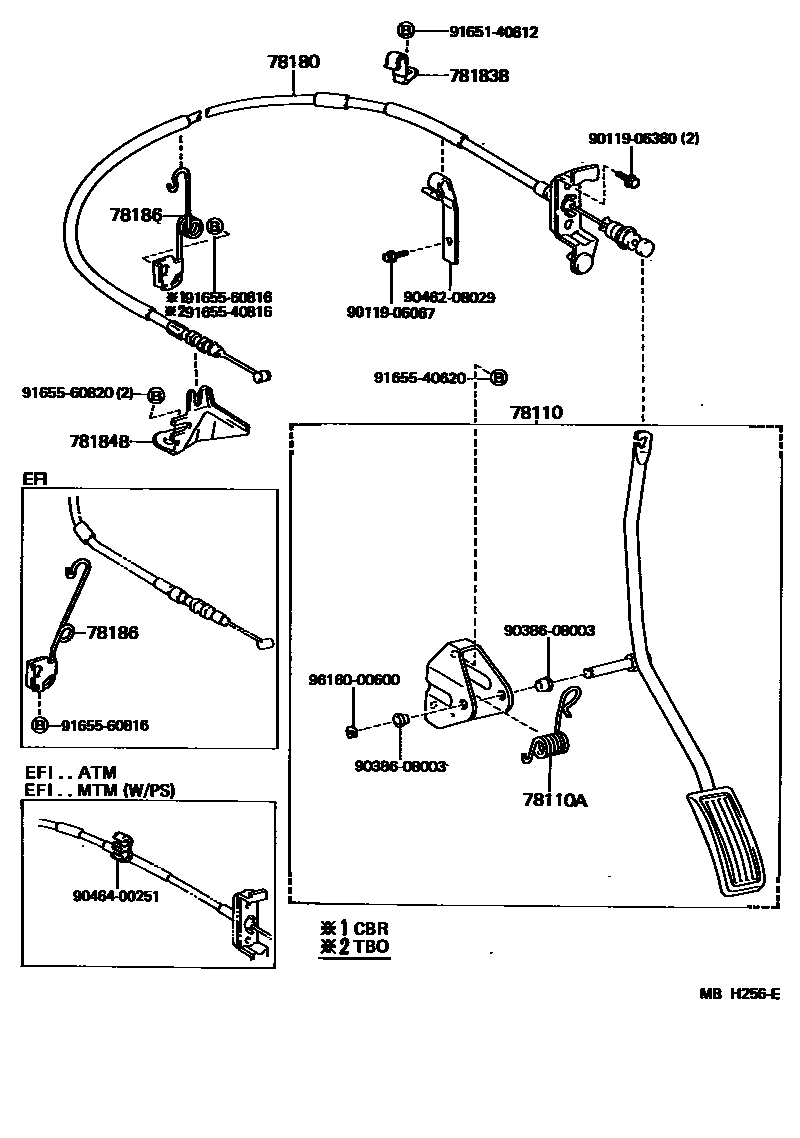

ACCELERATOR LINK

0001 1 0002 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-10010iEP7#198410-198612

main78120-10030iEP7#,NP7#..MTM198612-198912

main78120-10040iEP71,NP70..ATM198612-198912

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18057iEP7#198410-198612

main90508-21004iEP7#,NP7#198612-198912

78180WIRE ASSY, ACCELERATOR

main78180-10220iEP71..EFI198410-198612

main78180-10230iEP7#..CBR198410-198912

main78180-10280iEP71..TBO198601-198612

main78180-10350iNP7#198612-198912

main78180-10380iEP71..TBO198612-198912

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-10030iEP71..4FC..EFI198612-198912

POWER STEERING

main78183-10040iNP7#198612-198912

main78183-10050iEP71..TBO198612-198912

78184BBRACKET, ACCELERATOR CONTROL CABLE

main26662-55010iNP70198612-198912

main78184-10070iEP7#..CBR198410-198912

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-10040iEP7#..CBR198410-198912

sub78186-16150

main78186-10050iEP71..EFI198410-198612

main78186-10090iEP71..TBO198601-198612

main78186-10100iNP7#198612-198912

main78186-10110iEP71..TBO198612-198912

9011906067

main90119-06067

9011906360

main90119-06360

9038608003

main90386-08003

9046208029

main90462-08029

9046400251

main90464-00251

9165140612

main91651-40612

9165540620

main91655-40620

9165540816

main91655-40816

9165560816

main91655-60816

9165560820

main91655-60820

9616000600

main96160-00600

17 parts on this diagram · 2 diagrams in section
