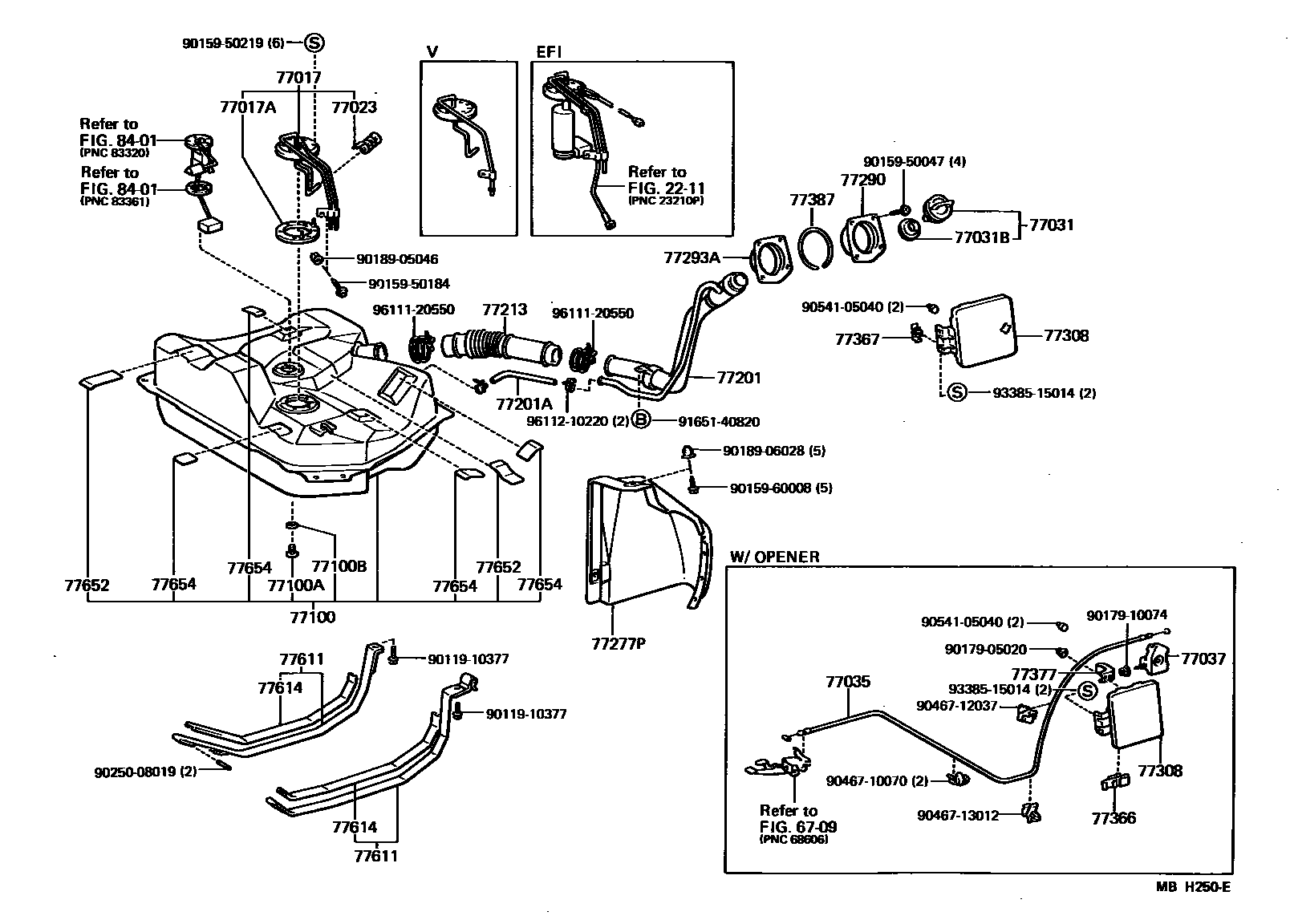

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

2211

6709

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-10010iEP71..CBR198410-198912

main77017-10020iEP76198410-198912

main77017-10030iNP7#198612-198912

77017AGASKET, FUEL TANK VENT

main77169-32010iEP7#,NP7#..CBR,DSL198410-198912

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iEP7#..CBR198410-198912

main77023-32010iNP7#198612-198912

77031CAP ASSY, FUEL TANK

main77310-12100iEP7#198410-198912

main77310-35061iNP7#198612-198912

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iEP7#,NP7#198410-198912

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-10020iEP71,NP70..SE,SI,TBS,XL198601-198912

sub77035-12230

main77035-10020iEP71..DX198812-198912

W/FUEL LID OPENER

sub77035-12230

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12040iEP71,NP70..SE,SI,TBS,XL198601-198912

sub77037-38010

main77037-12040iEP71..DX198812-198912

W/FUEL LID OPENER

sub77037-38010

77100TANK ASSY, FUEL

main77001-10912iEP7#..CBR198410-198706

sub77001-10914

main77001-10913iEP71..EFI,TBO198410-198706

sub77001-10915

main77001-10914iEP7#..CBR198410-198612

COLD SPEC

sub77001-10918

main77001-10915iEP71..EFI,TBO198612-198912

main77001-10915iEP71..EFI,TBO198410-198706

COLD SPEC

main77001-10918iEP7#..CBR198612-198706

COLD SPEC

main77001-10918iEP7#..CBR198706-198912

77100APLUG(FOR FUEL TANK)

main90341-20003iEP7#198410-198412

COLD SPEC

sub90341-20004

main90341-20004iEP7#198412-198912

COLD SPEC

main90341-20004iNP7#198612-198912

77100BGASKET(FOR FUEL TANK)

main90430-20006iEP7#198410-198412

COLD SPEC

main90430-20007iEP7#198412-198912

COLD SPEC

main90430-20007iNP7#198612-198912

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-10100iEP7#,NP7#198410-198912

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22913iEP7#,NP7#198410-198912

sub90445-22024

77213HOSE, FUEL TANK SUB INLET

main77213-10060iEP7#,NP7#198410-198912

77277TUBE, FUEL RETURN, NO.1

main77207-10060iEP71..CBR198410-198912

main77207-10070iEP71..EFI,TBO198410-198912

main77207-10100iNP7#198612-198912

77277PPROTECTOR(FOR FUEL RETURN HOSE)

main77277-10020iEP7#,NP7#198410-198912

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-16010iEP7#,NP7#198410-198912

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-16010iEP7#,NP7#198410-198912

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-10030iEP7#198410-198506

main77350-10031iEP7#,NP7#..CD,CS,DX,RI,STD,TOR198506-198912

main77350-10040iEP71,NP70..SE,SI,TBS,XL198601-198912

main77350-10040iEP71..DX198812-198912

W/FUEL LID OPENER

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-10010iEP71..SE,SI,TBS,XL198601-198912

main77360-10010iEP71..DX198812-198912

SOLEIL-L EXTRA

77367STOPPER, FUEL FILLER OPENING LID

main77358-10010iEP7#198410-198912

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iEP71,NP70..SE,SI,TBS,XL198601-198912

main77377-20030iEP71..DX198812-198912

W/FUEL LID OPENER

77387RING, FUEL INLET BOX

main77391-14020iEP7#,NP7#198410-198912

77611BAND, FUEL TANK

main77601-10060iEP7#,NP7#..CBR,DSL198410-198912

RH

sub77601-10070

main77601-10070iEP71..EFI,TBO198410-198912

RH

main77602-10060iEP7#,NP7#198410-198912

LH

77614SEAT, FUEL TANK BAND

main77681-10010iEP7#198410-198603

RH

sub77682-10010

main77681-10010iEP7#,NP7#198603-198912

sub77682-10010

main77682-10010iEP7#198410-198603

LH

77652CUSHION, FUEL TANK, NO.1

main77651-10050iEP7#,NP7#198410-198912

77654CUSHION, FUEL TANK, NO.2

main77652-10060iEP7#,NP7#198410-198912

8401

9011910377

main90119-10377

9015950047

main90159-50047

9015950184

main90159-50184

9015950219

main90159-50219

9015960008

main90159-60008

9017905020

main90179-05020

9017910074

main90179-10074

9018905046

main90189-05046

9018906028

main90189-06028

9025008019

main90250-08019

9046710070

main90467-10070

9046712037

main90467-12037

9046713012

main90467-13012

9054105040

main90541-05040

9165140820

main91651-40820

9338515014

main93385-15014

9611120550

main96111-20550

9611210220

main96112-10220

47 parts on this diagram · 5 diagrams in section
