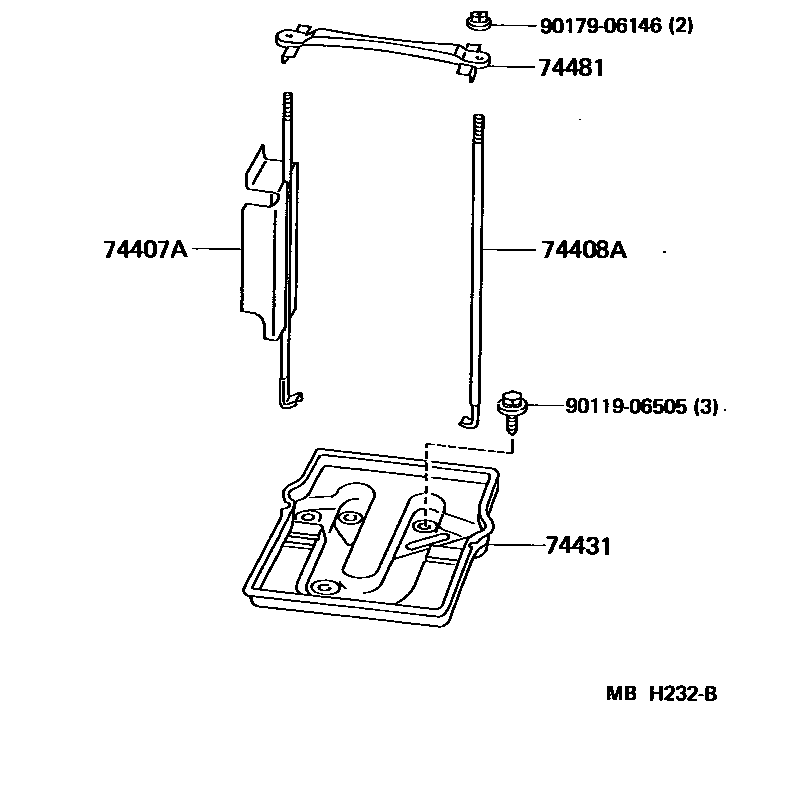

BATTERY CARRIER

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-10040iEP7#198410-198912

main74407-10070iNP7#..5F198612-198912

main74407-10080iNP70..4FC198612-198912

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-10010iNP70..5F198410-198912

main74451-10040iNP70..4FC198612-198806

sub74451-14010

main74451-10041iNP70..4FC198806-198912

sub74451-10060

74431TRAY, BATTERY

main74431-10010iEP7#198410-198912

main74431-10020iNP7#..5F198612-198912

main74431-14030iNP70..4FC198612-198912

55D23R

sub74431-52040

main74431-14040iNP70..4FC198612-198912

95D31R(NS120-7)

74481CLAMP, BATTERY HOLD DOWN

main74404-10100iNP7#..5F198612-198912

main74404-10110iEP7#198503-198912

main74404-16080iNP70..4FC198612-198912

main74481-10110iEP7#198410-198503

sub74404-10110

9011906505

main90119-06505

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
