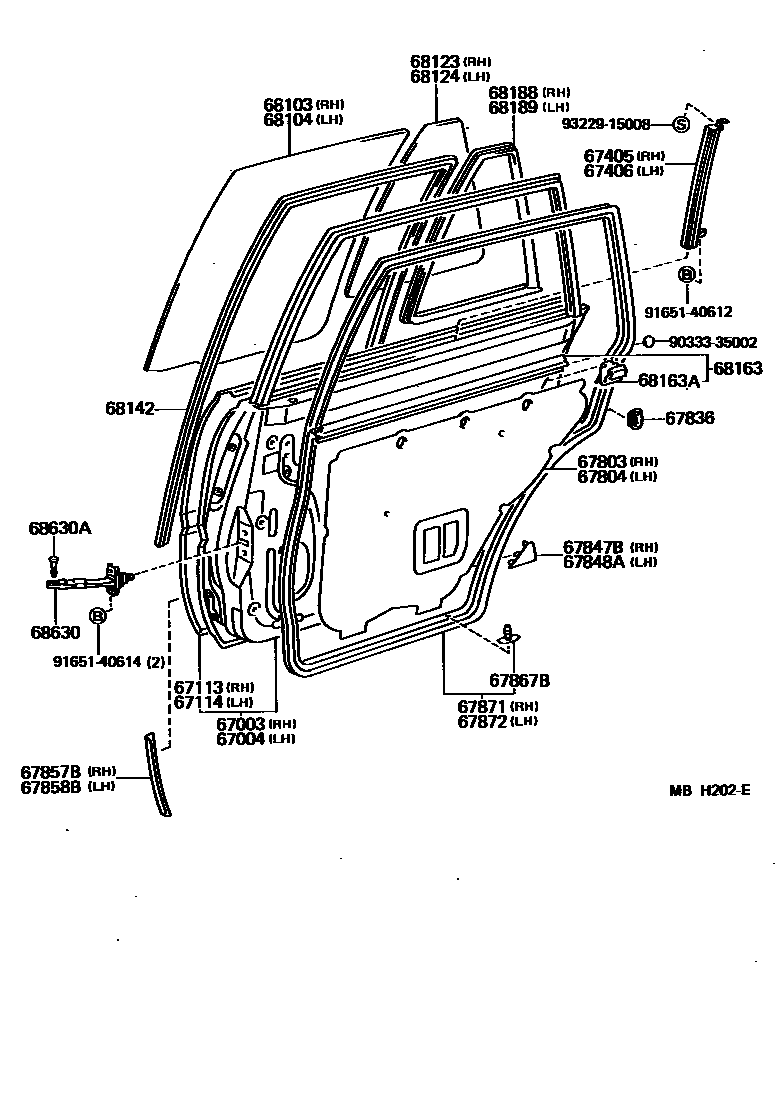

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-10080iEP71..5D198410-198505

sub67003-10090

main67003-10090iEP71,NP70..5D198505-198912

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-10090iEP71..5D198410-198505

sub67004-10100

main67004-10100iEP71,NP70..5D198505-198912

67113PANEL, REAR DOOR, OUTER RH

main67113-10080iEP71,NP70..5D198410-198912

67114PANEL, REAR DOOR, OUTER LH

main67114-10070iEP71,NP70..5D198410-198912

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-10040iEP71,NP70..5D198410-198912

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-10040iEP71,NP70..5D198410-198912

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-10030iEP71,NP70..5D198410-198912

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67842-10010iEP71,NP70..5D198410-198912

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12030iEP71,NP70..5D198410-198912

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-10020iEP71,NP70..5D198410-198912

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-10010iEP71,NP70..5D198410-198912

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-10010iEP71,NP70..5D198809-198912

main67857-12010iEP71,NP70..5D198801-198809

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-10010iEP71,NP70..5D198809-198912

main67858-12010iEP71,NP70..5D198801-198809

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30040iEP71,NP70..5D198410-198912

67871WEATHERSTRIP, REAR DOOR, RH

main67871-10050iEP71,NP70..5D198410-198912

67872WEATHERSTRIP, REAR DOOR, LH

main67872-10050iEP71,NP70..5D198410-198912

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-10070iEP71..5D..(DX,XL)198410-198912

sub68113-10080

main68113-10080iEP71..5D..(SE,SI)198410-198601

main68113-10100iEP71..5D..DX198812-198912

SOLEIL-L,*TEM,BRONZE,T=3.5

main68113-10100iEP71..5D..TBO198804-198912

W/*HSL,*TEM,BRONZE,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-10070iEP71..5D..(DX,XL)198410-198912

sub68114-10080

main68114-10080iEP71..5D..(SE,SI)198410-198601

main68114-10100iEP71..5D..TBO198804-198912

W/*HSL,*TEM,BRONZE,T=3.5

main68114-10100iEP71..5D..DX198812-198912

SOLEIL-L,*TEM,BRONZE,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-10090iEP71,NP70..5D198410-198912

sub68123-10100

main68123-10100iEP71..5D..(SE,SI)198410-198601

main68123-10120iEP71..5D..TBO198804-198912

W/*HSL,*TEM,BRONZE,T=3.5

main68123-10120iEP71..5D..DX198812-198912

SOLEIL-L,*TEM,BRONZE,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-10090iEP71..5D..(DX,XL)198410-198912

sub68124-10100

main68124-10100iEP71..5D..(SE,SI)198410-198601

main68124-10120iEP71..5D..TBO198804-198912

W/*HSL,*TEM,BRONZE,T=3.5

main68124-10120iEP71..5D..DX198812-198912

SOLEIL-L,*TEM,BRONZE,T=3.5

68142RUN, REAR DOOR GLASS

main68142-10040iEP71,NP70..5D198410-198912

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-10070iEP71,NP70..5D198410-198912

RH

main68230-10030iEP71,NP70..5D198410-198912

LH

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-10070iEP71,NP70..5D198410-198912

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-10030iEP71,NP70..5D198410-198912

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-10030iEP71,NP70..5D198410-198912

68630CHECK ASSY, REAR DOOR

main68630-10020iEP71,NP70..5D198410-198912

68630APIN(FOR REAR DOOR CHECK)

main68617-12010iEP71..5D198410-198507

sub68617-90A00

main68617-90A00iEP71,NP70..5D198507-198912

9033335002

main90333-35002

9165140612

main91651-40612

9165140614

main91651-40614

9322915008

main93229-15008

31 parts on this diagram · 2 diagrams in section
