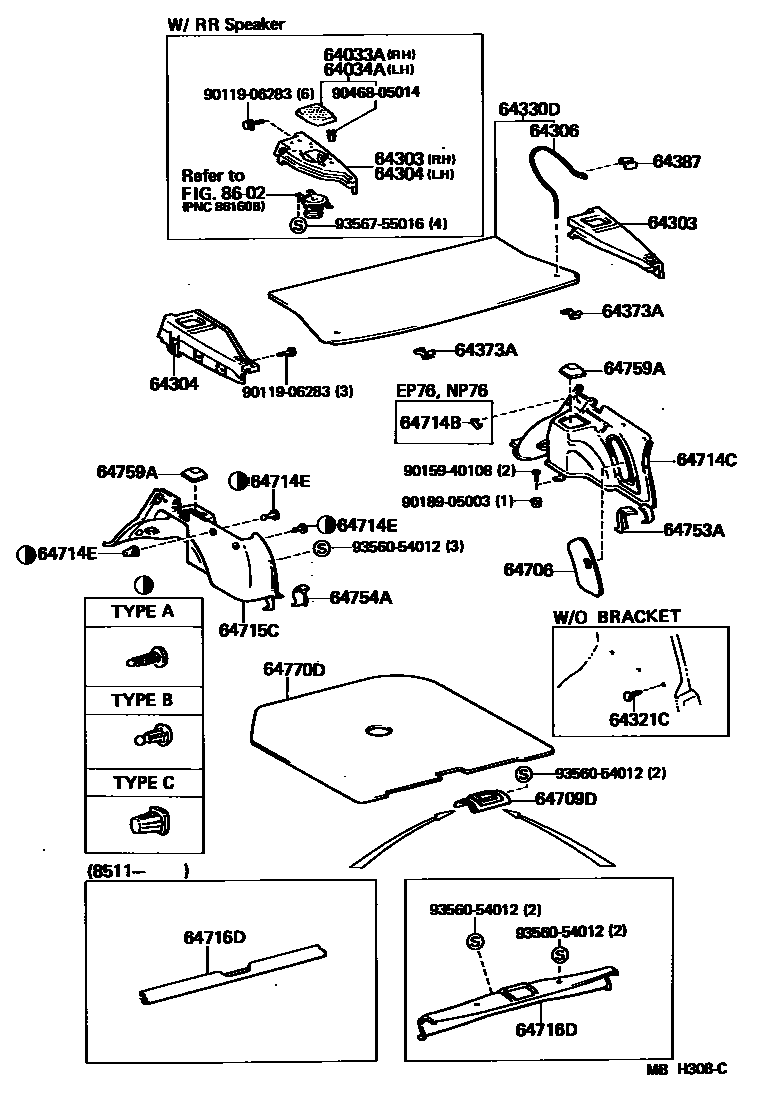

DECK BOARD & DECK TRIM COVER

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-10010-02iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main64033-10010-03iEP71,NP70..DX,RI,SE,SI,TBS,TOR,XL198410-198912

GRAY,GRAY,TRIM1#

main64033-10010-04iEP71..DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-10010-02iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main64033-10010-03iEP71,NP70..DX,RI,SE,SI,TBS,TOR,XL198410-198912

GRAY,GRAY,TRIM1#

main64033-10010-04iEP71..DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

64303BRACKET SUB-ASSY, PACKAGE TRAY, RH

main64301-10050-02iEP71..DX198601-198612

SOLEIL-L,W/RR SPEAKER,MAROON,MAROON,TRIM3#

main64301-10050-03iEP71,NP70..DX,RI,SE,SI,TBS,TOR,XL198410-198912

W/RR SPEAKER,GRAY,GRAY,TRIM1#

main64301-10050-04iEP71..DX,SE,XL198410-198612

W/RR SPEAKER,BLUE,BLUE,TRIM8#

main64310-10050-02iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main64310-10050-03iEP71,NP70..DX,SE,SI,TBS,XL198612-198912

GRAY,GRAY,TRIM1#

main64310-10050-04iEP71..DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main64310-10050-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

64304BRACKET SUB-ASSY, PACKAGE TRAY, LH

main64302-10050-02iEP71..DX198601-198612

SOLEIL-L,W/RR SPEAKER,MAROON,MAROON,TRIM3#

main64302-10050-03iEP71,NP70..DX,RI,SE,SI,TBS,TOR,XL198410-198912

W/RR SPEAKER,GRAY,GRAY,TRIM1#

main64302-10050-04iEP71..DX,SE,XL198410-198612

W/RR SPEAKER,BLUE,BLUE,TRIM8#

main64320-10050-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main64320-10050-03iEP71..DX,RI,SE,SI,TBS,TOR,XL198410-198612

GRAY,GRAY,TRIM1#

main64320-10050-04iEP71..DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main64320-10050-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-10030×2iEP71,NP70..DX,RI,SE,SI,TBS,XL198410-198710

main64306-12030×2iEP71,NP70..DX,RI,SE,SI,TBS,XL198710-198912

64321CCLIP(FOR PACKAGE TRIM SIDE)

main90467-06049-03×6iEP71..DX,RI,TOR,XL198410-198612

GRAY,GRAY,TRIM1#

main90467-06049-06iEP71,NP70..DX198612-198912

BROWN,BROWN,TRIM4#

main90467-06049-12×6iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main90467-06049-14×6iEP71..DX,XL198410-198612

BLUE,BLUE,TRIM8#

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-10110-02iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main64330-10110-03iEP71..DX,RI,SE,SI,TBS,TOR,XL198410-198612

GRAY,GRAY,TRIM1#

main64330-10110-04iEP71..DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main64330-10120-03iEP71..EFI,TBO198410-198612

W/BODY SONIC,GRAY,GRAY,TRIM1#

main64330-10130-03iEP71,NP70..DX,SE,SI,TBS,XL198612-198912

GRAY,GRAY,TRIM1#

main64330-10130-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

main64330-10140-03iEP71,NP70..DX,RI,SE,SI,TBS,TOR,XL198612-198912

W/RR SPEAKER,GRAY,GRAY,TRIM1#

main64330-10140-06iEP71,NP70..DX,SE,XL198612-198912

W/RR SPEAKER,BROWN,BROWN,TRIM4#

64373ASTOPPER, PACKAGE TRAY TRIM

main64373-10050×2iEP71,NP70..DX,RI,SE,SI,TBS,XL198410-198912

64387HANGER, PACKAGE TRAY TRIM

main64381-10010×2iEP71,NP70..DX,RI,SE,SI,TBS,XL198410-198912

64706COVER SUB-ASSY, QUARTER TRIM, JACK

main64707-10020-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main64707-10020-03iEP7#,NP7#198410-198912

GRAY,GRAY,TRIM1#

main64707-10020-04iEP7#..CD,DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main64707-10020-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

64709DCOVER, BACK DOOR STRIKER

main64749-10010-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main64749-10010-03iEP71,NP70..DX,RI,STD,TOR198410-198912

GRAY,GRAY,TRIM1#

main64749-10010-04iEP71..DX198410-198612

BLUE,BLUE,TRIM8#

main64749-10010-06iEP71,NP70..DX198612-198912

BROWN,BROWN,TRIM4#

64714BPLUG, HOLE(FOR DECK TRIM SIDE COVER)

main90950-01471-03×2iEP76,NP76198410-198912

GRAY,GRAY,TRIM1#

main90950-01471-04×2iEP76..CD198410-198612

BLUE,BLUE,TRIM8#

64714CCOVER, DECK SIDE TRIM, RH

main64714-10050-02iEP71..XL198410-198608

LISSE,MAROON,MAROON,TRIM3#

main64714-10050-03iEP7#198410-198608

GRAY,GRAY,TRIM1#

main64714-10050-04iEP7#..CD,DX,SE,XL198410-198608

BLUE,BLUE,TRIM8#

main64714-10051-02iEP71..DX198608-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main64714-10051-03iEP7#,NP7#198608-198912

GRAY,GRAY,TRIM1#

main64714-10051-04iEP7#..CD,DX,SE,XL198608-198612

BLUE,BLUE,TRIM8#

main64714-10051-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

main64714-10080-03iEP71..EFI,TBO198410-198608

W/BODY SONIC,GRAY,GRAY,TRIM1#

main64714-10081-03iEP71..EFI,TBO198608-198612

W/BODY SONIC,GRAY,GRAY,TRIM1#

main64714-10081-06iEP71,NP70..DX,SE,XL198612-198912

W/BODY SONIC,BROWN,BROWN,TRIM4#

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-05004-04×5iEP7#..CD,DX,SE,XL198410-198612

TYPE A,BLUE,BLUE,TRIM8#

main90467-05004-12×5iEP71..DX198601-198612

SOLEIL-L,TYPE A,MAROON,MAROON,TRIM3#

main90467-05004-13×5iEP7#,NP7#198410-198912

TYPE A,GRAY,GRAY,TRIM1#

main90467-05004-16×5iEP71,NP70..DX,SE,XL198612-198912

TYPE A,BROWN,BROWN,TRIM4#

main90467-07045-02iEP71..XL198410-198612

TYPE B,LISSE,MAROON,MAROON,TRIM3#

main90467-07045-03iEP7#,NP7#198410-198912

TYPE B,GRAY,GRAY,TRIM1#

main90467-07045-04iEP7#..CD,DX,SE,XL198410-198612

TYPE B,BLUE,BLUE,TRIM8#

main90467-07045-06iEP71,NP70..DX,SE,XL198612-198912

TYPE B,BROWN,BROWN,TRIM4#

main90467-10023iEP7#,NP7#198410-198912

TYPE C

64715CCOVER, DECK SIDE TRIM, LH

main64715-10040-02iEP71..DX198601-198608

SOLEIL-L,MAROON,MAROON,TRIM3#

main64715-10040-03iEP7#198410-198608

GRAY,GRAY,TRIM1#

main64715-10040-04iEP7#..CD,DX,SE,XL198410-198608

BLUE,BLUE,TRIM8#

main64715-10041-02iEP71..DX198608-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main64715-10041-03iEP7#,NP7#198608-198912

GRAY,GRAY,TRIM1#

main64715-10041-04iEP7#..CD,DX,SE,XL198608-198612

BLUE,BLUE,TRIM8#

main64715-10041-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

main64715-10070-03iEP71..EFI,TBO198410-198608

W/BODY SONIC,GRAY,GRAY,TRIM1#

main64715-10071-03iEP71..EFI,TBO198608-198612

W/BODY SONIC,GRAY,GRAY,TRIM1#

main64715-10071-06iEP71,NP70..DX,SE,XL198612-198912

W/BODY SONIC,BROWN,BROWN,TRIM4#

64716DCOVER, DECK TRIM, REAR

main64716-10060-02iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main64716-10060-03iEP71,NP70..SE,SI,TBS,XL198410-198912

GRAY,GRAY,TRIM1#

main64716-10060-04iEP71..SE,XL198410-198612

BLUE,BLUE,TRIM8#

main64716-10060-06iEP71,NP70..SE,XL198612-198912

BROWN,BROWN,TRIM4#

main64716-10070iEP7#,NP7#..CD,CS,DX,RI,STD,TOR198511-198912

64753AGARNISH, DECK SIDE, REAR, RH

main64753-10020-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main64753-10020-03iEP7#,NP7#..CD,CS,DX,RI,STD,TOR198410-198912

GRAY,GRAY,TRIM1#

main64753-10020-04iEP7#..CD,DX198410-198612

BLUE,BLUE,TRIM8#

main64753-10020-06iEP71,NP70..DX198612-198912

BROWN,BROWN,TRIM4#

64754AGARNISH, DECK SIDE, REAR, LH

main64754-10020-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main64754-10020-03iEP7#,NP7#..CD,CS,DX,RI,STD,TOR198410-198912

GRAY,GRAY,TRIM1#

main64754-10020-04iEP7#..CD,DX198410-198612

BLUE,BLUE,TRIM8#

main64754-10020-06iEP71,NP70..DX198612-198912

BROWN,BROWN,TRIM4#

64759ACOVER, SHOCK ABSORBER HEAD

main58731-10010-02×2iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main58731-10010-03×2iEP7#,NP7#198410-198912

GRAY,GRAY,TRIM1#

main58731-10010-04×2iEP7#..CD,DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main58731-10010-06×2iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

main58731-10030-03×2iEP71..TBS198612-198912

W/TEMS,RH,BROWN,GRAY,TRIM4#

main58732-10010-03×2iEP71..TBS198612-198912

W/TEMS,LH,BROWN,GRAY,TRIM4#

64770DCOVER ASSY, SPARE WHEEL

main64770-10010iEP7#198410-198601

main64770-10011iEP7#,NP7#198601-198912

8602

9011906283

main90119-06283

9015940108

main90159-40108

9018905003

main90189-05003

9046805014

main90468-05014

9356054012

main93560-54012

9356755016

main93567-55016

27 parts on this diagram · 1 diagram in section
