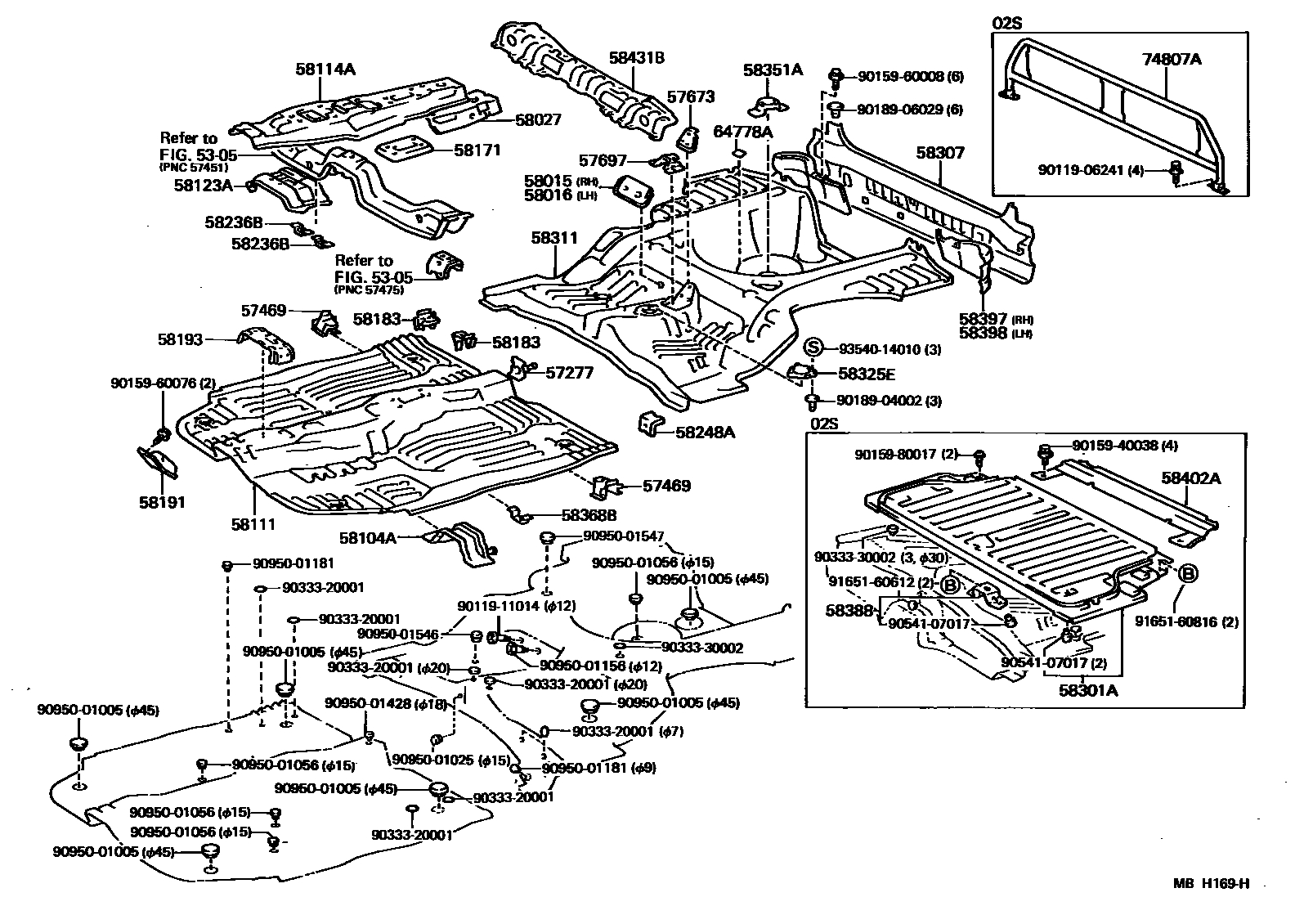

FLOOR PAN & LOWER BACK PANEL

5305

57277BRACKET, CATALYTIC CONVERTER SUPPORT, RH

main57027-10010iEP7#,NP7#198410-198912

57469BRACKET, FRONT SEAT, OUTSIDE

main57468-10020iEP7#,NP7#198410-198912

RH

main57469-10020iEP7#,NP7#198410-198912

LH

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57607-10020iEP76,NP76..02S;EP71,NP70..SE,SI,XL198410-198812

main57673-10010iEP76,NP76..02S;EP71,NP70..SE,SI,XL198812-198912

57697RETAINER, REAR SEAT CUSHION

main57697-16010iEP7#,NP7#198410-198912

58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH

main58015-10010iEP7#,NP7#198410-198912

58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH

main58015-10010iEP7#,NP7#198410-198912

58027REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1

main58027-10010iEP7#198410-198612

sub58027-10011

main58027-10011iEP7#,NP7#198612-198912

sub58027-10030

58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT

main58104-10030iEP71,NP7#..DSL,TBO198601-198912

58111PAN, FRONT FLOOR

main58111-10100iEP7#,NP7#198410-198912

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-10030iEP7#,NP7#198410-198912

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-10030iEP7#,NP7#198410-198912

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-10030iEP7#,NP7#198410-198912

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-10040iEP7#,NP7#198410-198912

58191FOOTREST, FRONT FLOOR

main58191-10020iEP71..EFI,TBO;EP71..3D..4F..DX198410-198912

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-16010iNP7#198612-198912

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iEP71..EFI,TBO198410-198912

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-10010iEP7#,NP7#198410-198912

58301APANEL SUB-ASSY, REAR FLOOR

main58300-11010iEP76,NP76..02S198410-198912

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-10220iEP7#..CBR,EFI198410-198612

main58307-10230iEP71..TBO198601-198912

main58307-10260iEP7#,NP7#..CBR,DSL,EFI198612-198912

58311PAN, REAR FLOOR

main58311-10130iEP71..5D..TBO198410-198912

sub58311-10131

main58311-10131iEP76,NP76..02S198801-198912

main58311-10140iEP71..XL198410-198801

LISSE

sub58311-10141

main58311-10140iEP71..3D..TBO198601-198912

sub58311-10141

main58311-10141iEP76,NP76..05S198801-198912

LISSE

main58311-11090iEP76..05S198410-198601

sub58311-10140

main58311-11100iEP76..02S198410-198601

sub58311-10130

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-16020iEP7#,NP7#198410-198912

58351ABRACKET, SPARE WHEEL CARRIER

main58351-10020iEP7#,NP7#198410-198912

58368BBRACKET, FUEL TUBE, NO.2

main58368-10010iEP7#,NP7#198410-198912

58388RETAINER, REAR BUMPER MUDGUARD

main58388-11030iEP76,NP76..02S198410-198912

58397COVER, LOWER BACK, OUTER RH

main58397-10010iEP7#..CBR,EFI198410-198912

main58397-10020iNP7#198612-198912

58398COVER, LOWER BACK, OUTER LH

main58398-10010iEP7#,NP7#..CBR,DSL,EFI198410-198912

58402ABOARD SUB-ASSY, REAR FLOOR, NO.2

main58402-11010iEP76,NP76..02S198410-198912

58431BPAN, REAR FLOOR, FRONT

main58431-11010iEP76,NP76..05S198410-198912

64778APROTECTOR, SPARE WHEEL

main64778-10020iEP71,NP70198410-198912

74807ABAR SUB-ASSY, REAR SEPARATOR

main74807-11010iEP76,NP76..02S198410-198912

9011906241

main90119-06241

9011911014

main90119-11014

9015940038

main90159-40038

9015960008

main90159-60008

9015960076

main90159-60076

9015980017

main90159-80017

9018904002

main90189-04002

9018906029

main90189-06029

9033320001

main90333-20001

9033330002

main90333-30002

9054107017

main90541-07017

9095001005

main90950-01005

9095001025

main90950-01025

9095001056

main90950-01056

9095001156

main90950-01156

9095001181

main90950-01181

9095001428

main90950-01428

9095001546

main90950-01546

9095001547

main90950-01547

9165160612

main91651-60612

9165160816

main91651-60816

9354014010

main93540-14010

53 parts on this diagram · 1 diagram in section
