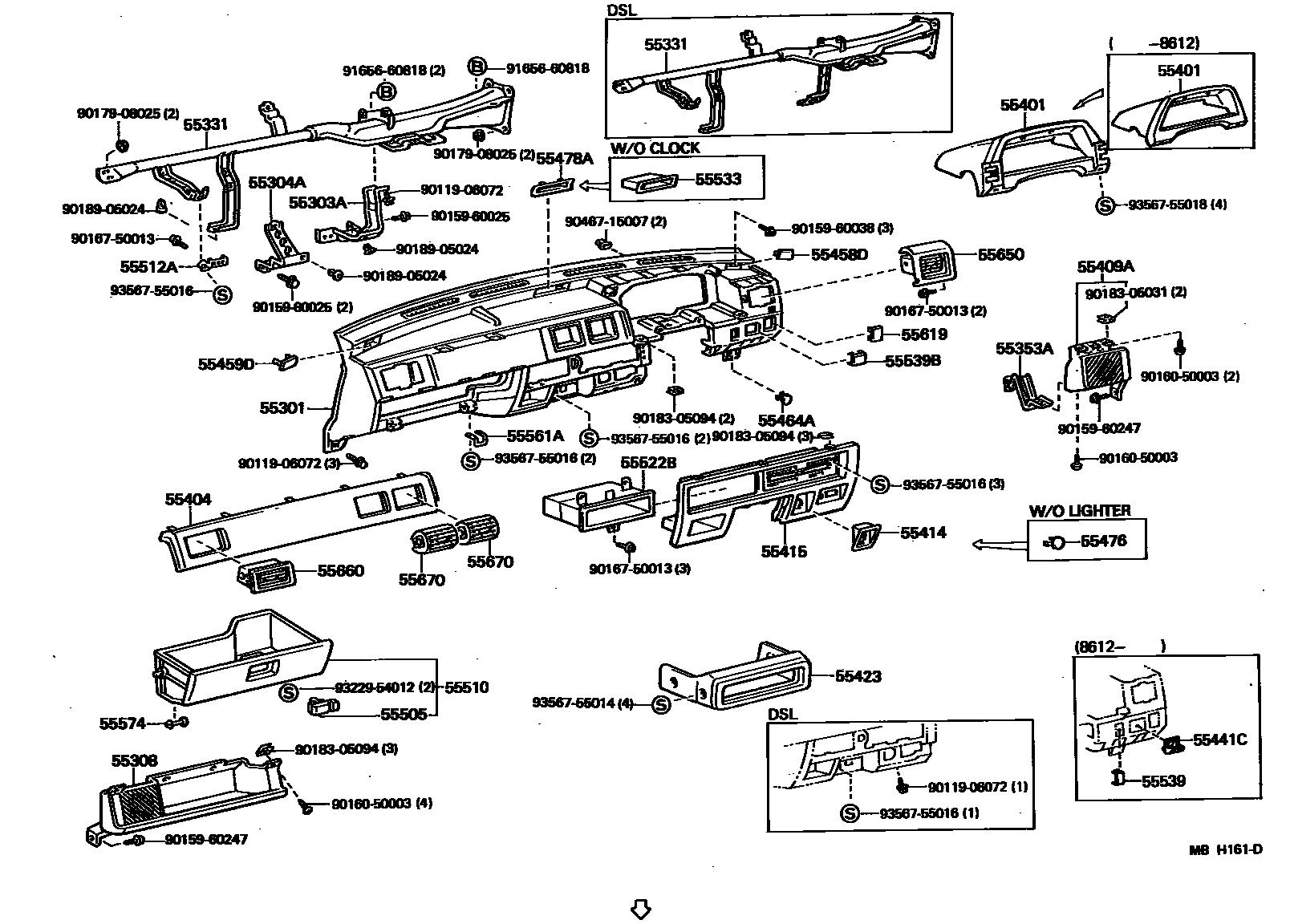

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55311-10160-02iEP71..XL198410-198608

LISSE,MAROON,MAROON,TRIM3#

sub55086-10051

main55311-10160-03iEP7#198410-198608

GRAY,GRAY,TRIM1#

sub55086-10051

main55311-10160-04iEP7#..CD,DX,SE,XL198410-198608

BLUE,BLUE,TRIM8#

sub55086-10051

main55311-10161-02iEP71..DX198608-198612

LISSE,MAROON,MAROON,TRIM3#

main55311-10161-03iEP7#,NP7#198608-198912

GRAY,GRAY,TRIM1#

main55311-10161-04iEP7#..CD,DX,SE,XL198608-198612

BLUE,BLUE,TRIM8#

main55311-10161-06iEP7#,NP7#198612-198912

BROWN,BROWN,TRIM4#

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-10070iEP7#198410-198912

55304ASTAY SUB-ASSY, INSTRUMENT PANEL, CENTER

main55304-10020iEP7#198410-198612

main55304-10040iEP7#,NP7#198612-198912

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55611-10040-01iEP7#,NP7#198410-198912

BLACK,BLACK,TRIM1#,8#

main55611-10040-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main55611-10040-04iEP71..SE,XL198410-198612

BLUE,BLUE,TRIM8#

main55611-10040-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-10040iEP7#198410-198612

main55330-10050iNP7#198612-198912

W/CD STEREO

main55330-10070iEP7#198612-198912

55353ABRACKET, SPEAKER MOUNTING, NO.1

main55353-10010iEP7#,NP7#198410-198912

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-10090-02iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main55404-10090-03iEP7#198410-198612

GRAY,GRAY,TRIM1#

main55404-10090-04iEP7#..CD,DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main55404-10100-02iEP71..XL198410-198612

LISSE,W/TILT STEERING,MAROON,MAROON,TRIM3#

main55404-10100-03iEP71..SE,SI,TBS,XL198410-198612

W/TILT STEERING,GRAY,GRAY,TRIM1#

main55404-10100-04iEP71..XL198410-198612

W/TILT STEERING,BLUE,BLUE,TRIM8#

main55404-10120-03iEP7#,NP7#198612-198912

GRAY,GRAY,TRIM1#

main55404-10120-06iEP71,NP70..DX,XL198612-198912

BROWN,BROWN,TRIM4#

main55404-10130-03iEP71..SE,SI,TBS,XL198612-198912

W/TILT STEERING,GRAY,GRAY,TRIM1#

main55404-10130-06iEP71..SE,XL198612-198912

W/TILT STEERING,BROWN,BROWN,TRIM4#

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-10210-02iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main55401-10210-03iEP7#198410-198612

GRAY,GRAY,TRIM1#

main55401-10210-04iEP7#..CD,DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main55401-10211-02iEP7#,NP7#198706-198912

MAROON,MAROON,TRIM3#

main55401-10211-03iEP7#,NP7#198612-198912

GRAY,GRAY,TRIM1#

main55401-10211-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-10040-01iEP7#,NP7#198410-198912

BLACK,BLACK,TRIM1#,8#

main55472-10040-02iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main55472-10040-04iEP71..SE,XL198410-198612

CD-L,BLUE,BLUE,TRIM8#

main55472-10040-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-10040iEP7#,NP7#198410-198912

W/CIGARETTE LIGHTER

main55477-10050iEP7#,NP76..CS,STD198612-198912

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-10190iEP7#..CBR198410-198612

main55405-10191iEP7#,NP7#..CBR,DSL198612-198912

main55405-10250iEP71..EFI198410-198612

main55405-10251iEP71..EFI,TBO198612-198912

main55405-10290iEP71..TBO198601-198612

55423PANEL, STEREO PLAYER FINISH

main55423-10040iEP7#..CD,CS,DX,RI,STD,XL198410-198601

55441CBOX, INSTRUMENT PANEL COIN

main55441-10090-03iEP7#,NP7#198612-198912

GRAY,GRAY,TRIM1#

main55441-10090-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

55458DCOVER, INSTRUMENT LOWER, RH

main55458-10010-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main55458-10010-03iEP7#198410-198612

GRAY,GRAY,TRIM1#

main55458-10010-04iEP7#..CD,DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main55458-10011-03iEP7#,NP7#198612-198912

GRAY,GRAY,TRIM1#

main55458-10011-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

55459DCOVER, INSTRUMENT, LOWER LH

main55459-10020-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main55459-10020-03iEP7#198410-198612

GRAY,GRAY,TRIM1#

main55459-10020-04iEP7#..CD,DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main55459-10021-03iEP7#,NP7#198612-198912

GRAY,GRAY,TRIM1#

main55459-10021-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

55464ACOVER, CHOKE KNOB HOLE

main55617-10010-12iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main55617-10010-13iEP7#198410-198912

GRAY,GRAY,TRIM1#

main55617-10010-14iEP7#..CD,DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main55617-10010-46iEP71..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

55476COVER, CIGARETTE LIGHTER HOLE

main55477-10050iEP7#,NP76..CS,STD198410-198912

55478ABEZEL, AUTO CLOCK HOLE

main55478-10010-02iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main55478-10010-03iEP7#,NP7#..CD,CS,DX,RI,SE,STD,TBS198410-198912

GRAY,GRAY,TRIM1#

main55478-10010-04iEP7#..CD,DX,SE198410-198612

BLUE,BLUE,TRIM8#

main55478-10010-06iEP71,NP70..DX,SE198612-198912

BROWN,BROWN,TRIM4#

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-10010-02iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main55560-10010-03iEP7#198410-198612

GRAY,GRAY,TRIM1#

main55560-10010-04iEP7#..CD,DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main55560-10010-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

main55560-10010-13iEP7#,NP7#198612-198912

GRAY,GRAY,TRIM1#

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-10050-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main55550-10050-03iEP7#,NP7#198410-198912

GRAY,GRAY,TRIM1#

main55550-10050-04iEP7#..CD,DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main55550-10050-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

55512APLATE, GLOVE COMPARTMENT

main55512-10060iEP7#,NP7#198410-198912

55522BCOVER, RADIO TUNER OPENING

main55522-10040iEP7#,NP7#198410-198912

sub55522-47020

55533COVER, AUTO CLOCK HOLE

main55533-10030-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main55533-10030-03iEP7#,NP7#..CD,CS,DX,RI,STD,TOR,XL198410-198912

GRAY,GRAY,TRIM1#

main55533-10030-04iEP7#..CD,DX,XL198410-198612

BLUE,BLUE,TRIM8#

main55533-10030-06iEP71,NP70..DX,XL198612-198912

BROWN,BROWN,TRIM4#

55539COVER, SPARE SWITCH HOLE

main55539-24010-13iEP7#,NP7#198612-198912

GRAY,GRAY,TRIM1#

sub55539-32010

sub55539-14030

sub55539-20030

main55539-24010-36iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

sub55539-32010

sub55539-14030

sub55539-20030

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-10030-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main55539-10030-03iEP7#..CD,CS,DX,STD198410-198612

GRAY,GRAY,TRIM1#

main55539-10030-04iEP7#..CD,DX198410-198612

BLUE,BLUE,TRIM8#

main55539-24010-13iEP7#,NP7#198612-198912

GRAY,GRAY,TRIM1#

sub55539-32010

sub55539-14030

sub55539-20030

main55539-24010-36iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

sub55539-32010

sub55539-14030

sub55539-20030

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-17010iEP7#,NP7#198410-198912

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iEP7#,NP7#198410-198912

55619COVER, SWITCH HOLE

main74267-24010-03iEP7#,NP7#198410-198912

GRAY,GRAY,TRIM1#

main74267-24010-04iEP7#..CD,DX,XL198410-198612

BLUE,BLUE,TRIM8#

main74267-24010-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,SEPIA BROWN,TRIM4#

main74267-24010-22iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-10050-02iEP71..XL198410-198509

LISSE,MAROON,MAROON,TRIM3#

main55650-10050-03iEP7#198410-198509

GRAY,GRAY,TRIM1#

main55650-10050-04iEP7#..CD,DX,SE,XL198410-198509

BLUE,BLUE,TRIM8#

main55650-10051-02iEP71..XL198509-198612

LISSE,MAROON,MAROON,TRIM3#

main55650-10051-03iEP7#198509-198612

GRAY,GRAY,TRIM1#

main55650-10051-04iEP7#..CD,DX,SE,XL198509-198612

BLUE,BLUE,TRIM8#

main55650-10070-03iEP7#,NP7#198612-198912

GRAY,GRAY,TRIM1#

main55650-10070-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-10010-02iEP71..XL198410-198509

LISSE,MAROON,MAROON,TRIM3#

main55660-10010-03iEP7#198410-198612

GRAY,GRAY,TRIM1#

main55660-10010-04iEP7#..CD,DX,SE,XL198410-198509

BLUE,BLUE,TRIM8#

main55660-10011-02iEP71..DX198601-198612

SOLEIL-L,MAROON,MAROON,TRIM3#

main55660-10011-03iEP7#198509-198612

GRAY,GRAY,TRIM1#

main55660-10011-04iEP7#..CD,DX,SE,XL198509-198612

BLUE,BLUE,TRIM8#

main55660-10012-03iEP7#,NP7#198612-198912

GRAY,GRAY,TRIM1#

main55660-10012-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55063-10020-02×2iEP71..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

main55063-10020-03×2iEP7#,NP7#198410-198912

GRAY,GRAY,TRIM1#

main55063-10020-04×2iEP7#..CD,DX,SE,XL198410-198612

BLUE,BLUE,TRIM8#

main55063-10020-06iEP71,NP70..DX,SE,XL198612-198912

BROWN,BROWN,TRIM4#

9011906072

main90119-06072

9015960025

main90159-60025

9015960038

main90159-60038

9015960247

main90159-60247

9016050003

main90160-50003

9016750013

main90167-50013

9017908025

main90179-08025

9018305031

main90183-05031

9018305094

main90183-05094

9018905024

main90189-05024

9046715007

main90467-15007

9165660818

main91656-60818

9322954012

main93229-54012

9356755014

main93567-55014

9356755016

main93567-55016

9356755018

main93567-55018

47 parts on this diagram · 1 diagram in section
