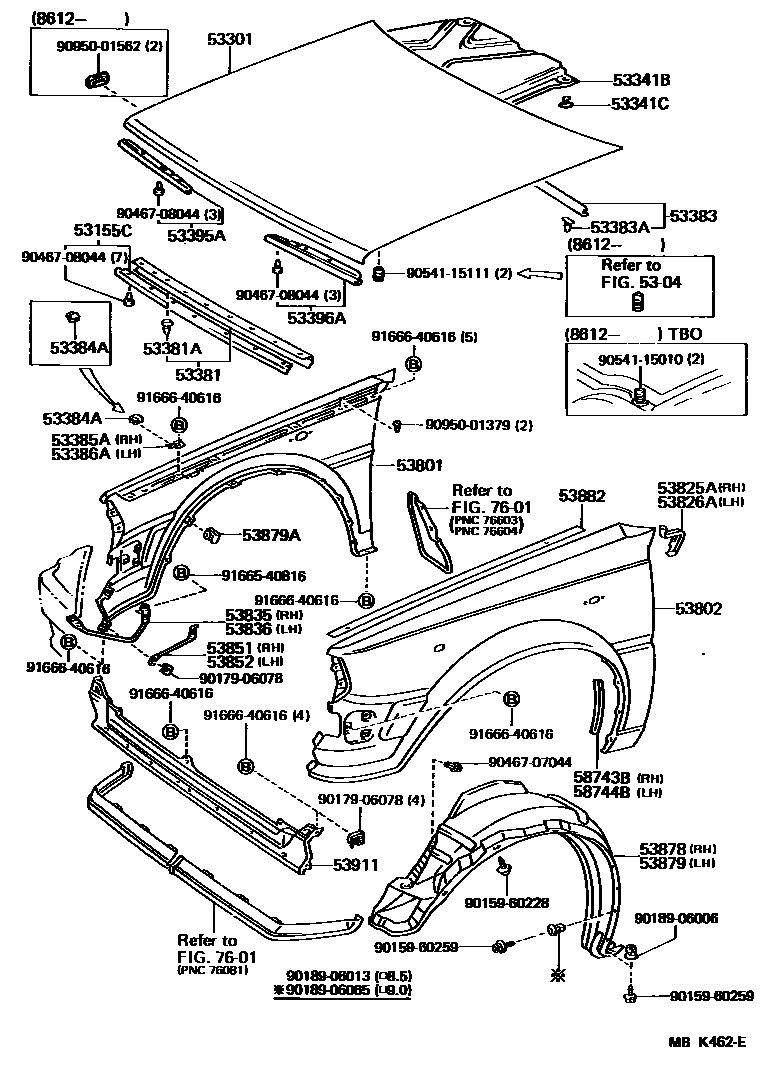

HOOD & FRONT FENDER

0001 1 0002 1

5304

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-10020iEP71..TBO198712-198912

main53155-10030iEP71..TBO198601-198712

main53155-10040iNP7#198612-198912

53301HOOD SUB-ASSY

main53301-10220iEP7#198410-198505

main53301-10230iEP7#..CBR,EFI198505-198612

main53301-10250iEP71..TBO198601-198912

main53301-10260iEP7#,NP7#..CBR,DSL,EFI198612-198912

sub53301-10270

53341BINSULATOR, HOOD

main53341-10010iEP71..TBO198601-198912

main53341-10020iNP7#198612-198912

53341CCLIP(FOR HOOD INSULATOR)

main90467-09041×11iNP7#198612-198912

sub90467-09050

main90467-11020×6iEP71..TBO198601-198912

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-10040iEP7#198410-198912

main53381-10060iNP7#198612-198912

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iEP7#198410-198912

main90467-08044iNP7#198612-198912

53383SEAL, HOOD TO COWL TOP

main53383-10020iEP7#,NP7#198410-198912

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08030×8iEP7#,NP7#198410-198912

53384ABUMPER, FENDER TO HOOD

main53384-10040×2iEP7#198410-198508

main53384-10050×2iEP7#,NP7#198508-198807

main53384-10051×2iEP7#,NP7#198807-198912

53385ARETAINER, HOOD BUMPER, RH

main53386-14010iEP7#,NP7#198508-198912

53386ARETAINER, HOOD BUMPER, LH

main53385-14010iEP7#,NP7#198508-198912

53395ASEAL, HOOD TO FRONT END PANEL, NO.1

main53395-10021iEP7#,NP7#..CBR,DSL,EFI198612-198912

53396ASEAL, HOOD TO FRONT END PANEL, NO.2

main53396-10011iEP7#,NP7#..CBR,DSL,EFI198612-198912

53801FENDER SUB-ASSY, FRONT RH

main53801-10440iEP7#198410-198508

W/MIRROR HOLE

main53801-10441iEP7#..CBR,EFI198508-198612

W/MIRROR HOLE

main53801-10442iEP7#,NP7#..CBR,DSL,EFI198612-198912

W/MIRROR HOLE

main53801-10450iEP76..CD..05S198410-198508

W/O MIRROR HOLE

main53801-10451iEP76..CD..05S198508-198612

W/O MIRROR HOLE

main53801-10452iEP71,NP70..CBR,DSL,EFI198612-198912

W/O MIRROR HOLE

main53801-10511iEP71..TBO198601-198912

W/O MIRROR HOLE

main53801-10520iEP71..TBO198601-198912

W/MIRROR HOLE

53802FENDER SUB-ASSY, FRONT LH

main53802-10540iEP7#198410-198508

W/MIRROR HOLE

main53802-10541iEP7#..CBR,EFI198508-198612

W/MIRROR HOLE

main53802-10542iEP7#,NP7#..CBR,DSL,EFI198612-198912

W/MIRROR HOLE

main53802-10550iEP76..CD..05S198410-198508

W/O MIRROR HOLE

main53802-10551iEP76..CD..05S198508-198612

W/O MIRROR HOLE

main53802-10552iEP71,NP70..CBR,DSL,EFI198612-198912

W/O MIRROR HOLE

main53802-10611iEP71..TBO198601-198912

W/O MIRROR HOLE

main53802-10620iEP71..TBO198601-198912

W/MIRROR HOLE

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-10030iEP7#,NP7#198410-198912

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-10030iEP7#,NP7#198410-198912

53835BRACE, FRONT FENDER TO EXTENSION, RH

main53835-10030iEP71..TBO198601-198912

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53836-10030iEP71..TBO198601-198912

53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH

main53851-10010iEP71..TBO198601-198912

53852BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH

main53852-10010iEP71..TBO198601-198912

53878LINER, FRONT FENDER, RH

main53875-10020iEP7#,NP7#198410-198912

53879LINER, FRONT FENDER, LH

main53876-10020iEP7#,NP7#198410-198912

53879ARETAINER, FRONT FENDER LINER

main53879-10010×6iEP7#,NP7#198410-198912

sub53879-22010

53882PACKING, FRONT FENDER MAIN

main53882-10050×2iEP7#,NP7#198410-198912

53911PANEL, FRONT VALANCE

main53911-10080iEP7#..CD,CS,DX,STD198410-198505

main53911-10090iEP71..RI,SE,SI,XL198410-198505

main53911-10100iEP71..EFI198410-198505

W/SPOILER

main53911-10110iEP7#..CD,CS,DX,STD198505-198612

main53911-10120iEP71..RI,SE,SI,XL198505-198612

main53911-10130iEP71..EFI198505-198612

W/SPOILER

main53911-10140iEP71..EFI198612-198912

58743BPROTECTER, FRONT FENDER PANEL, RH

main58743-12010iEP7#,NP7#198801-198912

W/O FRONT MUD GUARD

58744BPROTECTER, FRONT FENDER PANEL, LH

main58743-12010iEP7#,NP7#198801-198912

W/O FRONT MUD GUARD

7601

9015960228

main90159-60228

9015960259

main90159-60259

9017906078

main90179-06078

9018906006

main90189-06006

9018906013

main90189-06013

9018906065

main90189-06065

9046707044

main90467-07044

9046708044

main90467-08044

9054115010

main90541-15010

9054115111

main90541-15111

9095001379

main90950-01379

9095001562

main90950-01562

9166540816

main91665-40816

9166640616

main91666-40616

44 parts on this diagram · 2 diagrams in section
