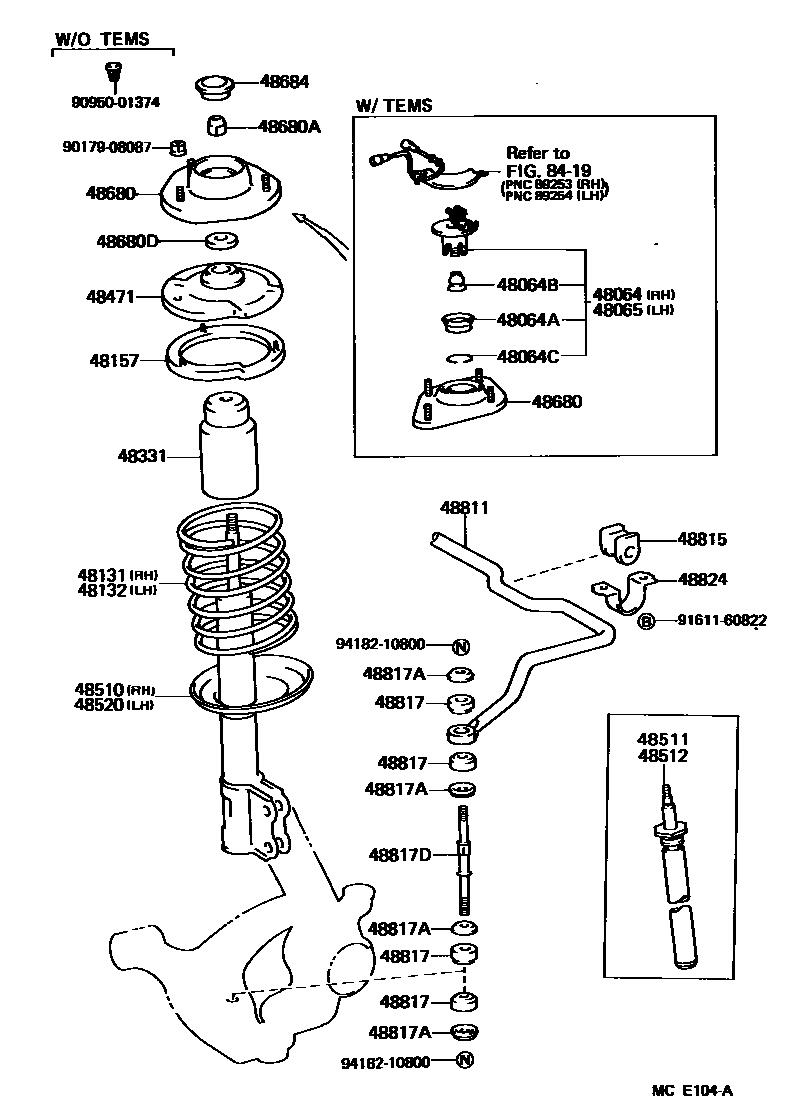

FRONT SPRING & SHOCK ABSORBER

48064COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH

main48064-16020iEP71..TBS198612-198912

W/TEMS

48064ASEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER)

main90304-26001iEP71..TBS198612-198912

48064BGROMMET(FOR FRONT SUSPENSION SUPPORT COVER)

main90480-13019iEP71..TBS198612-198912

48064CRING, SET(FOR FRONT SUSPENSION SUPPORT COVER)

main90522-24001iEP71..TBS198612-198912

48065COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH

main48065-16020iEP71..TBS198612-198912

48131SPRING, FRONT COIL, RH

main48131-10220iEP7#..MTM..CBR198410-198912

main48131-10250iEP71..5F..EFI198410-198912

main48131-10270iEP71..3FC198410-198912

main48131-10320iEP71..5F..TBO198601-198712

main48131-10330iEP71..4FC..TBO198601-198712

main48131-10340iEP71..5F..TBS198612-198712

W/TEMS

main48131-10350iEP71..4FC..TBO198612-198712

W/TEMS

main48131-10370iNP7#..5F198612-198912

main48131-10380iNP70..4FC198612-198912

main48131-10400iEP71..5F..TBO198712-198912

main48131-10410iEP71..4FC..TBO198712-198912

main48131-10420iEP71..5F..TBS198712-198807

W/TEMS

main48131-10421iEP71..5F..TBS198807-198912

W/TEMS

main48131-10430iEP71..4FC..TBO198712-198807

W/TEMS

main48131-10431iEP71..4FC..TBO198807-198912

W/TEMS

48132SPRING, FRONT COIL, LH

main48131-10210iEP7#..MTM..CBR198410-198912

main48131-10240iEP71..5F..EFI198410-198912

main48131-10270iEP71..3FC198410-198912

main48131-10310iEP71..5F..TBO198601-198712

main48131-10320iEP71..4FC..EFI198612-198712

main48131-10330iEP71..4FC..TBO198601-198712

main48131-10340iEP71..5F..TBS198612-198712

W/TEMS

main48131-10350iEP71..4FC..TBO198612-198712

W/TEMS

main48131-10360iNP7#..5F198612-198912

main48131-10380iNP70..4FC198612-198912

main48131-10390iEP71..5F..TBO198712-198912

main48131-10400iEP71..4FC..EFI198712-198912

main48131-10410iEP71..4FC..TBO198712-198912

main48131-10420iEP71..5F..TBS198712-198807

W/TEMS

main48131-10421iEP71..5F..TBS198807-198912

W/TEMS

main48131-10430iEP71..4FC..TBO198712-198807

W/TEMS

main48131-10431iEP71..4FC..TBO198807-198912

W/TEMS

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-10010iEP7#,NP7#198410-198912

48331BUMPER, FRONT SPRING, NO.1

main48331-10070iEP7#,NP7#198410-198912

main48331-16050iEP71..TBS198612-198912

W/TEMS

48471SEAT, FRONT SPRING, UPPER

main48044-10020iEP7#,NP7#198410-198912

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-10120iEP7#..CBR198410-198612

sub48510-10131

sub90105-12069

sub90179-12066

main48510-10130iEP7#..CBR198612-198701

sub48510-10131

sub90105-12069

sub90179-12066

main48510-10131iEP7#..CBR198701-198912

sub48510-10420

main48510-10141iNP7#198612-198912

sub48510-10131

main48510-10160iEP71..5F..EFI198410-198701

sub48510-10161

sub90105-12069

sub90179-12066

main48510-10161iEP71..5F..EFI198701-198912

sub48510-10171

main48510-10170iEP71..TBO198601-198701

sub48510-10171

sub90105-12069

sub90179-12066

main48510-10171iEP71..TBO198701-198912

sub48510-10430

main48510-10180iEP71..TBS198612-198912

W/TEMS

sub48510-16170

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-10060iEP7#..CBR198410-198912

sub48511-10100

main48511-10070iEP71..EFI198410-198912

sub48511-10080

main48511-10080iEP71..TBO198601-198912

L/TEMS

sub48511-16020

main48511-10090iNP7#198612-198912

sub48511-10100

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-10060iEP7#..CBR198410-198912

sub48511-10100

main48511-10070iEP71..EFI198410-198912

sub48511-10080

main48511-10080iEP71..TBO198601-198912

L/TEMS

sub48511-16020

main48511-10090iNP7#198612-198912

sub48511-10100

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-10100iEP7#..CBR198410-198612

sub48520-10111

sub90105-12069

sub90179-12066

main48520-10110iEP7#..CBR198612-198701

sub48520-10111

sub90105-12069

sub90179-12066

main48520-10111iEP7#..CBR198701-198912

sub48520-10400

main48520-10121iNP7#198612-198912

sub48520-10111

main48520-10140iEP71..5F..EFI198410-198701

sub48520-10141

sub90105-12069

sub90179-12066

main48520-10141iEP71..5F..EFI198701-198912

sub48520-10151

main48520-10150iEP71..TBO198601-198701

sub48520-10151

sub90105-12069

sub90179-12066

main48520-10151iEP71..TBO198701-198912

sub48520-10410

main48520-10160iEP71..TBS198612-198912

W/TEMS

sub48520-16010

48680SUPPORT ASSY, FRONT SUSPENSION

main48609-10060iEP7#..CBR,EFI198410-198912

main48609-10080iEP71..TBO198601-198912

main48609-16060iEP71..TBS198612-198811

W/TEMS

sub48609-16120

main48609-16120iEP71..TBS198811-198912

W/TEMS

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14029iEP71..TBS198612-198912

W/TEMS

main94182-11400iEP7#,NP7#198410-198912

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iEP7#,NP7#198410-198912

48684COVER, BEARING DUST

main48684-10010iEP7#,NP7#198410-198912

48811BAR, STABILIZER, FRONT

main48811-10180iEP71..EFI198410-198912

main48811-10210iEP71..TBO198601-198712

main48811-10250iEP71..TBO198712-198912

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-10080iEP71..EFI198410-198912

main48815-10090iEP71..TBO198712-198912

48817CUSHION, FRONT STABILIZER

main48817-30020iEP71..EFI,TBO198410-198912

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iEP71..EFI,TBO198410-198912

48817DBOLT(FOR FRONT STABILIZER)

main48819-20030iEP71..EFI,TBO198410-198912

48824BRACKET, STABILIZER, FRONT

main48824-20040iEP71..EFI,TBO198410-198912

8419

9017908087

main90179-08087

9095001374

main90950-01374

9161160822

main91611-60822

9418210800

main94182-10800

29 parts on this diagram · 1 diagram in section
