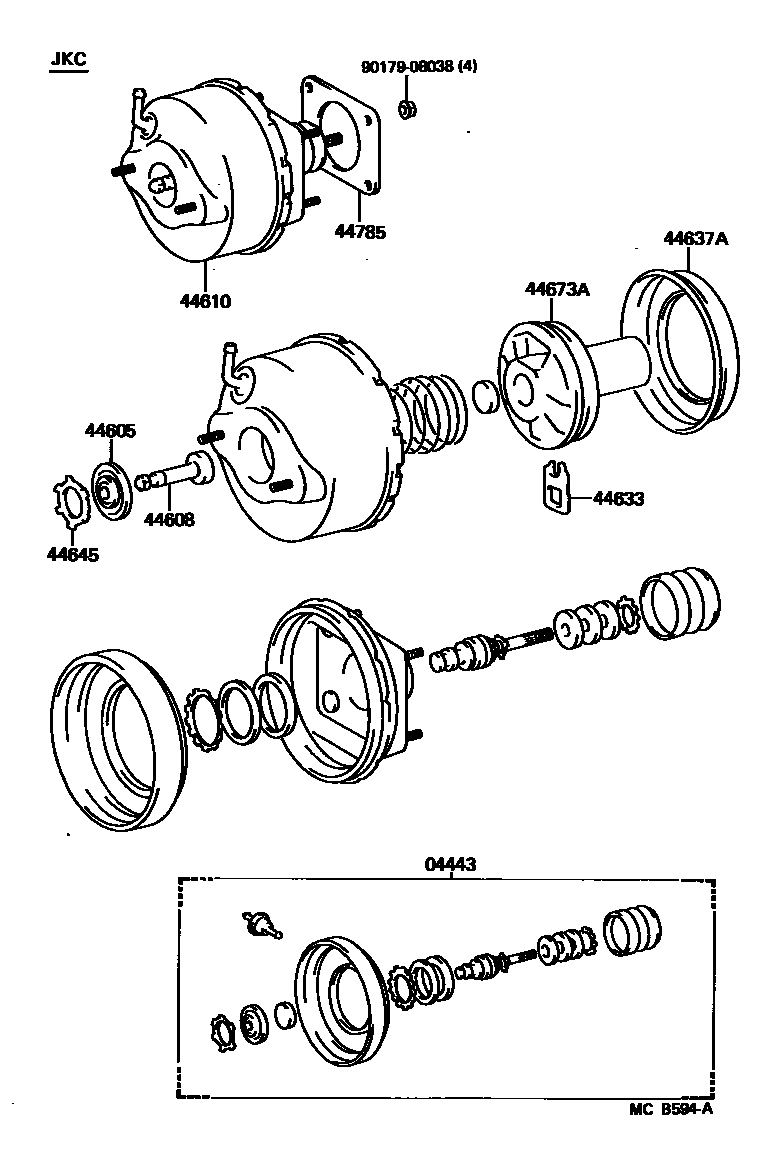

BRAKE BOOSTER & VACUUM TUBE

0001 15 OR 6 INCHES 0003 16 INCHES 0004 17 INCHES 0005 1 0006 1 0007 1

04443BOOSTER KIT, BRAKE

main04443-10050iEP7#..4F..(CD,CS,DX,STD)198410-198611

5 INCHES

sub04443-10051

main04443-10051iEP7#..4F..(CD,CS,DX,STD)198611-198912

5 INCHES

main04443-10080iEP71..RI,SE,SI,XL198410-198606

6 INCHES

sub04443-10130

main04443-10090iEP71..TBO198601-198606

6 INCHES

sub04443-10100

main04443-10100iEP71..TBO198606-198612

6 INCHES

main04443-10110iEP71..TBO198612-198912

7 INCHES

main04443-10120iNP7#198612-198912

7 INCHES

main04443-10130iEP71..5F..EFI198606-198912

6 INCHES

main04443-10140iNP7#198612-198912

6 INCHES

main04443-10150iEP71..4FC..EFI198612-198912

7 INCHES

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-10080iEP7#,NP7#198410-198912

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iNP7#198612-198912

AISIN

main44608-32020iEP7#,NP7#198410-198912

JKC

44610BOOSTER ASSY, BRAKE

main44610-10080iEP7#198410-198611

5 INCHES

sub44610-10081

main44610-10081iEP7#..4F..(CD,CS,DX,STD)198611-198912

5 INCHES

main44610-10090iEP71..RI,SE,SI,TBS,TOR,XL198410-198606

6 INCHES

sub44610-10130

main44610-10100iEP71..4FC..EFI198612-198912

7 INCHES

main44610-10110iNP7#198612-198912

6 INCHES

main44610-10120iNP7#198612-198912

7 INCHES

main44610-10130iEP71..3FC..DX198606-198912

6 INCHES

44633KEY, BOOSTER VALVE PLUNGER

main44633-28130iEP7#198410-198912

main44633-28190iEP71..4FC..EFI198612-198912

44637APLATE, BOOSTER DIAPHRAGM

main44637-10080iEP7#198410-198912

5 INCHES

main44637-12470iEP71..SE,XL198410-198912

6 INCHES

main44637-16060iEP71..4FC..EFI198612-198912

7 INCHES

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iEP7#,NP7#198410-198912

44673ABODY, BOOSTER VALVE

main44673-10080iEP7#198410-198611

5 INCHES

main44673-16170iEP71,NP7#..DSL,TBO198612-198912

7 INCHES

main44673-28180iEP71..5F..EFI198606-198912

6 INCHES

main44673-30480iEP71..RI,SE,SI,TBS,TOR,XL198410-198606

6 INCHES

main44673-30480iEP7#..4F..(CD,CS,DX,STD)198611-198912

5 INCHES

44785GASKET, BRAKE BOOSTER

main44785-14010iEP7#,NP7#198410-198912

9017908038

main90179-08038

10 parts on this diagram · 6 diagrams in section
