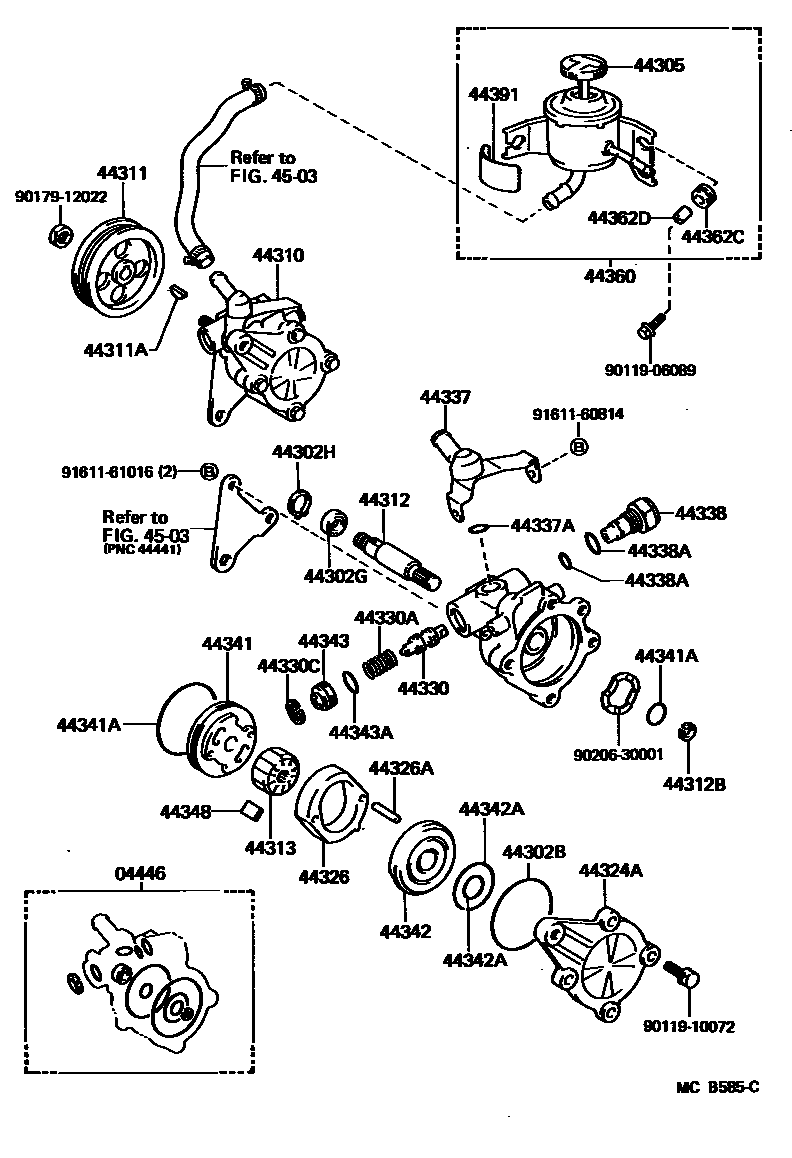

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-12030iEP71..DX,SE,XL198410-198912

main04446-16030iEP71,NP70..DSL,TBO198601-198912

sub04446-20030

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-63002iEP71..DX,SE,XL198410-198912

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iEP71,NP70..DSL,TBO198601-198912

main90311-18008iEP71..DX,SE,SI,XL198410-198912

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-32001iEP71..DX,SE,XL198410-198912

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iEP71..DX,SE,TBS,TOR,XL198410-198912

sub44305-22040

44310PUMP ASSY, VANE

main44320-10010iEP71..DX,SE,XL198410-198612

sub44320-10030

sub44348-10040

main44320-10020iEP71..TBO198601-198804

sub44320-10021

main44320-10021iEP71..TBO198804-198912

main44320-10030iEP71..DX,SE,SI,XL198612-198804

sub44320-10031

main44320-10031iEP71..DX,SE,SI,XL198804-198912

main44320-10040iNP70198612-198804

sub44320-10041

main44320-10041iNP70198804-198912

main44320-10050iEP71..DX,XL198810-198912

44311PULLEY, VANE PUMP

main44311-10010iEP71..DX,SE,XL198410-198604

sub44311-10021

main44311-10011iEP71..DX,SE,XL198604-198912

main44311-10020iEP71..TBO198601-198604

main44311-10021iEP71..TBO198604-198912

main44311-12030iNP70198612-198912

44311AKEY, VANE PUMP PULLEY

main90280-05008iEP71..DX,SE,TBS,TOR,XL198410-198912

44312SHAFT, VANE PUMP

main44312-12020iEP71..DX,SE,XL198410-198912

main44312-12030iEP71,NP70..DSL,TBO198601-198912

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iEP71,NP70..DX,SE,SI,TBS,TOR,XL198410-198912

44313ROTOR, VANE PUMP

main44313-12010iEP71,NP70..DX,SE,SI,TBS,TOR,XL198410-198804

sub44313-22040

main44313-12020iEP71..DX,SE,TBS,TOR,XL198410-198804

sub44313-22050

main44313-12030iEP71,NP70..DX,SE,SI,TBS,TOR,XL198410-198804

sub44313-22060

main44313-12040iEP71..DX,SE,TBS,TOR,XL198410-198804

sub44313-22070

main44313-12050iEP71,NP70..DX,SE,SI,TBS,TOR,XL198410-198804

sub44313-22080

main44313-22040iEP71,NP70..DX,SE,SI,TBS,TOR,XL198804-198912

main44313-22050iEP71,NP70..DX,SE,SI,TBS,TOR,XL198804-198912

main44313-22060iEP71,NP70..DX,SE,SI,TBS,TOR,XL198804-198912

main44313-22070iEP71,NP70..DX,SE,SI,TBS,TOR,XL198804-198912

main44313-22080iEP71,NP70..DX,SE,SI,TBS,TOR,XL198804-198912

44324AHOUSING, PUMP, REAR

main44324-10010iEP71..DX,SE,SI,XL198410-198912

main44324-12031iEP71,NP70..DSL,TBO198601-198912

44326RING, CAM(FOR VANE PUMP)

main44325-12060iEP71..DX,SE,XL198410-198912

main44325-12070iEP71..DX,SE,SI,XL198410-198912

main44325-12080iEP71..DX,SE,XL198410-198912

main44325-12090iEP71..DX,SE,SI,XL198410-198912

main44325-12100iEP71..DX,SE,SI,XL198410-198912

main44325-12110iEP71,NP70..DSL,TBO198601-198912

main44325-12120iEP71,NP70..DSL,TBO198601-198912

main44325-12130iEP71,NP70..DSL,TBO198601-198912

main44325-12140iEP71,NP70..DSL,TBO198601-198912

main44325-12150iEP71,NP70..DSL,TBO198601-198912

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iEP71,NP70..DSL,TBO198601-198912

main90250-04049iEP71,NP70..DSL,TBO198601-198912

main90250-05008iEP71..DX,SE,XL198410-198912

main90250-05017iEP71..DX,SE,XL198410-198912

44330VALVE ASSY, FLOW CONTROL

main44330-12070iEP71..DX,SE,SI,XL198410-198906

sub44330-12071

main44330-12080iEP71..SI198410-198906

sub44330-12081

main44330-12081iEP71..DX,XL198906-198912

main44330-12090iEP71..SI198410-198906

sub44330-12091

main44330-12091iEP71..SI198906-198912

main44330-12100iEP71..DX,SE,SI,XL198410-198906

sub44330-12101

main44330-12101iEP71..SI198906-198912

main44330-12110iEP71..DX,SE,XL198410-198906

sub44330-12111

main44330-12111iEP71..SI198906-198912

main44330-12120iEP71..SI198410-198906

sub44330-12121

main44330-12121iEP71..SI198906-198912

main44330-14010iEP71,NP70..DSL,TBO198810-198906

sub44330-20010

main44330-14020iEP71,NP70..DSL,TBO198810-198906

sub44330-20020

main44330-14030iEP71,NP70..DSL,TBO198810-198906

sub44330-20030

main44330-14040iEP71,NP70..DSL,TBO198810-198906

sub44330-20040

main44330-14050iEP71,NP70..DSL,TBO198810-198906

sub44330-20050

main44330-14060iEP71,NP70..DSL,TBO198810-198906

sub44330-20060

main44330-16130iEP71..DX,XL198601-198906

sub44330-16131

main44330-16131iEP71..DX,XL198906-198912

main44330-16140iEP71..DX,XL198601-198906

sub44330-16141

main44330-16141iEP71..DX,XL198906-198912

main44330-16150iEP71..DX,XL198601-198906

sub44330-16151

main44330-16151iEP71..DX,XL198906-198912

main44330-16160iEP71..DX,XL198601-198906

sub44330-16161

main44330-16161iEP71..DX,XL198906-198912

main44330-16170iEP71..DX,XL198601-198906

sub44330-16171

main44330-16171iEP71..DX,XL198906-198912

main44330-16180iEP71..DX,XL198601-198906

sub44330-16181

main44330-16181iEP71..DX,XL198906-198912

main44330-20010iEP71,NP70..DSL,TBO198906-198912

sub44330-35191

main44330-20020iEP71,NP70..DSL,TBO198906-198912

sub44330-35201

main44330-20030iEP71,NP70..DSL,TBO198906-198912

sub44330-35211

main44330-20040iEP71,NP70..DSL,TBO198906-198912

sub44330-35221

main44330-20050iEP71,NP70..DSL,TBO198906-198912

sub44330-35231

main44330-20060iEP71,NP70..DSL,TBO198906-198912

sub44330-35241

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iEP71..DX,SE,TBS,TOR,XL198507-198912

main90501-12447iEP71..DX,SE,XL198410-198507

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iEP71,NP70..DSL,TBO198601-198912

main96151-02200iEP71..DX,SE,XL198410-198912

44337UNION, POWER STEERING SUCTION PORT

main44337-10010iEP71..DX,SE,XL198410-198612

main44337-10020iEP71..TBO198601-198912

main44337-10030iEP71..DX,SE,SI,XL198612-198912

main44337-10040iNP70198612-198912

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-12003iEP71,NP70..DSL,TBO198601-198912

sub90301-11016

main96711-19013iEP71..DX,SE,SI,XL198410-198912

44338UNION, PRESSURE PORT

main44308-12042iEP71,NP70..DSL,TBO198601-198912

main44308-32011iEP71..DX,SE,XL198410-198507

main44308-32013iEP71..DX,SE,XL198507-198912

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iEP71,NP70..DSL,TBO198612-198912

sub90301-19013

main90301-22001iEP71..DX,SE,XL198410-198912

main96711-19014iEP71..DX,SE,XL198410-198912

44341PLATE, VANE PUMP SIDE, FRONT

main44341-12020iEP71..DX,SE,XL198410-198804

sub44341-30030

main44341-12030iEP71,NP70..DSL,TBO198601-198804

sub44341-32010

main44341-30030iEP71..DX,SE,SI,XL198804-198912

main44341-32010iEP71,NP70..DSL,TBO198804-198912

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-21001iEP71..DX,SE,SI,XL198410-198912

INNER

main90301-25001iEP71,NP70..DSL,TBO198601-198912

INNER

sub90301-25008

main90301-52001iEP71,NP70..DSL,TBO198601-198912

OUTER

main90301-56002iEP71..DX,SE,SI,XL198410-198912

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44342-12021iEP71,NP70..DSL,TBO198601-198804

sub44342-32010

main44342-22010iEP71..DX,SE,XL198410-198804

sub44342-30020

main44342-30020iEP71..DX,SE,SI,XL198804-198912

main44342-32010iEP71,NP70..DSL,TBO198804-198912

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-13004iEP71..DX,SE,XL198410-198912

INNER

main90301-30004iEP71..DX,SE,SI,XL198410-198912

OUTER

main90301-52001iEP71,NP70..DSL,TBO198601-198912

44343SEAT, FLOW CONTROL SPRING

main44343-12010iEP71,NP70..DSL,TBO198601-198912

main44343-12030iEP71..DX,SE,XL198410-198912

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iEP71,NP70..DSL,TBO198601-198912

main96711-19019iEP71..DX,SE,XL198410-198912

44348PLATE, VANE PUMP

main44345-12010iEP71..DX,SE,TBS,TOR,XL198410-198912

main44345-12020iEP71,NP70..DX,SE,SI,TBS,TOR,XL198410-198912

main44345-12030iEP71,NP70..DX,SE,SI,TBS,TOR,XL198410-198912

main44345-12040iEP71..DX,SE,TBS,TOR,XL198410-198912

main44345-12050iEP71..DX,SE,TBS,TOR,XL198410-198912

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-10010iEP71..DX,SE,XL198410-198412

sub44360-10011

sub90949-01225

main44360-10011iEP71..DX,SE,XL198412-198912

main44360-10020iEP71..SI,TBS,TOR198601-198912

main44360-10030iNP70198612-198912

44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)

main90540-09004iEP71..DX,SE,TBS,TOR,XL198410-198912

44362DSPACER(FOR VANE PUMP OIL RESERVOIR)

main90560-06014iEP71..DX,SE,TBS,TOR,XL198410-198912

NO.1

main90561-06008iEP71..SI,TBS,TOR198601-198912

NO.2

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-14010iEP71,NP70..DX,SE,SI,TBS,TOR,XL198612-198912

main44391-30020iEP71..DX,SE,TBS,TOR,XL198410-198612

4503

9011906089

main90119-06089

9011910072

main90119-10072

9017912022

main90179-12022

9020630001

main90206-30001

9161160814

main91611-60814

9161161016

main91611-61016

39 parts on this diagram · 4 diagrams in section
