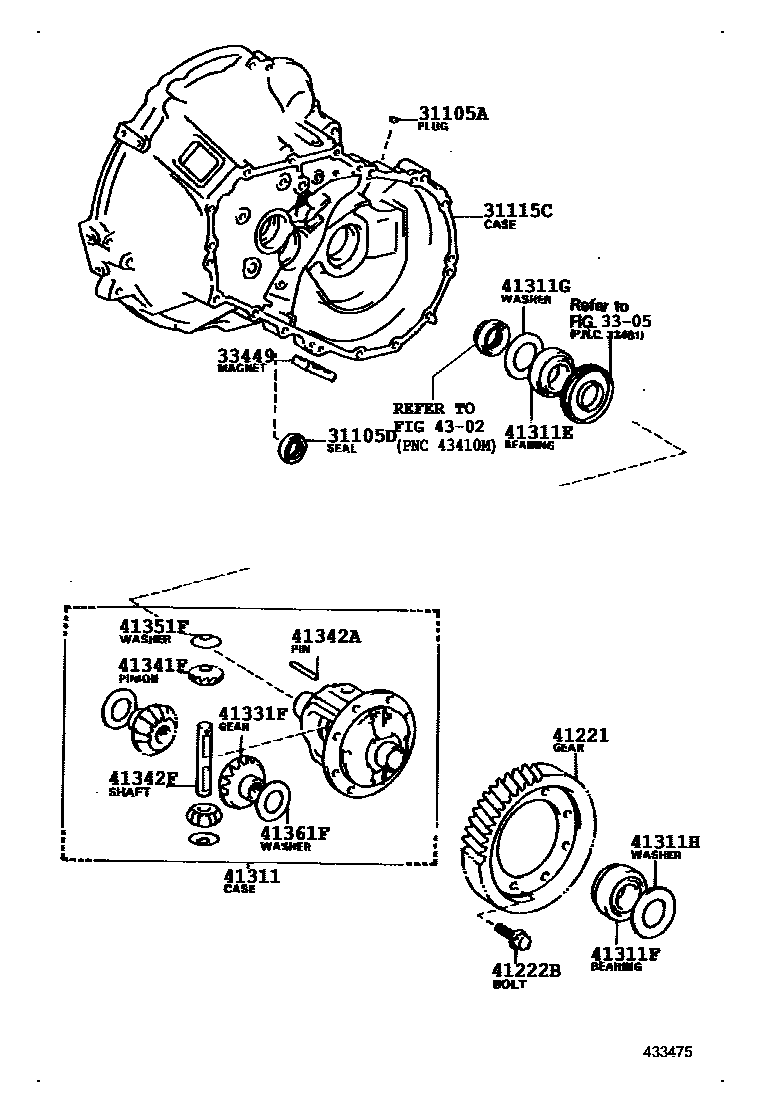

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iEP7#,NP7#..MTM198410-198912

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iEP7#,NP7#..MTM198410-198708

sub90311-25028

main90311-25016iEP7#,NP7#..MTM198708-198912

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-10010iEP7#..MTM198410-198608

sub33134-12021

sub90560-48001

main31115-10011iEP7#..MTM198608-198704

sub11355-10011

sub91611-61025

main31115-12022iNP7#..5F198612-198704

sub11355-55012

sub11361-16020

sub90105-10051

sub91611-61025

main31115-12040iNP7#..5F198704-198912

sub31115-16040

sub33125-12011

main31115-12060iEP7#..MTM198704-198912

sub31115-16050

sub33125-12011

3305

33449MAGNET, TRANSMISSION

main33449-12010iEP7#,NP7#..MTM198410-198912

sub33449-12020

41221GEAR, FRONT DIFFERENTIAL RING

main41221-10181iEP71,NP70..MTM..(CBR,DSL)198410-198912

*AXC=-672

sub41221-52290

main41221-10191iEP71..3D..4F..DX198410-198912

*AXC=-682

main41221-10201iEP71..5F..TBO198601-198912

sub41221-52300

main41221-10211iEP71..5F..EFI198410-198912

sub41221-52310

main41221-12190iEP71,NP70..4FC..(DSL,TBO)198601-198912

main41221-12210iEP71..3FC198410-198912

sub41221-12360

main41221-20230iEP71..4FC..EFI198612-198912

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353×8iEP71,NP70..ATM198410-198912

main90105-12100×6iEP7#,NP7#..MTM198410-198912

41311CASE, FRONT DIFFERENTIAL

main41301-10060iEP7#,NP7#..MTM198410-198912

sub41301-10061

main41301-12050iEP71..3FC198410-198912

sub41301-12051

main41301-12060iEP71..4FC198601-198603

main41301-12090iEP71..4FC198603-198608

main41301-17020iEP71,NP70..4FC198608-198912

sub41301-17021

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38004iEP7#,NP7#..MTM198608-198912

main90368-38006iEP7#198410-198608

sub90368-38002

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90368-38006iEP71..3FC198410-198912

sub90368-38002

main90368-38010iEP7#,NP7#..MTM198410-198912

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41002iEP71..3FC198410-198912

main90201-41003iEP71..3FC198410-198912

main90201-41004iEP71..3FC198410-198912

main90201-41005iEP71..3FC198410-198912

main90201-41006iEP71..3FC198410-198912

main90201-41007iEP71..3FC198410-198912

main90201-41008iEP71..3FC198410-198912

main90201-41009iEP71..3FC198410-198912

main90201-41010iEP71..3FC198410-198912

main90201-41011iEP71..3FC198410-198912

main90201-41012iEP71..3FC198410-198912

main90201-41013iEP71..3FC198410-198912

main90201-41014iEP71..3FC198410-198912

main90201-41015iEP71..3FC198410-198912

main90201-41016iEP71..3FC198410-198912

main90201-41017iEP71..3FC198410-198912

main90201-41018iEP71..3FC198410-198912

main90201-41019iEP71..3FC198410-198912

main90201-41020iEP71..3FC198410-198912

main90201-41021iEP71..3FC198410-198912

main90201-41022iEP71..3FC198410-198912

main90201-41023iEP71..3FC198410-198912

main90201-41045iEP7#,NP7#..MTM198410-198912

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41012iEP71..3FC198410-198912

main90201-41024iEP71,NP70..4FC198601-198912

main90201-41025iEP71,NP70..4FC198601-198912

main90201-41026iEP71,NP70..4FC198601-198912

main90201-41027iEP71,NP70..4FC198601-198912

main90201-41028iEP71,NP70..4FC198601-198912

main90201-41029iEP71,NP70..4FC198601-198912

main90201-41030iEP71,NP70..4FC198601-198912

main90201-41031iEP71,NP70..4FC198601-198912

main90201-41032iEP71,NP70..4FC198601-198912

main90201-41033iEP71,NP70..4FC198601-198912

main90201-41034iEP71,NP70..4FC198601-198912

main90201-41035iEP71,NP70..4FC198601-198912

main90201-41036iEP71,NP70..4FC198601-198912

main90201-41039iEP71,NP70..4FC198601-198912

main90201-41040iEP71,NP70..4FC198601-198912

main90201-41041iEP71,NP70..4FC198601-198912

main90201-41042iEP71,NP70..4FC198601-198912

main90201-41043iEP71,NP70..4FC198601-198912

main90201-41044iEP71,NP70..4FC198601-198912

main90201-41046iEP7#,NP7#..MTM198410-198912

sub90564-41014

main90201-41047iEP7#,NP7#..MTM198410-198912

sub90564-41015

main90201-41048iEP7#,NP7#..MTM198410-198912

sub90564-41016

main90201-41049iEP7#,NP7#..MTM198410-198912

sub90564-41017

main90201-41050iEP7#,NP7#..MTM198410-198912

sub90564-41018

main90201-41051iEP7#,NP7#..MTM198410-198912

sub90564-41019

main90201-41052iEP7#,NP7#..MTM198410-198912

sub90564-41020

main90201-41053iEP7#,NP7#..MTM198410-198912

sub90564-41021

main90201-41054iEP7#,NP7#..MTM198410-198912

sub90564-41022

main90201-41055iEP7#,NP7#..MTM198410-198912

sub90564-41023

main90201-41056iEP7#,NP7#..MTM198410-198912

sub90564-41024

main90201-41057iEP7#,NP7#..MTM198410-198912

sub90564-41025

main90201-41058iEP7#,NP7#..MTM198410-198912

sub90564-41026

main90201-41059iEP7#,NP7#..MTM198410-198912

sub90564-41027

main90201-41060iEP7#,NP7#..MTM198410-198912

sub90564-41028

main90201-41061iEP7#,NP7#..MTM198410-198912

sub90564-41029

main90201-41062iEP7#,NP7#..MTM198410-198912

sub90564-41030

main90201-41063iEP7#,NP7#..MTM198410-198912

sub90564-41031

main90201-41064iEP7#,NP7#..MTM198410-198912

sub90564-41032

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-10040×2iEP7#..MTM198410-198601

main41331-10042×2iEP7#,NP7#..MTM198601-198912

sub41331-44011

sub41331-48060

main41331-12011×2iEP71,NP70..ATM198410-198912

41341FPINION, FRONT DIFFERENTIAL

main41341-10030×2iEP7#,NP7#..MTM198601-198912

sub41341-44011

sub41341-48050

main41341-12030×2iEP71,NP70..ATM198410-198912

main41341-20011×2iEP7#..MTM198410-198601

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-04053iEP7#,NP7#..MTM198410-198912

main90250-06058iEP71,NP70..ATM198410-198912

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-10040iEP7#,NP7#..MTM198410-198912

sub41342-10041

main41342-12020iEP71,NP70..ATM198410-198912

sub41342-12140

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-10030×2iEP7#,NP7#..MTM198601-198912

main41351-12010×2iEP7#..MTM198410-198601

main41351-12020×2iEP71,NP70..ATM198410-198912

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-10070×2iEP7#,NP7#..MTM198410-198912

main41361-10080×2iEP7#,NP7#..MTM198410-198912

main41361-10090×2iEP7#,NP7#..MTM198410-198912

main41361-10100×2iEP7#,NP7#..MTM198410-198912

main41361-10110×2iEP7#,NP7#..MTM198410-198912

main41361-10120×2iEP7#,NP7#..MTM198410-198912

main41361-17010×2iEP71,NP70..4FC198608-198912

main41361-17020×2iEP71,NP70..4FC198608-198912

main41361-17030×2iEP71,NP70..4FC198608-198912

main41361-17040×2iEP71,NP70..4FC198608-198912

main41361-17050×2iEP71,NP70..4FC198608-198912

main41361-17060×2iEP71,NP70..4FC198608-198912

main41361-22020×2iEP71..ATM198410-198608

main41361-22030×2iEP71..3FC198608-198912

main41361-22040×2iEP71..ATM198410-198608

main41361-22140×2iEP71..ATM198410-198608

main41361-22150×2iEP71..ATM198410-198608

main41361-22160×2iEP71..3FC198608-198912

4302

19 parts on this diagram · 3 diagrams in section
