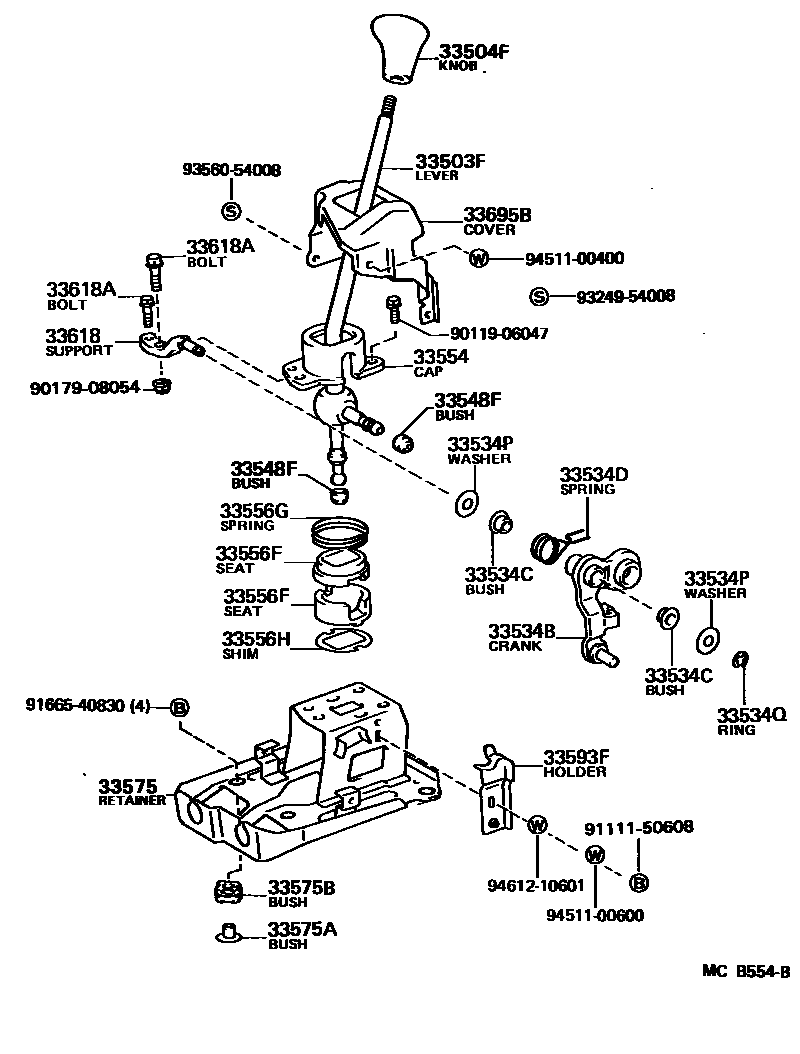

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-10080iEP7#..MTM..CBR198410-198612

main33503-10100iEP71..3FC198410-198912

main33503-10110iEP71,NP70..4FC198601-198912

main33503-10120iEP71..5F..(EFI,TBO)198601-198612

TSUDA

main33503-10130iEP71..5F..(EFI,TBO)198601-198612

MANNOU

sub33503-10120

main33503-16150iEP71..5F..(EFI,TBO)198612-198912

main33503-16170iEP7#,NP7#..MTM..(CBR,DSL)198612-198912

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-10050-01iEP71..5F..TBO198601-198712

BLACK,BLACK,TRIM1#

sub33504-10050

sub33504-24010

main33504-12150-16iEP71..TBS198708-198709

sub33504-12150

sub33504-22140

main33504-12150-16iEP71..3D..5F..TBS198708-198912

TURBO S LIMITED,BLACK,BLACK/ORANGE,TRIM1#

sub33504-12150

sub33504-22140

main33504-12160-16iEP71..3D..5F..TBS198701-198708

TURBO S LIMITED,BLACK,BLACK/ORANGE,TRIM1#

main33504-12160-16iEP71..TBS198701-198703

main33504-14040-01iEP7#..4F198410-198912

BLACK,BLACK,TRIM1#,8#

sub33504-14040

main33504-14040-04iEP71..4F..(SE,XL)198410-198603

BLUE,BLUE,TRIM8#

sub33504-14040

main33504-14040-04iEP76..CD198410-198612

CD-L,BLUE,BLUE,TRIM8#

sub33504-14040

main33504-14040-26iEP71..4F..(SE,XL)198612-198912

BROWN,BROWN,TRIM4#

sub33504-14040

main33504-14040-44iEP71..4F..(SE,XL)198603-198612

BLUE,BLUE,TRIM8#

sub33504-14040

main33504-14050-01iEP71..EFI198410-198601

BLACK,BLACK,TRIM1#

sub33504-14050

sub33504-14070

main33504-14050-01iEP71,NP70..5F..(CBR,DSL)198410-198912

BLACK,BLACK,TRIM1#,8#

sub33504-14050

sub33504-14070

main33504-14050-04iEP71..5F..CBR198410-198605

BLUE,BLUE,TRIM8#

sub33504-14050

sub33504-14070

main33504-14050-54iEP71..5F..CBR198605-198612

BLUE,BLUE,TRIM8#

sub33504-14050

sub33504-14070

main33504-14070-36iEP71,NP70..5F..(SE,XL)198612-198912

BROWN,BROWN,TRIM4#

sub33504-14070

sub33504-14050

main33504-24010-01iEP71..5F..EFI198601-198912

BLACK,BLACK,TRIM1#

sub33504-24010

main33504-24020-01iEP71..5F..TBO198712-198912

BLACK,BLACK,TRIM1#

sub33504-24020

sub33504-22140

main33542-10020-01iEP71..3FC..SE198410-198912

BLACK,BLACK,TRIM1#

sub33542-10020

main33542-10020-04iEP71..3FC..SE198410-198605

BLUE,BLUE,TRIM8#

sub33542-10020

main33542-10020-06iEP71..3FC..SE198612-198912

BROWN,BROWN,TRIM4#

sub33542-10020

main33542-10020-34iEP71..3FC..SE198605-198612

BLUE,BLUE,TRIM8#

sub33542-10020

main33542-12110-01iEP71..3FC..(DX,XL)198410-198912

BLACK,BLACK,TRIM1#,8#

sub33542-12110

main33542-12110-04iEP71..3FC..XL198410-198603

BLUE,BLUE,TRIM8#

sub33542-12110

main33542-12110-06iEP71..3FC..XL198612-198912

BROWN,BROWN,TRIM4#

sub33542-12110

main33542-12110-22iEP71..3FC..XL198410-198612

LISSE,MAROON,MAROON,TRIM3#

sub33542-12110

main33542-12110-44iEP71..3FC..XL198603-198612

BLUE,BLUE,TRIM8#

sub33542-12110

main33542-32040-01iEP71,NP70..4FC198601-198912

BLACK,BLACK,TRIM1#

sub33542-32040

main33542-32040-06iNP70..4FC..(SE,XL)198612-198912

BROWN,BROWN,TRIM4#

sub33542-32040

33534BCRANK, SELECTING BELL, NO.1

main33509-12040iEP7#..MTM198410-198411

sub33509-12050

main33509-12050iEP7#..MTM198411-198612

main33509-16010iEP7#,NP7#..MTM198612-198912

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12013iEP7#,NP7#..MTM198410-198912

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-20062iEP7#..MTM198410-198612

main90508-20083iEP7#,NP7#..MTM198612-198912

33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

main90201-12029iEP7#..MTM198410-198612

33534QRING, E (FOR SELECTING BELLCRANK NO.1)

main96160-00900iEP7#..MTM198410-198612

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iEP7#,NP7#..MTM198410-198912

33554CAP, SHIFT LEVER

main33554-12040iEP7#..MTM198410-198612

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-12020iEP7#..MTM198410-198612

LWR

main33556-12030iEP7#..MTM198410-198612

UPR

main33556-16030iEP7#,NP7#..MTM198612-198912

33556GSPRING (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90561-35001iEP7#..MTM198410-198612

33556HSHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90564-30003iEP7#..MTM198410-198612

main90564-30004iEP7#..MTM198410-198612

main90564-30005iEP7#..MTM198410-198612

main90564-30006iEP7#..MTM198410-198612

main90564-30007iEP7#..MTM198410-198612

main90564-30008iEP7#..MTM198410-198612

main90564-30009iEP7#..MTM198410-198612

main90564-30010iEP7#..MTM198410-198612

main90564-30011iEP7#..MTM198410-198612

main90564-30012iEP7#..MTM198410-198612

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-10040iEP7#..MTM198410-198612

33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-08031iEP7#,NP7#..MTM198410-198912

33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-10018iEP7#,NP7#..MTM198410-198912

33593FHOLDER, SPRING (FOR FLOOR SHIFT)

main33593-12020iEP7#..MTM198410-198612

33618SUPPORT, SELECTING BELLCRANK, NO.1

main33618-12040iEP7#..MTM198410-198612

33618ABOLT (FOR SELECTING BELLCRANK SUPPORT)

main90105-08078iEP7#..MTM198410-198612

main90119-06268iEP7#..MTM198410-198612

33695BCOVER, SELECTING SPRING (FOR FLOOR SHIFT)

main33695-10010iEP7#..MTM..(CBR,EFI)198410-198612

main33695-16020iEP7#,NP7#..MTM..(CBR,DSL)198612-198912

9011906047

main90119-06047

9017908054

main90179-08054

9111150608

main91111-50608

9166540830

main91665-40830

9324954008

main93249-54008

9356054008

main93560-54008

9451100400

main94511-00400

9451100600

main94511-00600

9461210601

main94612-10601

28 parts on this diagram · 6 diagrams in section
