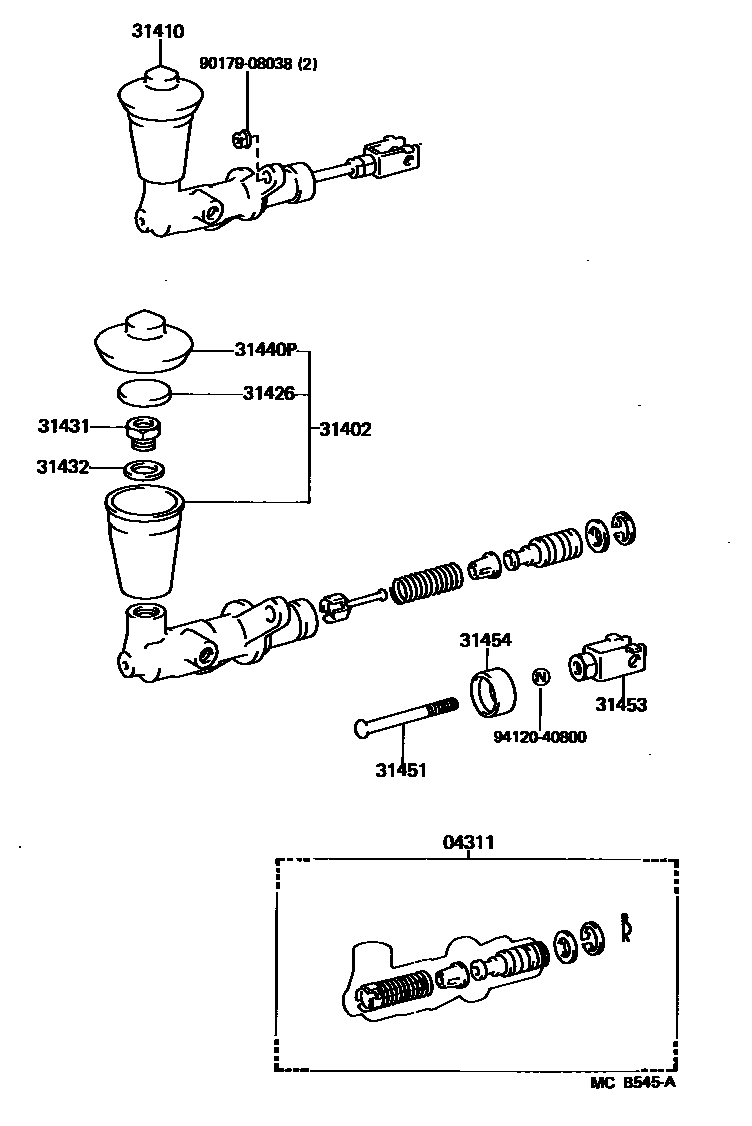

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14030iEP7#..MTM198609-198701

sub04311-14031

main04311-14040iEP7#,NP7#..MTM198701-198704

sub04311-14041

main04311-14041iEP7#,NP7#..MTM198704-198912

sub04311-22050

main04311-17030iEP7#..MTM198410-198609

sub04311-17031

main04311-22030iNP7#..5F198612-198701

sub04311-14030

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30060iEP7#,NP7#..MTM198410-198912

sub31402-30061

sub47231-20010

31410CYLINDER ASSY, CLUTCH MASTER

main31410-10010iEP7#..MTM198410-198701

sub31410-10011

main31410-10011iEP7#..MTM198701-198704

sub31410-10012

main31410-10012iEP7#..MTM198704-198808

sub31410-10013

main31410-10013iEP7#..MTM198808-198912

main31410-10020iNP7#..5F198612-198701

sub31410-10021

main31410-10021iNP7#..5F198701-198704

sub31410-10022

main31410-10022iNP7#..5F198704-198808

sub31410-10023

main31410-10023iNP7#..5F198808-198912

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iEP7#,NP7#..MTM198410-198912

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iEP7#,NP7#..MTM198410-198912

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iEP7#,NP7#..MTM198410-198912

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iEP7#,NP7#..MTM198410-198912

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iEP7#..MTM198410-198609

main31451-22060iEP7#..MTM198609-198912

main31451-22070iNP7#..5F198612-198912

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-16011iNP7#..5F198912-198907

sub31404-16012

main31404-16012iNP7#..5F198907-198912

sub31404-22020

main31453-10010iEP7#..MTM198410-198605

sub31453-10020

main31453-10020iEP7#..MTM198605-198912

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iEP7#..MTM198410-198912

main31454-24010iNP7#..5F198612-198912

9017908038

main90179-08038

9412040800

main94120-40800

12 parts on this diagram · 1 diagram in section
