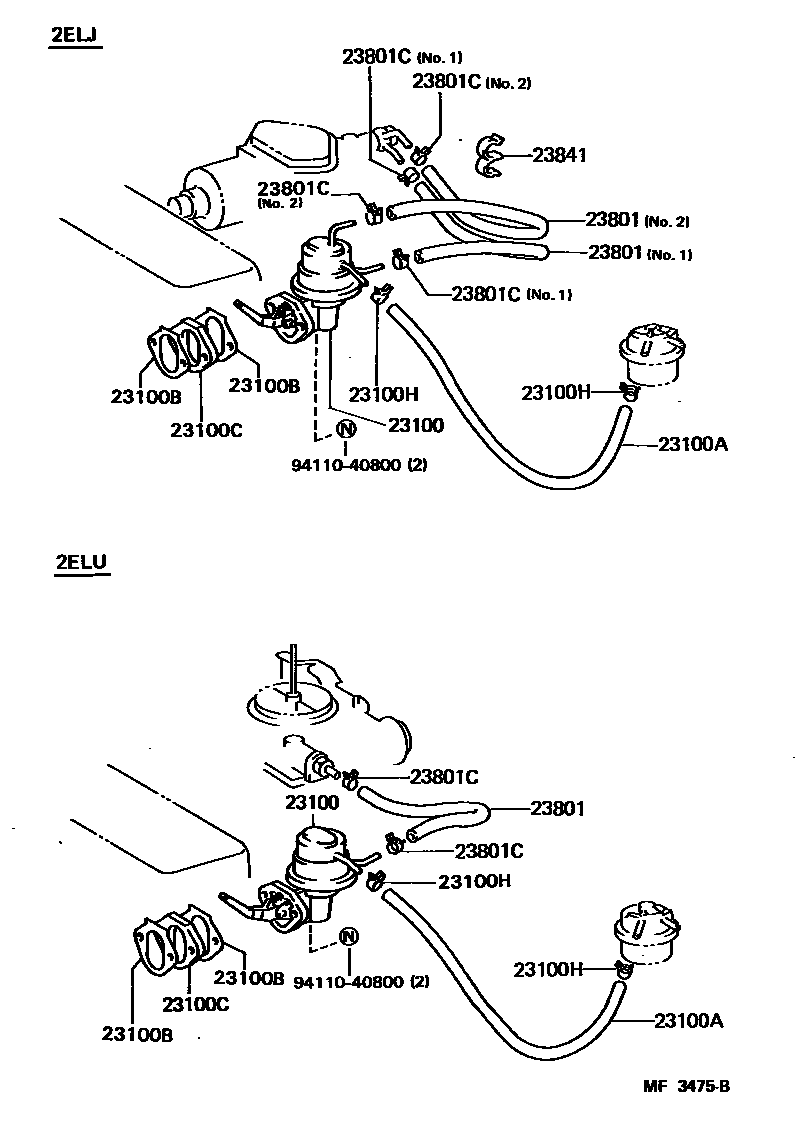

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-11030i2ELU..EP71198410-198705

main23100-11031i2ELU..EP71198705-198710

main23100-11032i2ELU..EP71198710-198807

main23100-11033i2ELU..EP71198807-198912

main23100-11040i2ELJ..EP76198410-198912

23100AHOSE, FUEL

main95332-06040i2EL#..EP7#198410-198606

*H,L=360

main95333-06036i2EL#..EP7#198606-198702

main95333-06040i2EL#..EP7#198702-198912

23100BGASKET, FUEL PUMP

main90923-05017×2i2EL#..EP7#198410-198912

sub90923-05024

23100CINSULATOR, FUEL PUMP

main23915-10020i2EL#..EP7#198410-198912

sub23915-10021

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i2EL#..EP7#198410-198912

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95332-04030i2ELJ..EP76198410-198606

main95332-06030i2EL#..EP7#198410-198701

main95333-04024i2ELJ..EP76198606-198702

main95333-04030i2ELJ..EP76198702-198912

main95333-06022i2EL#..EP7#198701-198702

main95333-06030i2EL#..EP7#198702-198912

sub95338-06030

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main90467-11009×2i2EL#..EP7#198707-198802

NO.1

sub96135-51100

main90467-11049×2i2EL#..EP7#198802-198912

NO.1

main96132-30400×2i2ELJ..EP76198410-198912

NO.2

sub96132-51000

main96132-30600×2i2EL#..EP7#198410-198707

NO.1

sub96132-51100

23841CLAMP, FUEL PIPE(HOSE), NO.1

main90464-00231i2ELJ..EP76198410-198912

9411040800

main94110-40800

9 parts on this diagram · 1 diagram in section
