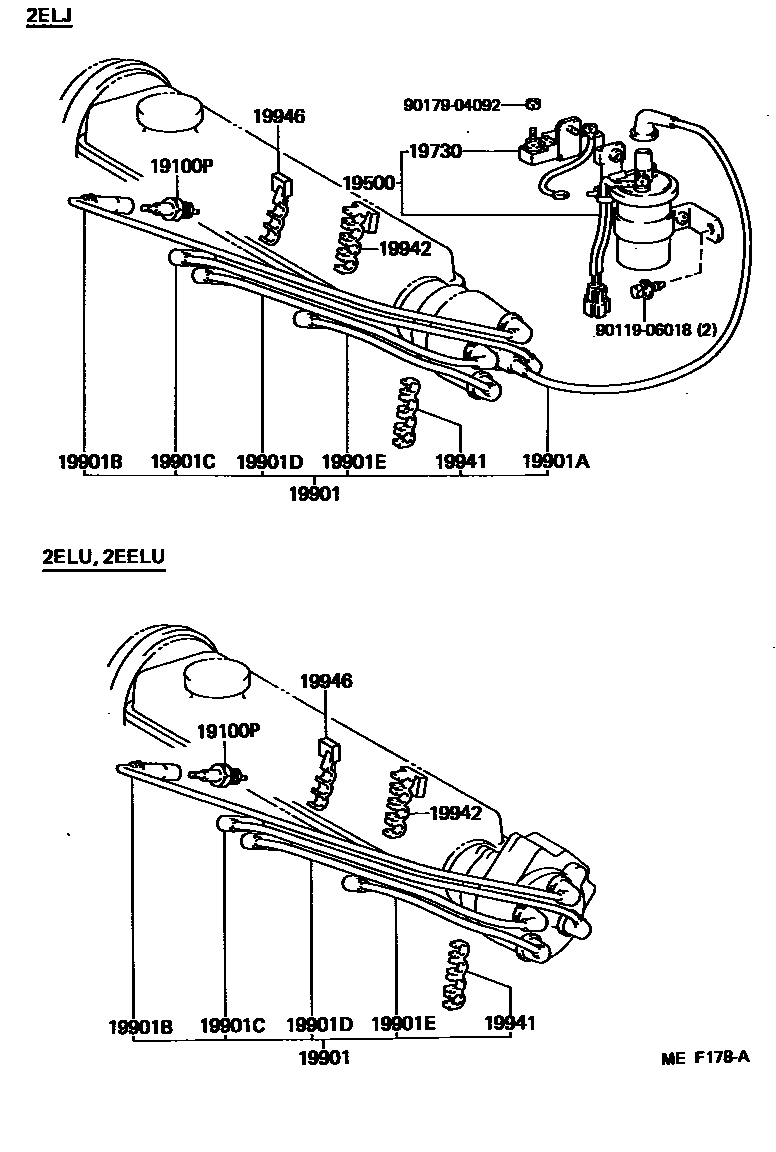

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19100PPLUG, SPARK

main90919-01083i2ELJ..EP76198503-198912

main90919-01094i2ELU..EP71198410-198912

main90919-01125i2ELU..EP71..3D..4F..DX198604-198912

main90919-01126i2ELU..EP71..3D..4F..DX198604-198912

main90919-01137i2ELJ..EP76198410-198503

W20EX-U(DENSO)

sub90919-01083

main90919-01139i2ELU..EP71198410-198604

W20EX-U11(DENSO)

main90919-01147i2ETELU..EP71198601-198912

main90919-01148i2ETELU..EP71198601-198912

19500COIL ASSY, IGNITION

main90919-02113i2ETELU..EP71198601-198912

main90919-02165i2ELJ..EP76198410-198912

19730RESISTOR, IGNITION COIL

main90919-04041i2ELJ..EP76198410-198912

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21360i2ELJ..EP76198410-198810

sub90919-21460

main90919-21382i2ETELU..EP71198601-198805

sub90919-21447

main90919-21447i2ETELU..EP71198805-198912

main90919-21460i2ELJ..EP76198810-198912

main90919-22158i2ELU..EP71198801-198912

main90919-22159i2ELU..EP71198410-198801

sub90919-22158

main90919-22160i2EELU..EP71198410-198805

sub90919-22245

main90919-22245i2EELU..EP71198805-198912

19901ACORD, COIL RESISTIVE

main90919-13236i2ELJ..EP76198410-198810

sub90919-13339

main90919-13257i2ETELU..EP71198601-198805

sub90919-13319

main90919-13319i2ETELU..EP71198805-198912

main90919-13339i2ELJ..EP76198810-198912

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12568i2EL#..EP7#198410-198912

SUMITOMO

main90919-12572i2EL#..EP7#198410-198810

YAZAKI

sub90919-12568

main90919-12576i2EELU..EP71198410-198805

SUMITOMO

sub90919-12908

main90919-12580i2EELU..EP71198410-198805

YAZAKI

sub90919-12908

main90919-12658i2ETELU..EP71198601-198805

sub90919-12913

main90919-12908i2EELU..EP71198805-198912

YAZAKI

main90919-12913i2ETELU..EP71198805-198912

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12569i2EL#..EP7#198410-198805

SUMITOMO

sub90919-12775

main90919-12573i2EL#..EP7#198410-198801

YAZAKI

sub90919-12569

main90919-12577i2EELU..EP71198410-198805

SUMITOMO

sub90919-12909

main90919-12581i2EELU..EP71198410-198805

YAZAKI

sub90919-12909

main90919-12659i2ETELU..EP71198601-198805

sub90919-12914

main90919-12775i2EL#..EP7#198805-198912

main90919-12909i2EELU..EP71198805-198912

YAZAKI

main90919-12914i2ETELU..EP71198805-198912

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12570i2EL#..EP7#198410-198805

SUMITOMO

sub90919-12776

main90919-12574i2EL#..EP7#198410-198801

YAZAKI

sub90919-12570

main90919-12578i2EELU..EP71198410-198805

SUMITOMO

sub90919-12910

main90919-12582i2EELU..EP71198410-198805

YAZAKI

sub90919-12910

main90919-12660i2ETELU..EP71198601-198805

sub90919-12915

main90919-12776i2EL#..EP7#198805-198912

main90919-12910i2EELU..EP71198805-198912

YAZAKI

main90919-12915i2ETELU..EP71198805-198912

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12571i2EL#..EP7#198410-198805

SUMITOMO

sub90919-12777

main90919-12575i2EL#..EP7#198410-198801

YAZAKI

sub90919-12571

main90919-12579i2EELU..EP71198410-198805

SUMITOMO

sub90919-12911

main90919-12583i2EELU..EP71198410-198805

YAZAKI

sub90919-12911

main90919-12661i2ETELU..EP71198601-198805

sub90919-12916

main90919-12777i2EL#..EP7#198805-198912

main90919-12911i2EELU..EP71198805-198912

YAZAKI

main90919-12916i2ETELU..EP71198805-198912

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00358i2EELU,2EL#..EP7#198410-198912

main90464-00440i2ETELU..EP71198601-198912

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00372i2EELU,2EL#..EP7#198410-198912

main90929-01138i2ETELU..EP71198601-198912

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00404i2EELU..EP71..SI198612-198701

W/POWER STEERING

main90464-00404i2EL#..EP7#198410-198912

main90464-00439i2ETELU..EP71198601-198912

9011906018

main90119-06018

9017904092

main90179-04092

14 parts on this diagram · 3 diagrams in section
