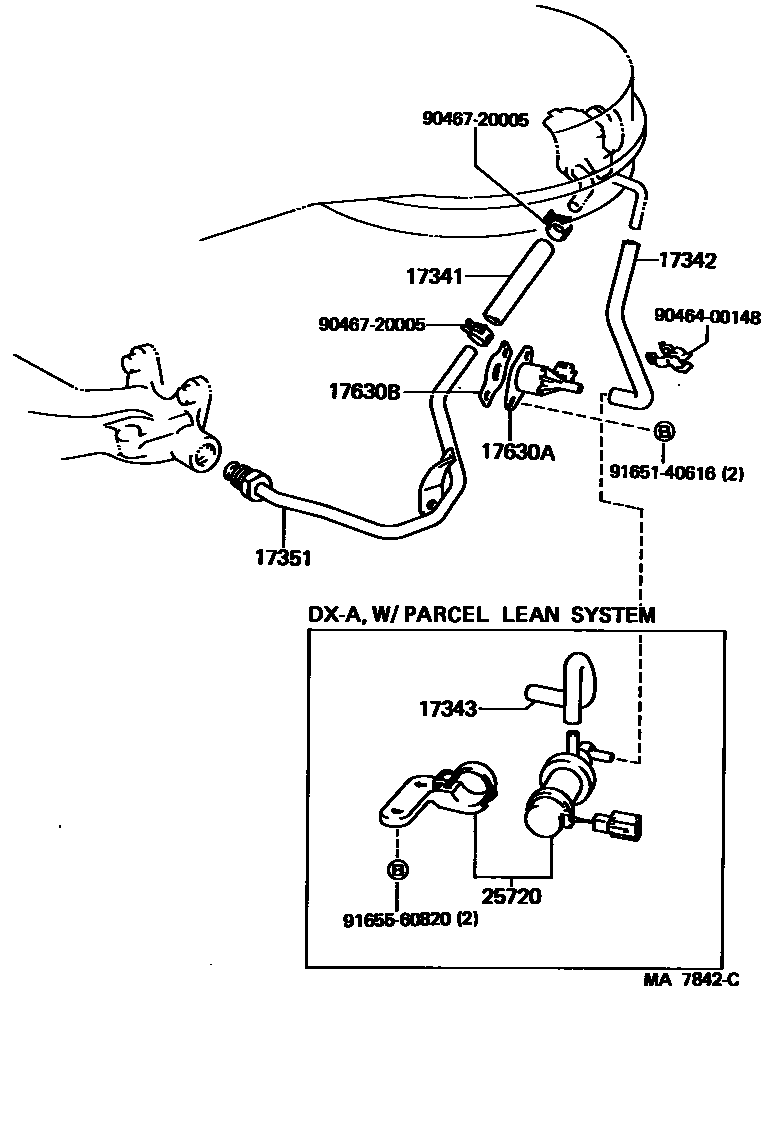

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-11020i2ELU..EP71¥1,360198410-198904

main17341-11021i2ELU..EP71¥880198904-198912

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-11010i2ELU..EP71¥1,280198410-198912

main17342-11020i2ELU..EP71..3D..4F..DX¥920198410-198912

*52

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-11010i2ELU..EP71..3D..4F..DX¥1,060198410-198912

*52

17351MANIFOLD, AIR INJECTION

main17306-11010i2ELU..EP71¥6,100198410-198912

17630AVALVE ASSY, AIR CONTROL

main17630-11010i2ELU..EP71¥10,100198410-198912

17630BGASKET, AIR CONTROL VALVE

main25717-11010i2ELU..EP71¥230198410-198912

25720VALVE ASSY, ELECTRIC AIR CONTROL

main25720-11010i2ELU..EP71..3D..4F..DX¥23,800198410-198912

*52

sub25720-11050¥23,800

9046400148

main90464-00148¥390

9046720005

main90467-20005¥220

9165140616

main91651-40616¥60

9165560820

main91655-60820¥170

11 parts on this diagram · 2 diagrams in section
