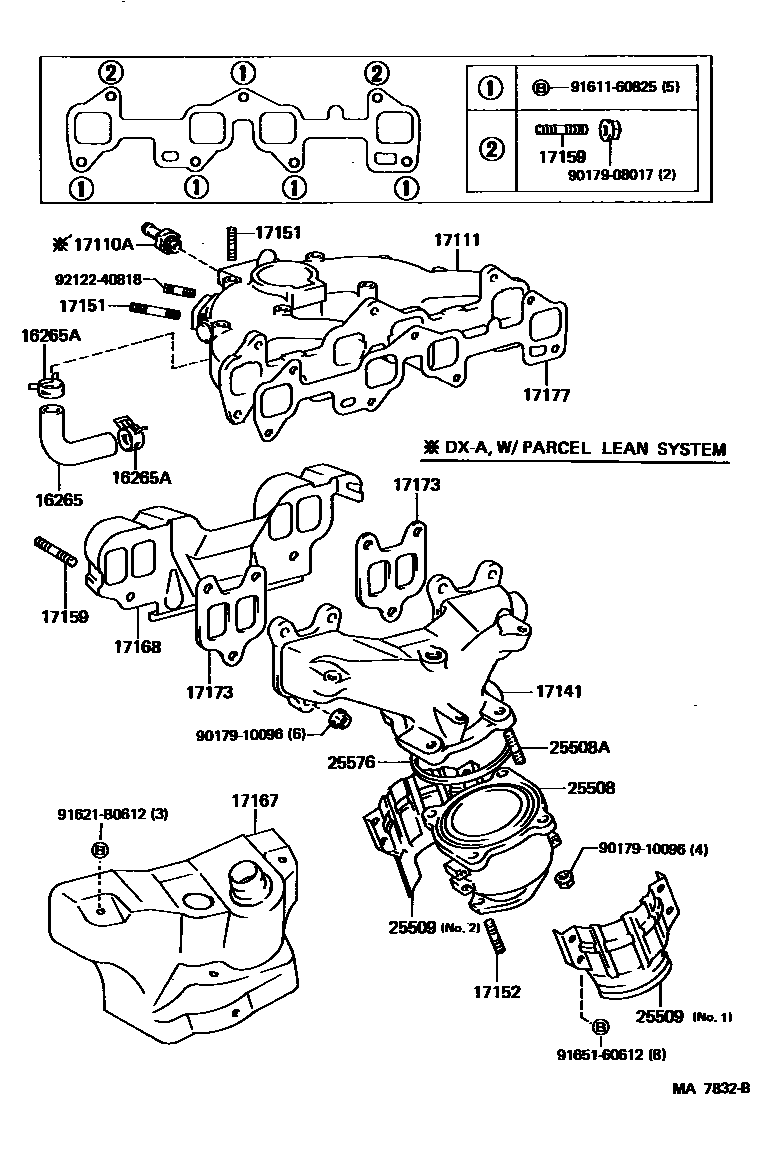

MANIFOLD
16265HOSE, INTAKE MANIFOLD WATER
16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
sub90467-21006
17110AUNION, VACUUM HOSE
*52
17141MANIFOLD, EXHAUST
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD SIDE
EXHAUST MANIFOLD SIDE
EXHAUST MANIFOLD
INTAKE MANIFOLD
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
COLD SPEC
25508CONVERTER SUB-ASSY, MANIFOLD
25508ABOLT, STUD(FOR MANIFOLD CONVERTER)
25509INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
NO.1
NO.1
NO.1
NO.2
NO.2
9017908017
main90179-08017
9017910096
main90179-10096
9161160825
main91611-60825
91621B0612
main91621-B0612
9165160612
main91651-60612
9212240818
main92122-40818
22 parts on this diagram · 6 diagrams in section
