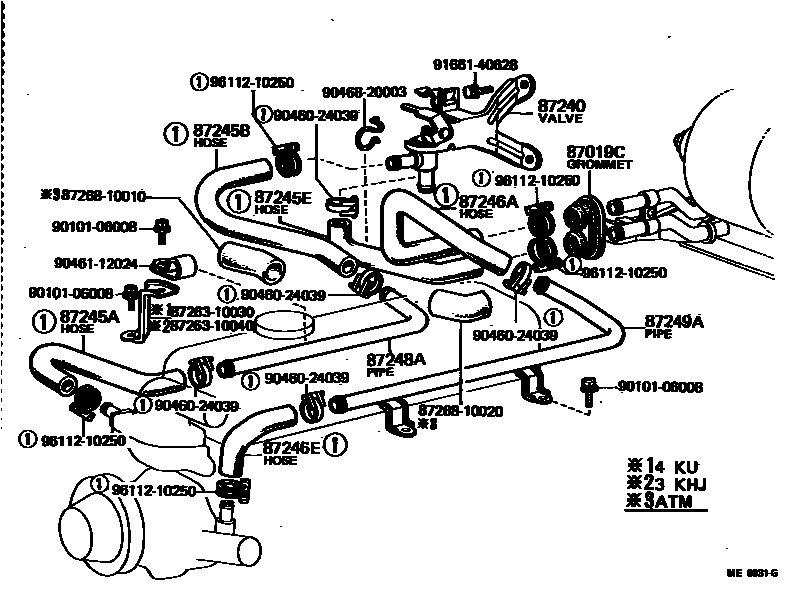

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87019CGROMMET, HEATER HOSE

main90480-01015iKP61198208-198409

main90480-01067iKP6#197802-198208

87240VALVE ASSY, HEATER WATER

main87240-10091iKP6#197802-198005

main87240-10092iKP6#198005-198208

main87240-10100iKP61198208-198409

87245AHOSE, HEATER WATER, INLET A

main87245-12261iKP6#197802-198108

main87245-12590iKP6#198108-198409

87245BHOSE, HEATER WATER, INLET B

main87245-10121iKP6#197902-198108

main87245-10122iKP6#198108-198208

main87245-10123iKP6#197802-197902

main87245-10210iKP61198208-198409

87245EHOSE, HEATER WATER, INLET E

main87245-10091iKP6#197802-198208

main87245-10170iKP61198208-198409

87246AHOSE, HEATER WATER, OUTLET A

main87245-10111iKP6#197902-198208

main87245-10112iKP6#197802-197902

main87245-10200iKP61..CBR198208-198409

main87245-10230iKP61..EFI198208-198409

87246EHOSE, HEATER WATER, OUTLET E

main87245-10100iKP6#197902-198208

main87245-10101iKP6#197802-197902

sub87245-10100

main87245-10190iKP61198208-198409

87248APIPE, HEATER WATER INLET, A

main87248-10091iKP6#197902-198108

main87248-10092iKP6#198108-198409

main87248-10093iKP6#197802-197902

87249APIPE, HEATER WATER OUTLET, A

main87248-10080iKP6#197902-198208

main87248-10081iKP6#197802-197902

8726310030BRACKET, HEATER WATER PIPE, NO.1

main87263-10030

8726310040BRACKET, HEATER WATER PIPE, NO.1

main87263-10040

8726810010COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-10010

8726810020COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-10020

9010106008

main90101-06008

9046024039

main90460-24039

9046112024

main90461-12024

9046820003

main90468-20003

9166140628

main91661-40628

9611210250

main96112-10250

19 parts on this diagram · 3 diagrams in section
