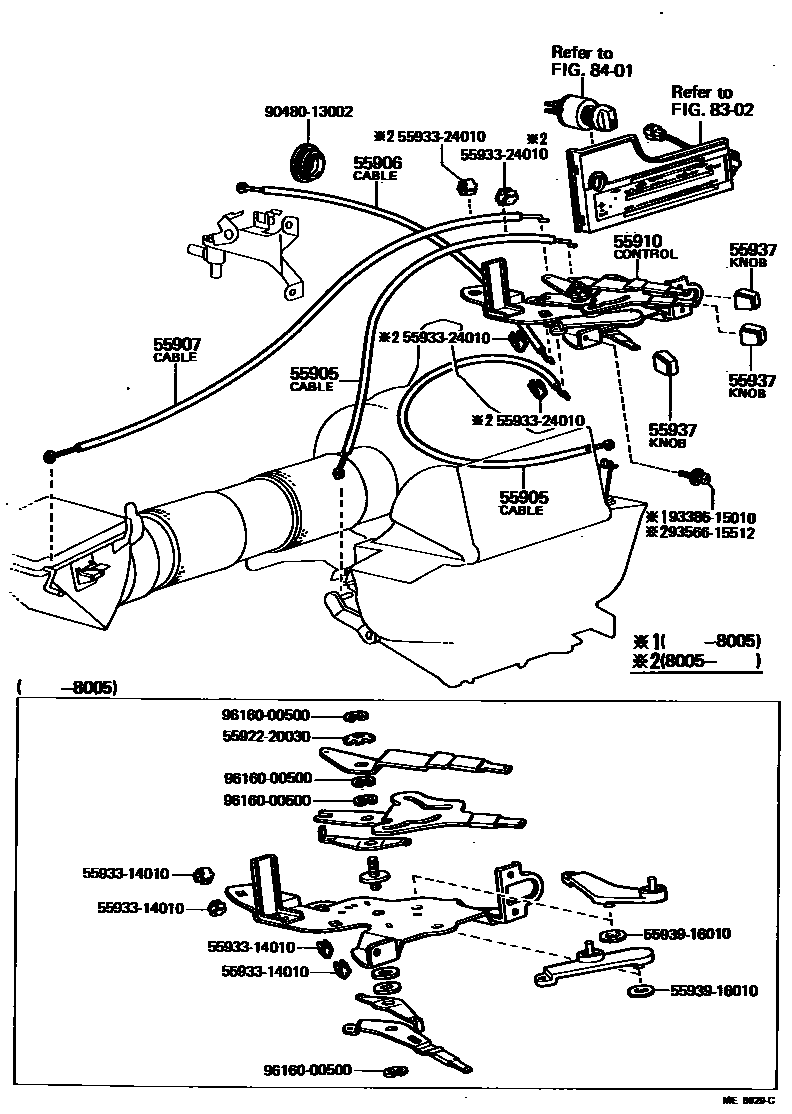

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0005 1

55905CABLE SUB-ASSY, DEFROST CONTROL

main55906-10100iKP6#197802-198005

L=560

main55906-10101iKP6#198005-198208

L=530

main55909-10030iKP6#197802-198005

L=670

main55909-10031iKP6#198005-198208

L=680

55906CABLE SUB-ASSY, HEATER CONTROL

main55907-10040iKP6#197802-198005

L=465

main55907-10041iKP6#198005-198208

L=480

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55908-10031iKP6#198005-198208

L=820

main55908-10040iKP6#197802-198005

L=790

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-10141iKP6#198005-198208

main55910-10190iKP61198208-198409

main55910-10920iKP6#197802-198005

55937KNOB, HEATER CONTROL LEVER

main55905-12060iKP61198208-198409

sub55905-12070

main55905-22050iKP6#197802-198208

8302

8401

5592220030BRACKET, HEATER CONTROL BASE

main55922-20030

5593314010GUIDE, LEVER, NO.2

main55933-14010

5593324010GUIDE, LEVER, NO.2

main55933-24010

5593916010ORNAMENT, HEATER CONTROL

main55939-16010

9048013002

main90480-13002

9338515010

main93385-15010

9356615512

main93566-15512

9616000500

main96160-00500

15 parts on this diagram · 5 diagrams in section
